BATTERY & BATTERY CABLE

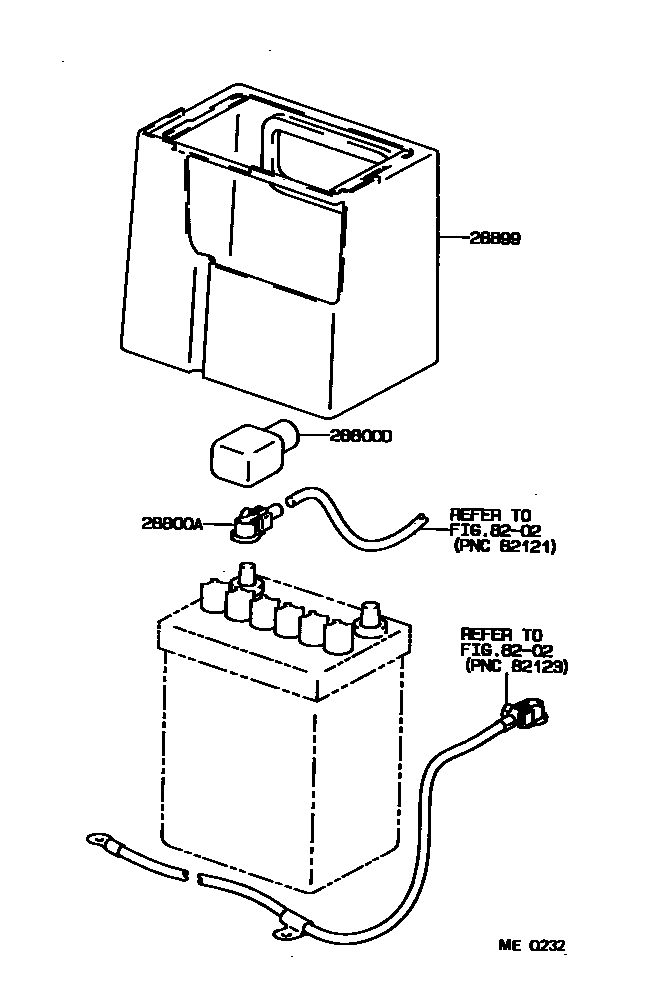

Parts diagram

28800ATERMINAL, BATTERY POSITIVE

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-10020i199003-199512

28899INSULATOR, BATTERY

main28899-11040i199003-199512

main28899-11060i199003-199512

8202WIRING & CLAMP

→ Go to FIG 82-02

4 parts on this diagram · 1 diagram in section
