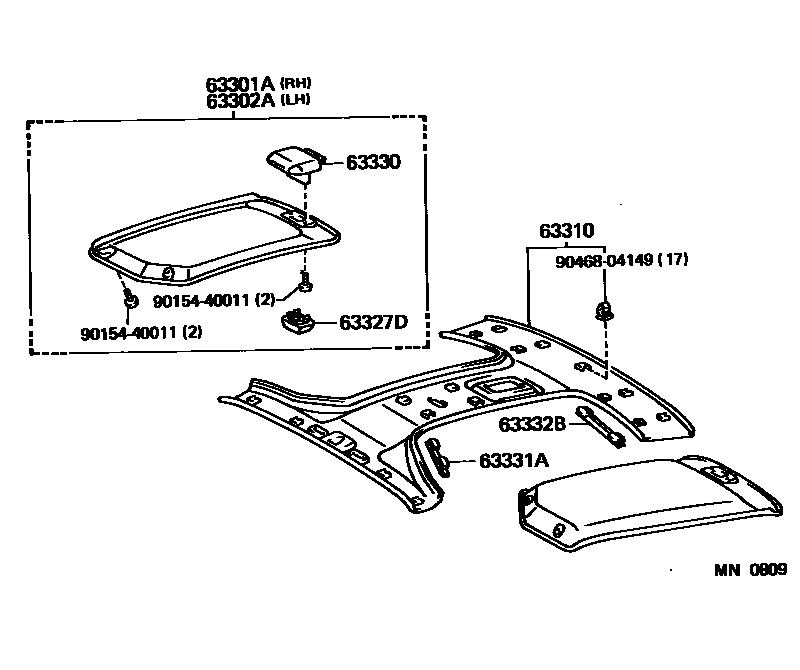

ROOF HEADLINING & SILENCER PAD

63301ATRIM SUB-ASSY, SUNSHADE, NO.1 RH

main63301-18010-03iEXY10199003-199206

BLUE GRAY,TRIM1#

main63301-18010-05iEXY10199003-199206

GREIGE,TRIM4#

main63301-18010-B0iEXY10199206-199512

LIGHT GRAY,TRIM1#

63302ATRIM SUB-ASSY, SUNSHADE, NO.1 LH

main63302-18010-03iEXY10199003-199206

BLUE GRAY,TRIM1#

main63302-18010-05iEXY10199003-199206

GREIGE,TRIM4#

main63302-18010-B0iEXY10199206-199512

LIGHT GRAY,TRIM1#

63310HEADLINING ASSY, ROOF

main63310-18010-03iEXY10199003-199206

BLUE GRAY,TRIM1#

main63310-18010-05iEXY10199003-199206

GREIGE,TRIM4#

main63310-18010-B0iEXY10199206-199512

LIGHT GRAY,TRIM1#

63327DCOVER, SUNSHADE TRIM

main63327-18010-03×2iEXY10199003-199206

BLUE GRAY,TRIM1#

main63327-18010-05×2iEXY10199003-199206

GREIGE,TRIM4#

main63327-18010-B0×2iEXY10199206-199512

LIGHT GRAY,TRIM1#

63330LOCK ASSY, SUNSHADE TRIM

main63330-18010-03×2iEXY10199003-199206

BLUE GRAY,TRIM1#

main63330-18010-05×2iEXY10199003-199206

GREIGE,TRIM4#

main63330-18010-B0×2iEXY10199206-199512

LIGHT GRAY,TRIM1#

63331ABRACKET, SUNSHADE TRIM LOCK, NO.1

main63331-18010×2iEXY10199003-199512

63332BBRACKET, SUNSHADE TRIM LOCK, NO.2

main63332-18010×2iEXY10199003-199512

9015440011

main90154-40011

9046804149

main90468-04149

9 parts on this diagram · 1 diagram in section
