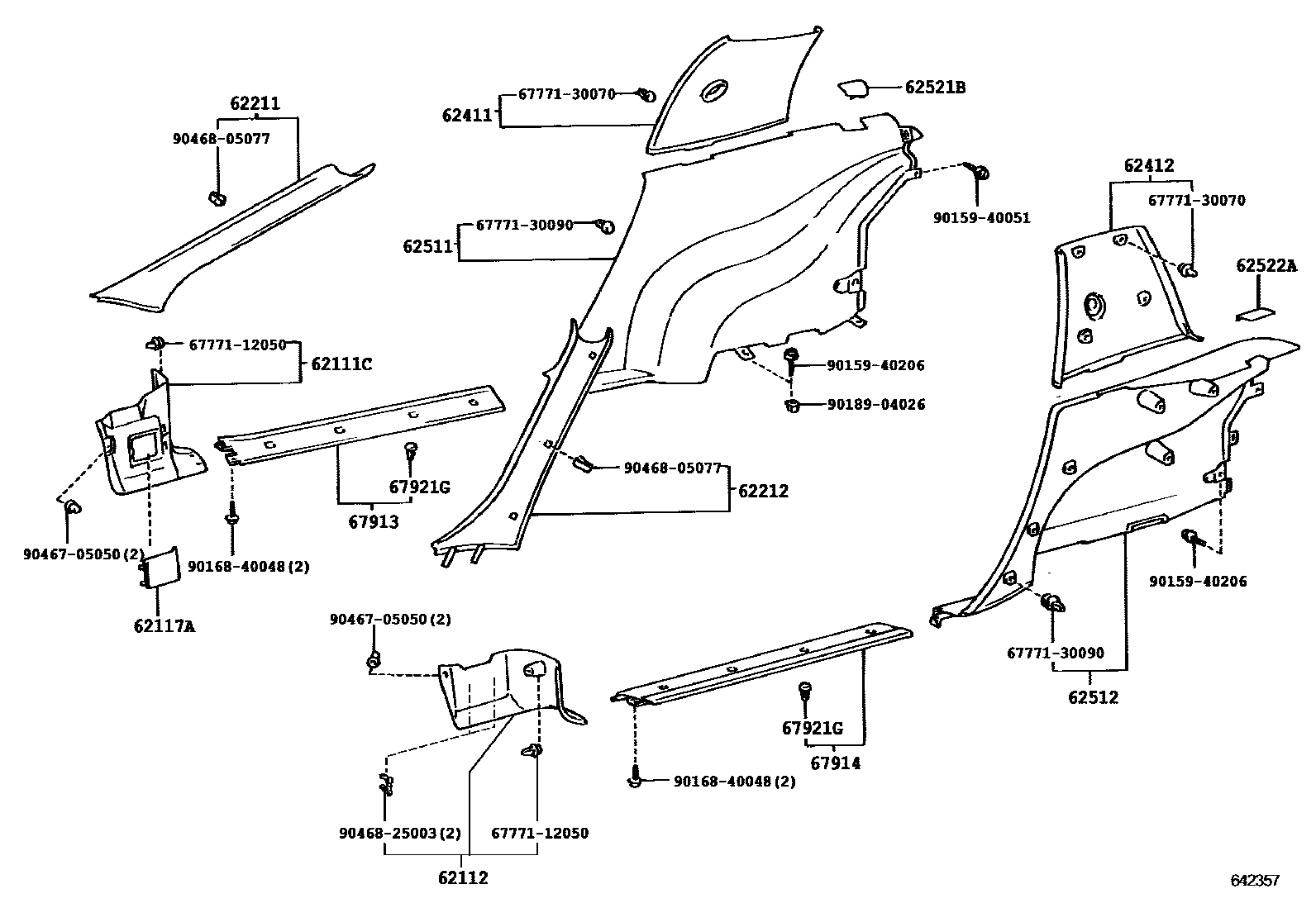

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING
62111CBOARD, COWL SIDE TRIM, RH
62112BOARD, COWL SIDE TRIM, LH
62117ACOVER, COWL SIDE TRIM SERVICE HOLE
LIGHT GRAY,TRIM1#
62211GARNISH, FRONT PILLAR, RH
62212GARNISH, FRONT PILLAR, LH
62411GARNISH, CENTER PILLAR, RH
62412GARNISH, CENTER PILLAR, LH
62511BOARD, QUARTER INSIDE TRIM, RH
sub62510-18010
62512BOARD, QUARTER INSIDE TRIM, LH
sub62520-18010
62521BCOVER, QUARTER TRIM, RH
62522ACOVER, QUARTER TRIM, LH
67913PLATE, FRONT DOOR SCUFF, RH
67914PLATE, FRONT DOOR SCUFF, LH
67921GRETAINER, FRONT DOOR SCUFF PLATE
6777112050WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-12050
6777130070WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-30070
6777130090WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-30090
9015940051
main90159-40051
9015940206
main90159-40206
9016840048
main90168-40048
9018904026
main90189-04026
9046705050
main90467-05050
9046805077
main90468-05077
9046825003
main90468-25003
24 parts on this diagram · 1 diagram in section
