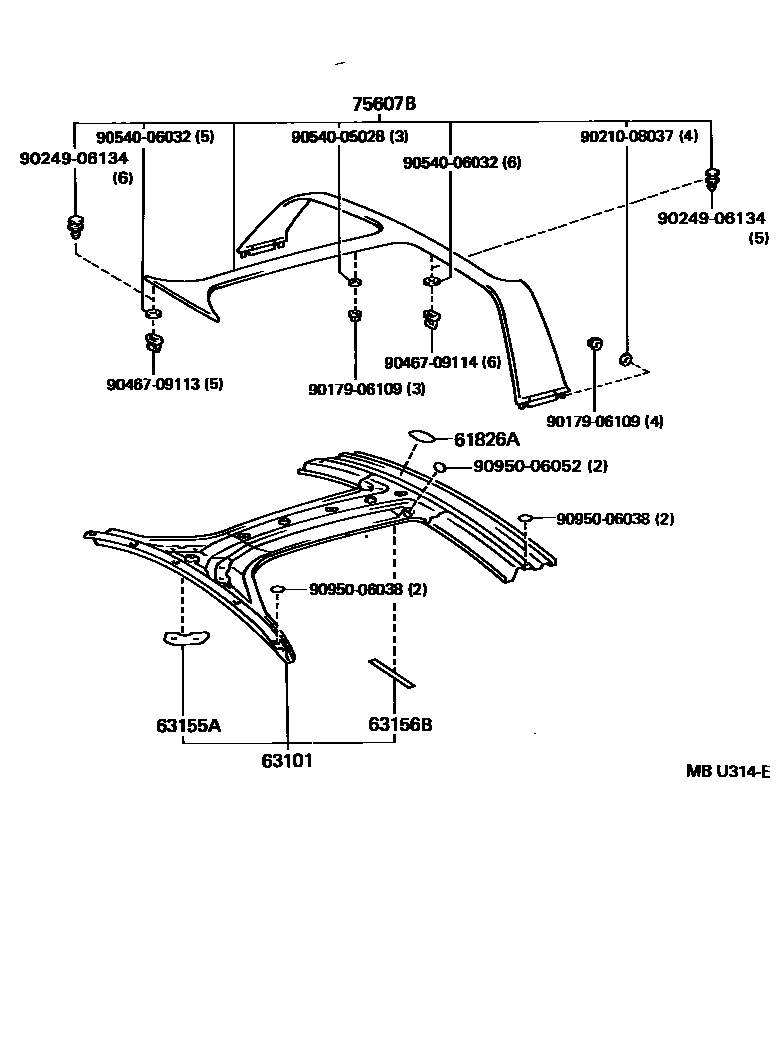

ROOF PANEL & BACK WINDOW GLASS

61826APLATE, NOISE CONTROL, NO.3

main61826-12010×4iEXY10199003-199512

63101PANEL SUB-ASSY, ROOF

main63101-18010iEXY10199003-199512

63155APLATE, ROOF PANEL REINFORCEMENT

main63155-18010×2iEXY10199003-199512

63156BPLATE, ROOF PANEL REINFORCEMENT, REAR

main63156-18010×2iEXY10199003-199512

75607BMOULDING SUB-ASSY, ROOF TOP

main75607-18010-02iEXY10199003-199105

WINE RED MICA,3J8

main75607-18010-03iEXY10199003-199105

DARK GRAY M,188

main75607-18010-04iEXY10199003-199206

MED BLUE M,8H7

main75607-18010-07iEXY10199003-199105

L. TURQUOISE M,743

main75607-18010-09iEXY10199003-199206

GRENISH YELLOW M,569

main75607-18010-13iEXY10199003-199512

L. SILVER,189

main75607-18010-22iEXY10199105-199512

BLACK,202

main75607-18010-36iEXY10199105-199206

ORANGE,3K6

main75607-18010-D0iEXY10199206-199512

RED,3E6

main75607-18010-G0iEXY10..ATM199211-199212

main75607-18010-H1iEXY10199206-199512

TURQUOISE M.M.,746

main75607-18010-J0iEXY10199105-199206

LT.BLUE M,8G6

9017906109

main90179-06109

9021008037

main90210-08037

9024906134

main90249-06134

9046709113

main90467-09113

9046709114

main90467-09114

9054005028

main90540-05028

9054006032

main90540-06032

9095006038

main90950-06038

9095006052

main90950-06052

14 parts on this diagram · 1 diagram in section
