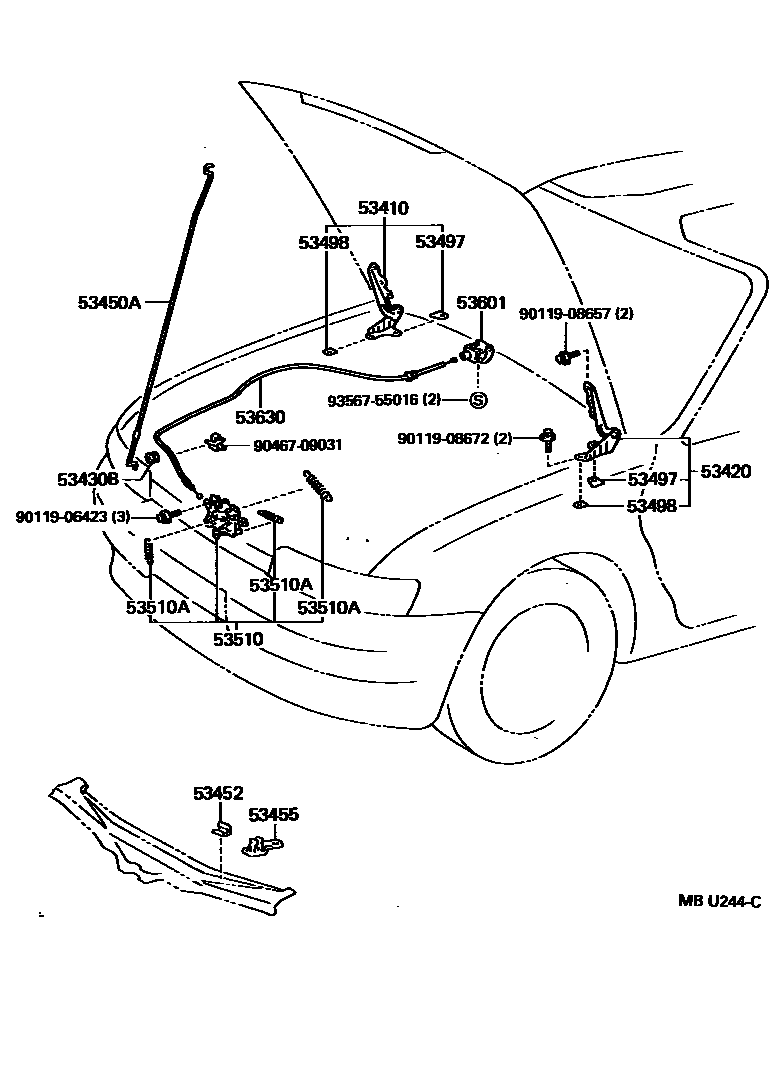

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-10030iEXY10199003-199512

53420HINGE ASSY, HOOD, LH

main53420-10030iEXY10199003-199512

53430BGROMMET(FOR HOOD SUPPORT)

main90480-15012iEXY10199003-199512

53450ASUPPORT ASSY, HOOD, LH

main53440-18010iEXY10199003-199512

53452HOLDER, HOOD STAY

main53452-18010×2iEXY10199003-199512

53455CLAMP, HOOD SUPPORT ROD

main53455-12040iEXY10199003-199512

53497PAD, HOOD HINGE, NO.1

main53497-12011iEXY10199003-199512

53498PAD, HOOD HINGE, NO.2

main53498-12011iEXY10199003-199512

53510LOCK ASSY, HOOD

main53510-18010iEXY10199003-199512

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09039iEXY10199003-199512

main90506-12064iEXY10199003-199512

main90506-18067iEXY10199003-199512

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-16020-B0iEXY10199102-199206

BLUE GRAY,TRIM1#

main53601-16020-B1iEXY10199206-199512

LIGHT GRAY,TRIM1#

main53601-16020-E0iEXY10199102-199206

GRAIGE,TRIM4#

main53601-18010-03iEXY10199003-199102

BLUE GRAY,TRIM1#

main53601-18010-05iEXY10199003-199102

GRAIGE,TRIM4#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-18010iEXY10199003-199512

9011906423

main90119-06423

9011908657

main90119-08657

9011908672

main90119-08672

9046709031

main90467-09031

9356755016

main93567-55016

17 parts on this diagram · 1 diagram in section
