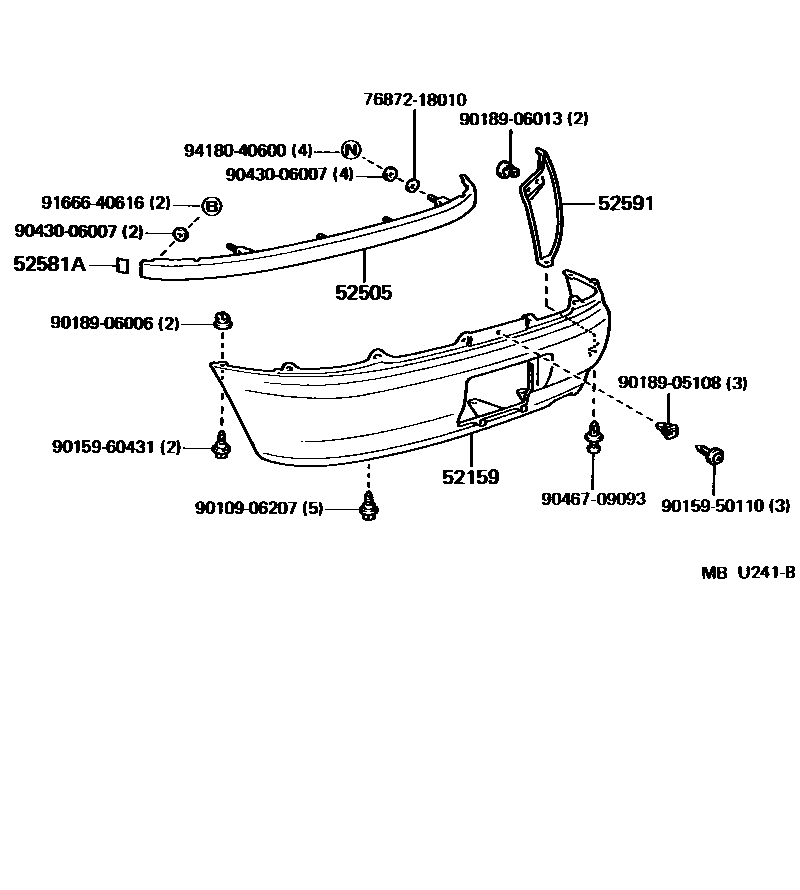

REAR BUMPER & BUMPER STAY

52159COVER, REAR BUMPER

main52159-18010-02iEXY10199003-199105

WINE RED MICA,3J8

main52159-18010-03iEXY10199003-199105

DARK GRAY M,188

main52159-18010-04iEXY10199003-199206

MED BLUE M,8H7

main52159-18010-07iEXY10199003-199105

L. TURQUOISE M,743

main52159-18010-09iEXY10199003-199206

GRENISH YELLOW M,569

main52159-18010-13iEXY10199003-199512

L. SILVER,189

main52159-18010-C0iEXY10199105-199512

BLACK,202

main52159-18010-D0iEXY10199105-199206

ORANGE MICA,3K6

main52159-18010-D1iEXY10199206-199512

RED,3E6

main52159-18010-H0iEXY10199206-199512

TURQUOISE M.M,746

main52159-18010-J0iEXY10199105-199206

LT.BLUE M,8G6

main52159-18020iEXY10..ATM199211-199212

52505FILLER SUB-ASSY, REAR BUMPER

main52505-18010iEXY10199003-199512

52581APROTECTOR, REAR BUMPER FILLER

main52581-20010×2iEXY10199003-199512

52591SEAL, REAR BUMPER SIDE, RH

main52591-18010iEXY10199003-199512

7687218010PROTECTOR, REAR SPOILER, NO.1

main76872-18010

9010906207

main90109-06207

9015950110

main90159-50110

9015960431

main90159-60431

9018905108

main90189-05108

9018906006

main90189-06006

9018906013

main90189-06013

9043006007

main90430-06007

9046709093

main90467-09093

9166640616

main91666-40616

9418040600

main94180-40600

15 parts on this diagram · 1 diagram in section
