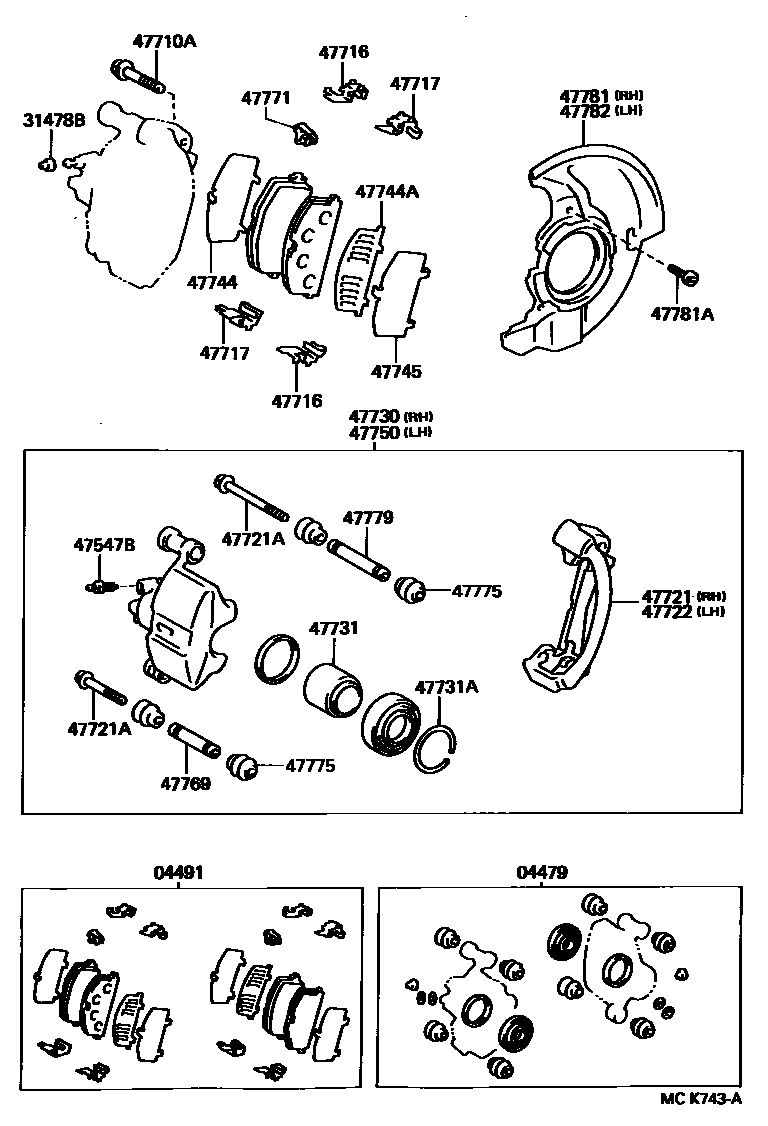

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-12091iEXY10199003-199512

04491PAD KIT, DISC BRAKE, FRONT

main04491-10180iEXY10199003-199011

main04491-10240iEXY10199011-199405

main04491-10241iEXY10199405-199505

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010×2iEXY10199003-199512

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010×2iEXY10199003-199512

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90119-12040×4iEXY10199003-199512

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-32031×4iEXY10199003-199512

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-32031×4iEXY10199003-199512

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-10010iEXY10199003-199512

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90119-09003×2iEXY10199003-199512

main90119-09004×2iEXY10199003-199512

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-10010iEXY10199003-199512

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-10110iEXY10199003-199409

main47730-10111iEXY10199409-199512

47731PISTON, FRONT DISC BRAKE

main47731-12150×2iEXY10199003-199512

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-61001×2iEXY10199003-199512

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-16011×2iEXY10199003-199512

sub47744-32010

47744ASHIM, ANTI-SQUEAL, NO.3(FOR FRONT DISC BRAKE)

main47742-32040×2iEXY10199003-199512

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47745-32040×2iEXY10199003-199512

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-10110iEXY10199003-199409

main47750-10111iEXY10199409-199512

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-12030×2iEXY10199003-199512

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-12050×2iEXY10199011-199512

main47771-32010×2iEXY10199003-199011

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-32010×8iEXY10199003-199512

47779BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)

main47779-16010×2iEXY10199003-199512

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-10070iEXY10199003-199512

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90109-06134×6iEXY10199003-199512

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-10070iEXY10199003-199512

24 parts on this diagram · 2 diagrams in section
