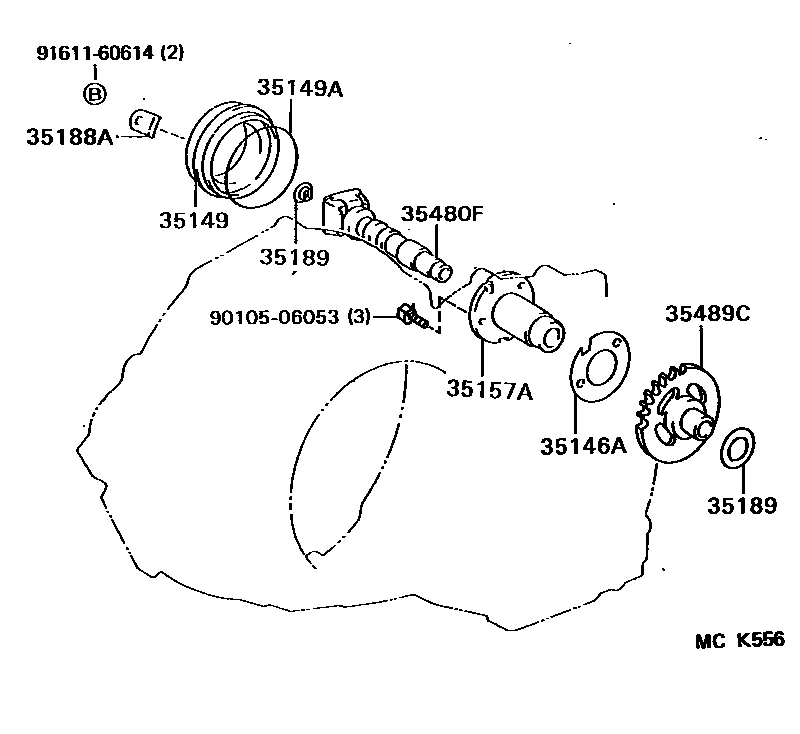

REAR OIL PUMP & GOVERNOR (ATM)

35146AGASKET, GOVERNOR BODY

main35146-20010iEXY10..ATM199003-199512

35149COVER, GOVERNOR

main35149-20010iEXY10..ATM199003-199512

35149ARING, O (FOR GOVERNOR COVER)

main90301-68001iEXY10..ATM199003-199512

35157AADAPTER, GOVERNOR BODY

main35157-20031iEXY10..ATM199003-199512

35188ABRACKET, GOVERNOR COVER

main35188-20010×2iEXY10..ATM199003-199512

35189WASHER, GOVERNOR THRUST, NO.1

main35189-12010iEXY10..ATM199003-199512

DRIVEN GEAR SIDE

main35189-32011iEXY10..ATM199003-199512

BODY SIDE

35480FBODY ASSY, GOVERNOR

main35480-12030iEXY10..ATM199003-199512

35489CGEAR, GOVERNOR DRIVEN

main35489-12010iEXY10..ATM199003-199512

9010506053

main90105-06053

9161160614

main91611-60614

10 parts on this diagram · 1 diagram in section
