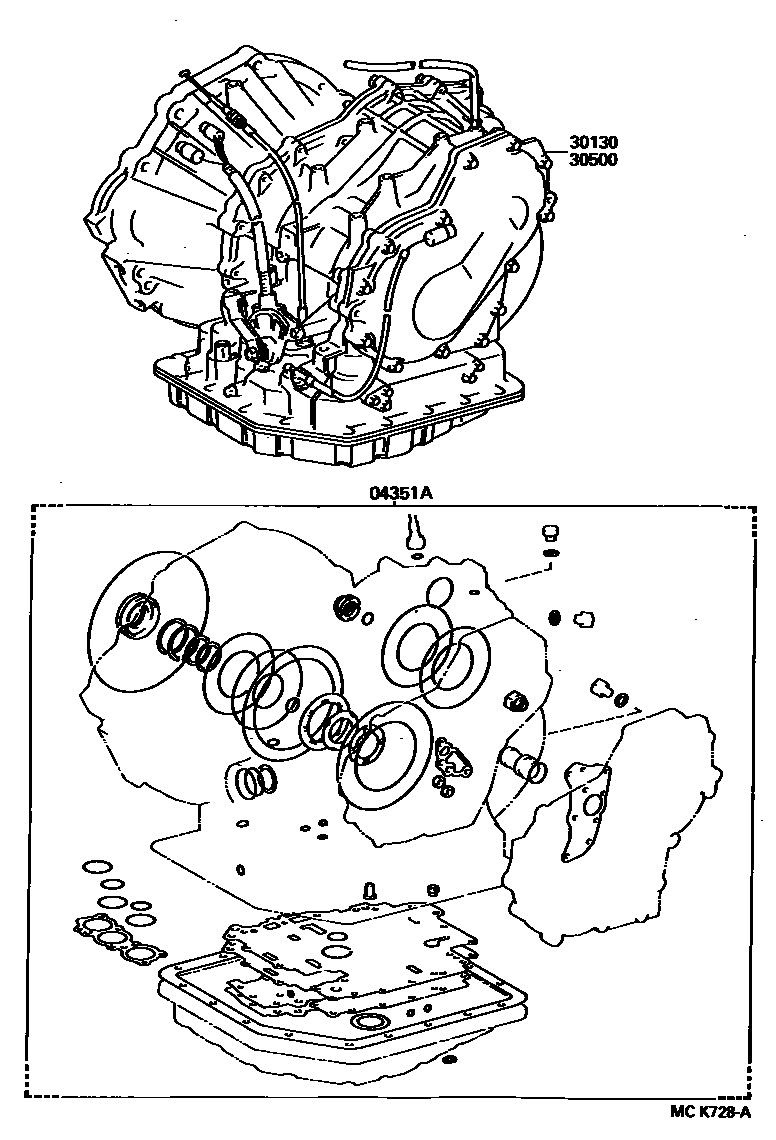

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

Parts diagram

04351AGASKET KIT, TRANSAXLE OVERHAUL(ATM)

main04351-10040i199003-199512

30130TRANSAXLE ASSY, REBUILT

main30130-18010i199003-199206

main30130-18020i199206-199506

main30130-18021i199506-199512

30500TRANSAXLE ASSY, AUTOMATIC

main30500-18010i199003-199206

main30500-18020i199206-199506

main30500-18021i199506-199512

3 parts on this diagram · 1 diagram in section
