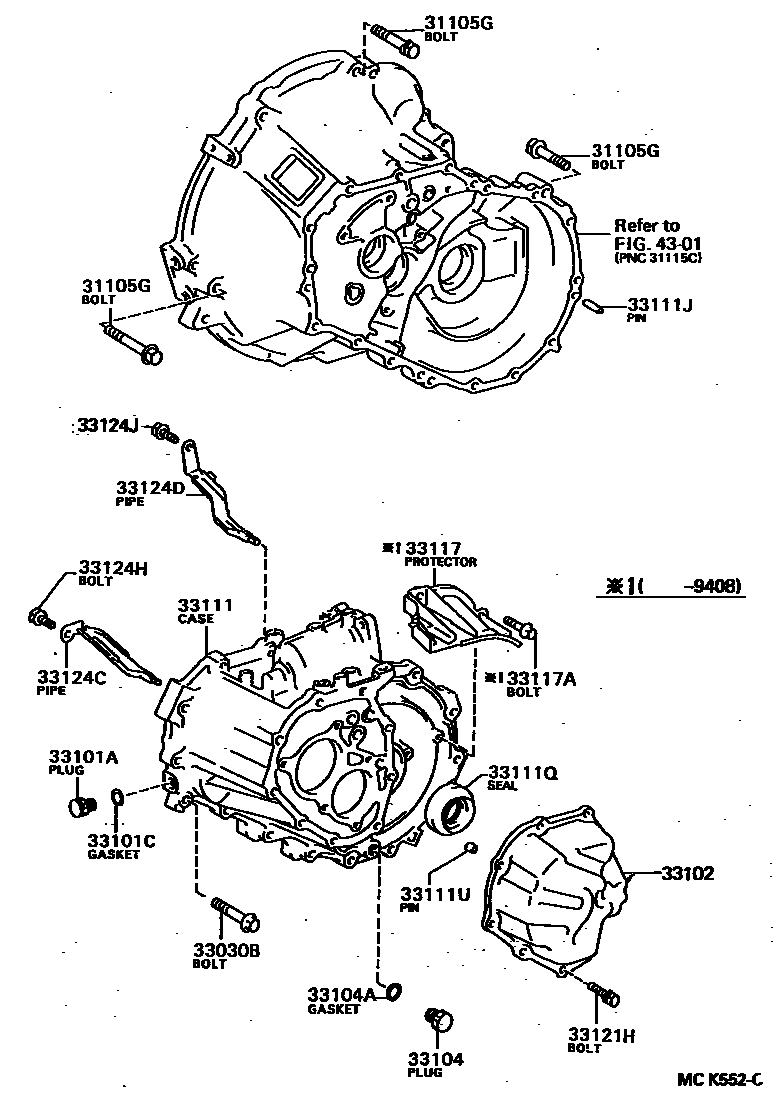

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main90105-10097iEXY10..MTM199003-199512

main91611-61025iEXY10..MTM199003-199512

sub91612-61025

main91611-61025iEXY10..MTM199212-199302

sub91612-61025

main91619-61260iEXY10..MTM199003-199512

main91621-60614iEXY10..MTM199003-199512

main91621-60614iEXY10..MTM199212-199302

33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)

main90105-08064iEXY10..MTM199212-199512

sub90105-08353

main90105-08086iEXY10..MTM199003-199512

main90105-08086iEXY10..MTM199212-199512

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18006iEXY10..MTM199003-199512

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008iEXY10..MTM199003-199512

33102COVER SUB-ASSY, MANUAL TRANSMISSION CASE

main33102-10020iEXY10..MTM199003-199105

sub33102-10022

main33102-10021iEXY10..MTM199105-199208

sub33102-10022

main33102-10022iEXY10..MTM199208-199504

sub33102-10023

main33102-10023iEXY10..MTM199504-199512

main33102-12021iEXY10..MTM199212-199512

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iEXY10..MTM199003-199512

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iEXY10..MTM199003-199512

33111CASE, MANUAL TRANSMISSION

main33111-10071iEXY10..MTM199003-199405

sub33111-16050

sub33124-10021

main33111-10072iEXY10..MTM199107-199210

main33111-16040iEXY10..MTM199212-199405

sub33111-16070

sub90109-12073

main33111-16050iEXY10..MTM199405-199505

sub33111-16080

sub90109-12073

main33111-16051iEXY10..MTM199505-199512

sub33111-16052

sub90109-12073

main33111-16060iEXY10..MTM199405-199505

sub33111-16070

sub90109-12073

main33111-16061iEXY10..MTM199505-199512

sub33111-16062

sub90109-12073

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-08054iEXY10..MTM199003-199512

main90250-10017iEXY10..MTM199212-199512

33111QSEAL, OIL(FOR TRANSMISSION CASE)

main90311-34008iEXY10..MTM199003-199108

NOK

sub90311-34017

main90311-34017iEXY10..MTM199003-199108

KOYO

sub90311-34028

main90311-34017iEXY10..MTM199108-199512

sub90311-34028

33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)

main90253-11001iEXY10..MTM199212-199512

33117PROTECTOR, MANUAL TRANSMISSION CASE

main33117-16010iEXY10..MTM199103-199408

main33117-17010iEXY10..MTM199003-199103

sub33117-16010

33117ABOLT(FOR MANUAL TRANSMISSION CASE PROTECTOR)

main90105-08040iEXY10..MTM199003-199408

sub91641-H0820

33121HBOLT, W/WASHER(FOR TRANSMISSION CASE COVER)

main90119-08494iEXY10..MTM199003-199410

sub90119-08373

main90119-08A34iEXY10..MTM199410-199512

sub90119-08373

main91611-60835iEXY10..MTM199212-199512

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-10010iEXY10..MTM199003-199502

main33124-10012iEXY10..MTM199504-199512

main33124-12010iEXY10..MTM199212-199502

main33124-12010iEXY10..MTM199502-199503

main33124-12012iEXY10..MTM199503-199504

sub33124-20050

main33124-12012iEXY10..MTM199504-199512

sub33124-20050

33124DPIPE, OIL RECEIVER, NO.2(MTM)

main33124-10020iEXY10..MTM199003-199405

main33124-10021iEXY10..MTM199405-199512

main33124-12020iEXY10..MTM199212-199405

main33124-12021iEXY10..MTM199405-199512

33124HBOLT(FOR OIL RECEIVER PIPE)

main91611-60820iEXY10..MTM199003-199512

sub91611-G0820

33124JBOLT, W/WASHER

main91611-60820iEXY10..MTM199003-199512

sub91611-G0820

4301

19 parts on this diagram · 1 diagram in section
