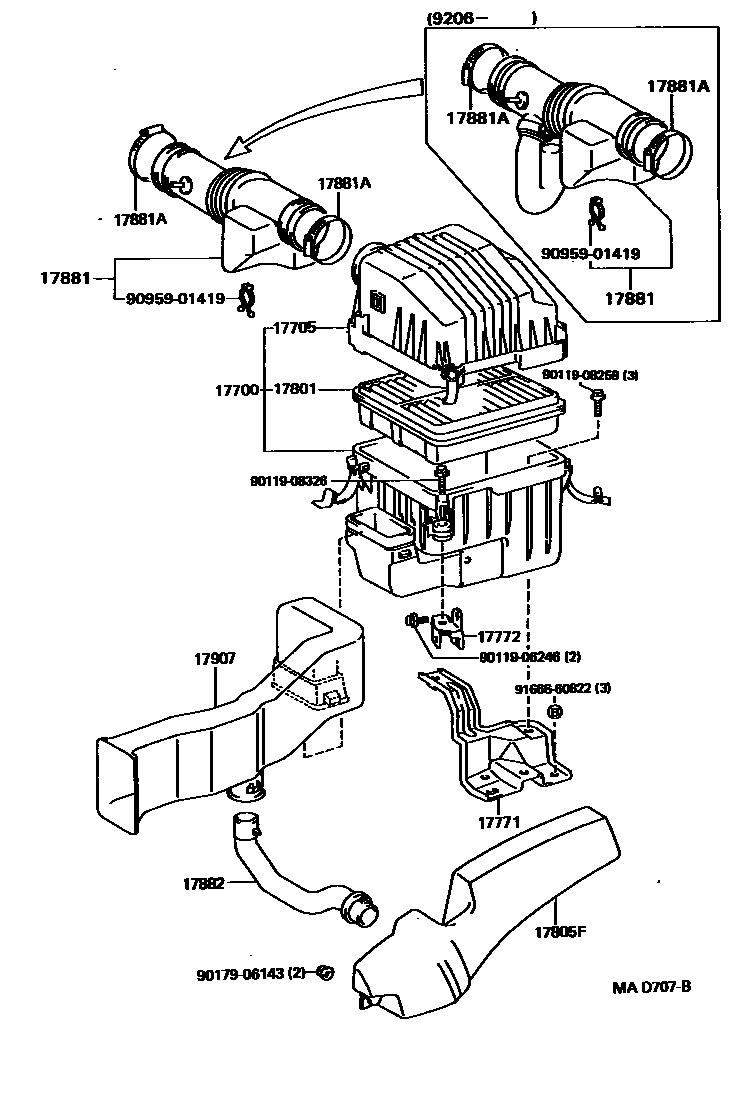

AIR CLEANER

17700CLEANER ASSY, AIR

main17700-11580i5EFHE..EXY10199003-199512

17705CAP SUB-ASSY, AIR CLEANER

main17705-11390i5EFHE..EXY10199003-199409

main17705-11490i5EFHE..EXY10199409-199512

17771BRACKET, AIR CLEANER INLET DUCT

main17771-11050i5EFHE..EXY10199003-199512

17772BRACKET, INTAKE AIR CONNECTOR, NO.2

main17772-11010i5EFHE..EXY10199003-199512

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-11050i5EFHE..EXY10199003-199512

17805FRESONATOR SUB-ASSY, INTAKE AIR

main17805-11060i5EFHE..EXY10199003-199512

17881HOSE, AIR CLEANER, NO.1

main17880-11060i5EFHE..EXY10199003-199206

main17880-11190i5EFHE..EXY10199206-199512

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main90460-70003×2i5EFHE..EXY10199003-199512

17882HOSE, AIR CLEANER, NO.2

main17881-11260i5EFHE..EXY10199003-199512

17907INLET SUB-ASSY, COOL AIR

main17907-11030i5EFHE..EXY10199003-199512

9011906246

main90119-06246

9011908258

main90119-08258

9011908326

main90119-08326

9017906143

main90179-06143

9095901419

main90959-01419

9166660822

main91666-60822

16 parts on this diagram · 1 diagram in section
