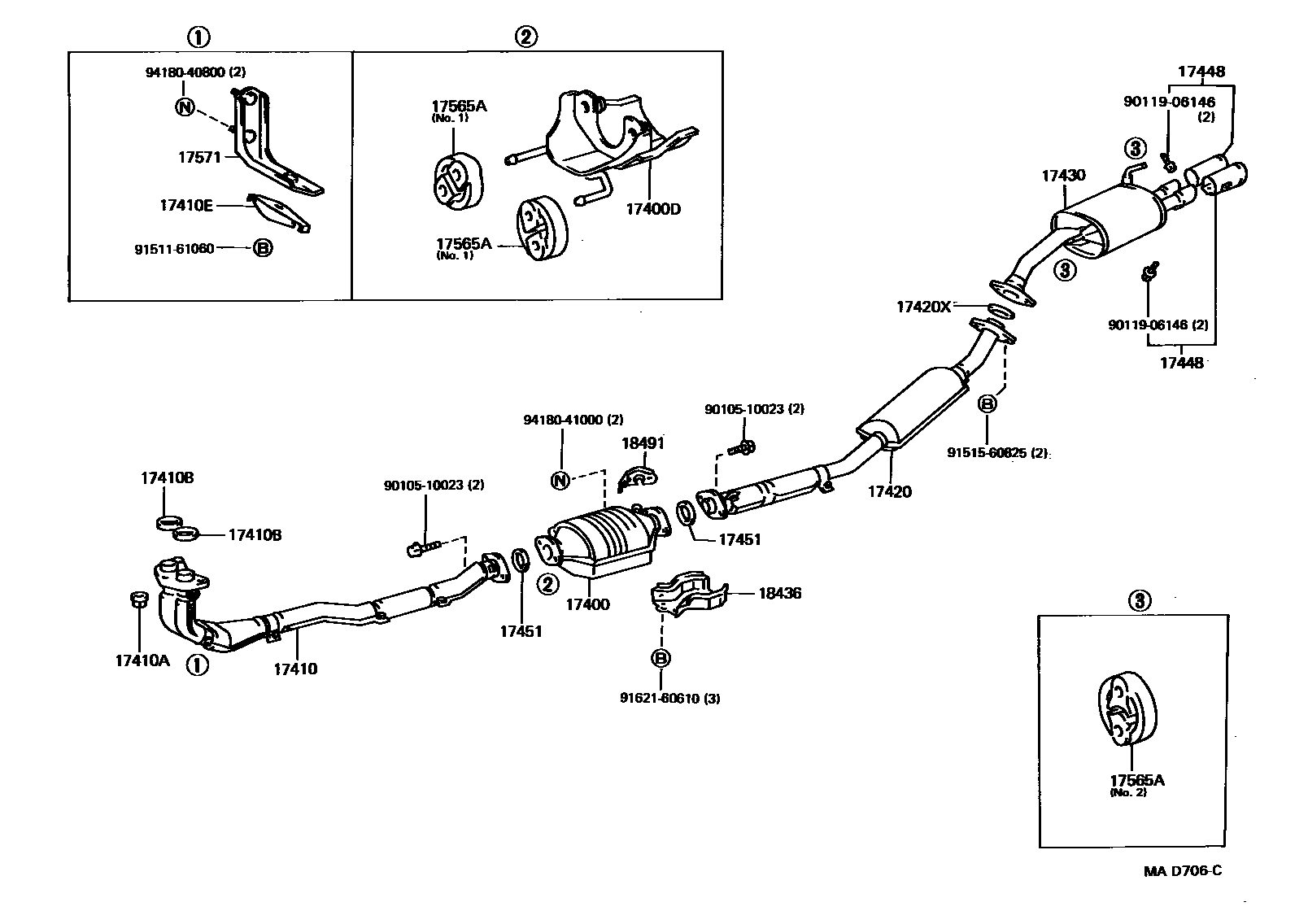

EXHAUST PIPE

17400CONVERTER ASSY, W/CATALYST

main18450-16240i5EFHE..EXY10199003-199512

17400DBRACKET, CATALYTIC CONVERTER SUPPORT

main17503-11020i5EFHE..EXY10199003-199512

17410PIPE ASSY, EXHAUST, FRONT

main17410-11460i5EFHE..EXY10199003-199512

17410ANUT, EXHAUST PIPE SET STUD BOLT

main90179-10070×3i5EFHE..EXY10199003-199512

17410BGASKET, EXHAUST PIPE

main90917-06039×2i5EFHE..EXY10199003-199512

17410ECLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)

main90917-04046i5EFHE..EXY10199003-199512

17420PIPE ASSY, EXHAUST, CENTER

main17420-11170i5EFHE..EXY10199003-199512

17420XGASKET, EXHAUST PIPE, CENTER

main90917-06039i5EFHE..EXY10199003-199512

17430PIPE ASSY, EXHAUST, TAIL

main17430-11450i5EFHE..EXY10199003-199512

17448BAFFLE, TAILPIPE

main17448-19035×2i5EFHE..EXY10199003-199512

17451GASKET, EXHAUST PIPE

main90917-06044×2i5EFHE..EXY10199003-199512

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-11010×2i5EFHE..EXY10199003-199512

main17565-63120×2i5EFHE..EXY10199003-199512

17571BRACKET, EXHAUST PIPE SUPPORT, NO.1

main17571-11140i5EFHE..EXY10199003-199512

18436PROTECTOR, MONOLITHIC CONVERTER, NO.1

main18436-63010i5EFHE..EXY10199003-199512

18491FLANGE, THERMOSENSOR INLET

main18491-63010i5EFHE..EXY10199003-199512

9010510023

main90105-10023

9011906146

main90119-06146

9151161060

main91511-61060

9151560825

main91515-60825

9162160610

main91621-60610

9418040800

main94180-40800

9418041000

main94180-41000

22 parts on this diagram · 1 diagram in section
