V-BELT

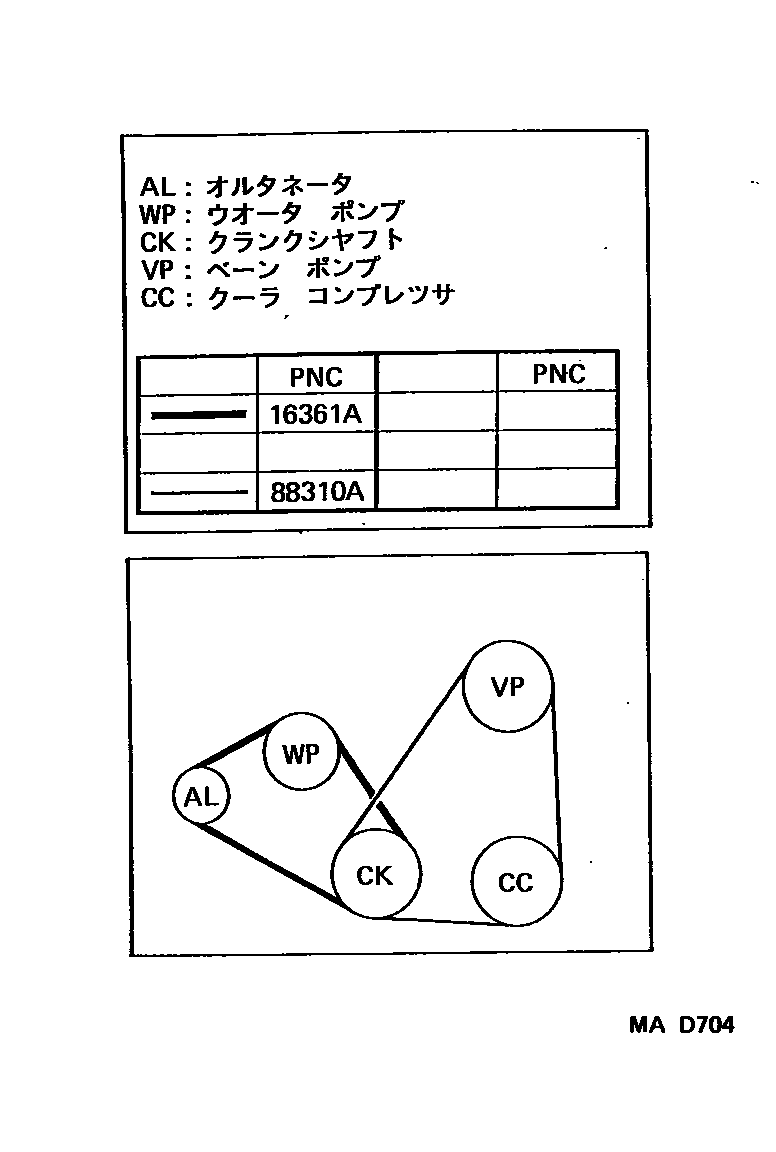

Parts diagram

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02212i199003-199008

main90916-02341i199008-199207

main99364-20820i199412-199512

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main99364-01080i199003-199106

main99364-21080i199106-199311

main99364-71100i199311-199512

2 parts on this diagram · 1 diagram in section
