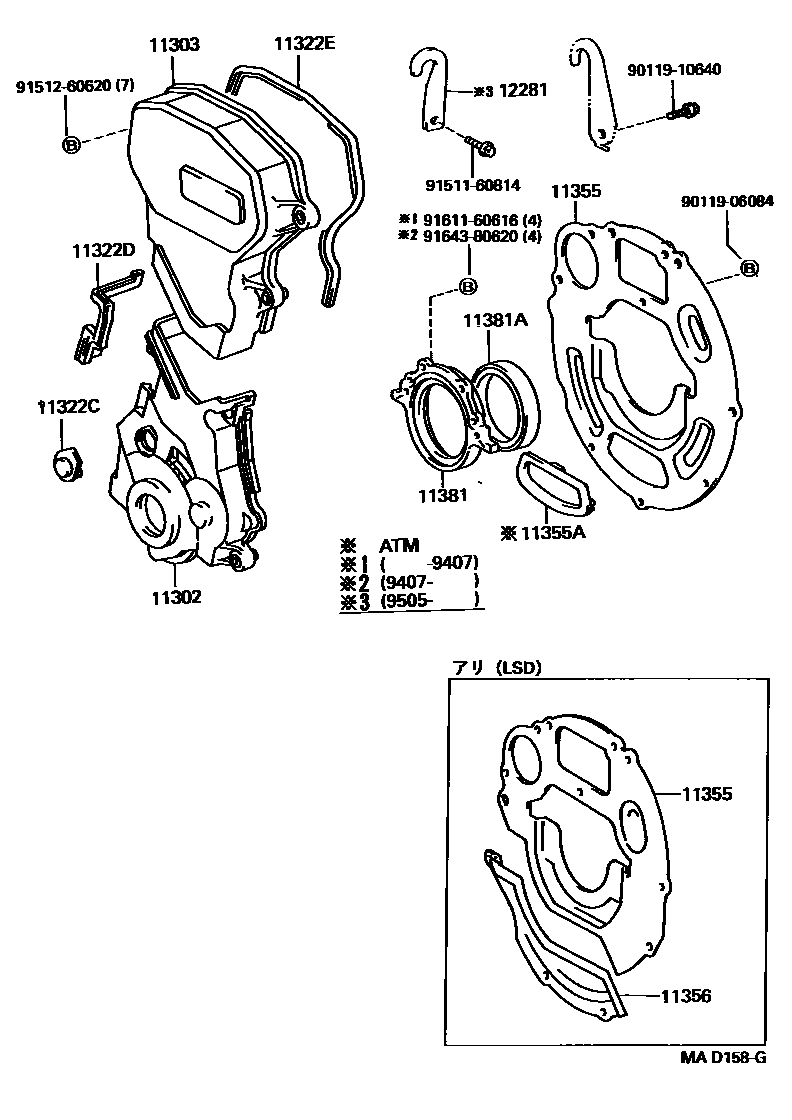

TIMING GEAR COVER & REAR END PLATE
11302COVER SUB-ASSY, TIMING CHAIN OR BELT
11303COVER SUB-ASSY, CRANKSHAFT GEAR OR PULLEY
11322CCOVER, TIMING BELT, NO.3
11322DGASKET, TIMING BELT COVER, NO.1
11322EGASKET, TIMING BELT COVER, NO.2
11355PLATE, REAR END
11355APLUG, HOLE(FOR REAR END PLATE)
11356PLATE, REAR END, NO.2
11381RETAINER, ENGINE REAR OIL SEAL
11381ASEAL, ENGINE REAR OIL
12281HANGER, ENGINE, NO.1
9011906084
main90119-06084
9011910640
main90119-10640
9151160814
main91511-60814
9151260620
main91512-60620
9161160616
main91611-60616
9164380620
main91643-80620
17 parts on this diagram · 1 diagram in section
