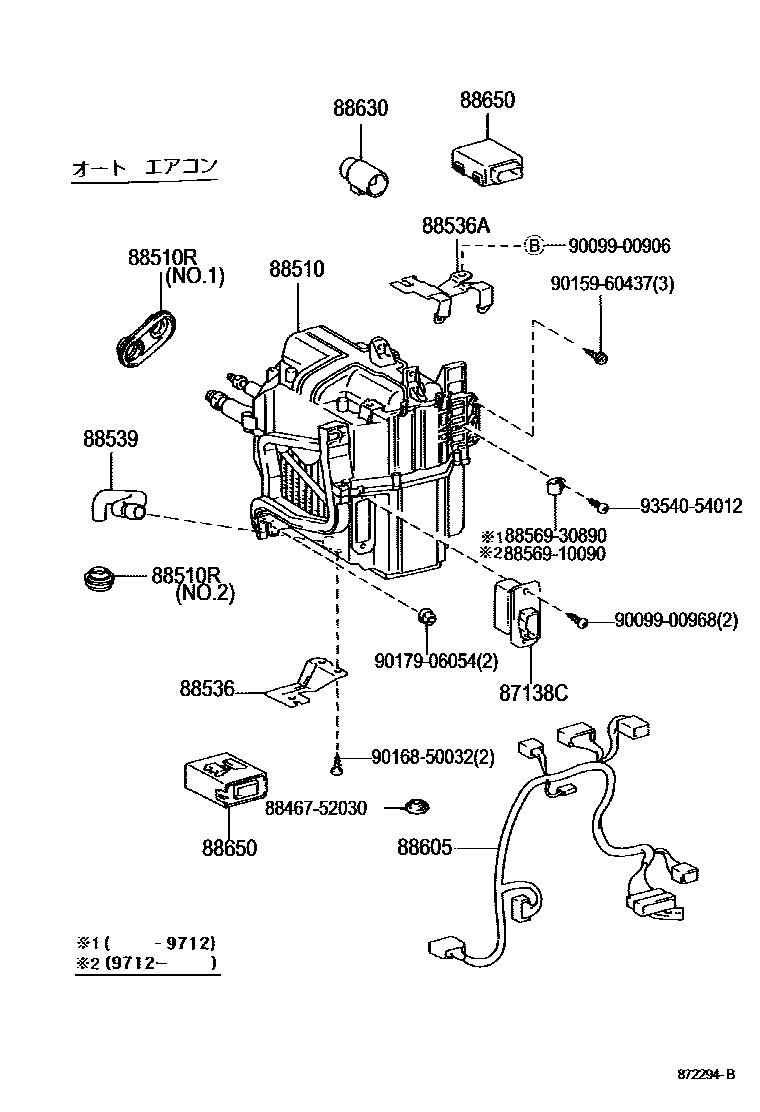

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1��� ���� 0002 1����� ���� 0003 1GRZS---����������� 0005 1��� ������ 0006 1

87138CRESISTOR, BLOWER

main87138-10141iEP9#..GLZV,RFLF,RFLX; EP91..GLZS199601-199704

main87138-18020iEP9#..CARAT,GLZV,RFLX199704

88510UNIT ASSY, COOLER

main88510-10500iEP9#..CARAT,GLZV,RFLX199704-199712

main88510-10640iEP9#..GLZV,RFL,RFLF,RFLX; EP91..GLZS199601-199704

main88510-10720iEP9#..GLZS,GLZV,RFLX199712

88510RGROMMET (FOR COOLER UNIT)

main90480-24008iEP9#..GLZS,RFL,RFLF199601-199712

main90480-26022iEP9#..CARAT,GLZS,GLZV,REMIX,RFLF,RFLX199601-199901

88536BRACKET, COOLING UNIT, NO.1

main88688-10380iEP9#,NP90199601

88536ABRACKET, COOLING UNIT, NO.2

main88688-10400iEP9#..CARAT,GLZS,GLZV,RFLF,RFLX199601-199712

main88688-10470iNP90199601

main88688-10510iEP9#..RFLX199712

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-10090iEP9#,NP90199601

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-1M250iEP9#..CARAT,RFLX199704-199712

main88605-1M260iEP9#..RFLF,RFLX; EP91..GLZS199601-199704

main88605-1M270iEP91..RFL199601

main88605-1M280iEP91..GLZV199601-199712

main88605-1M290iEP91..GLZV199601-199712

main88605-1M360iNP90..5F199601

main88605-1M370iNP90..4FC199601

main88605-1M440iEP9#..RFLX199712

main88605-1M450iEP9#..RFLX; EP91..GLZS199712

main88605-1M460iEP91..GLZV199712

main88605-1M470iEP91..GLZV199712

88630RELAY ASSY, COOLER

main88630-95702iEP9#..GLZS,GLZV,RFLX199601-199704

88650AMPLIFIER ASSY, COOLER STABILIZER

main88650-10420iEP91..GLZV199601

main88650-10430iNP90..5F199601

main88650-10440iNP90..4FC199601

main88650-10470iEP9#..CARAT,GLZS,REMIX,RFLF,RFLX; EP91..RFL199601

main88650-16461iEP9#..CARAT,GLZV,RFLX199601

main88650-1A890iEP91..RFL199601

8846752030CUSHION, COOLER CONDENSER, NO.1

main88467-52030

8856910090CLAMP (FOR COOLER RELAY)

main88569-10090

8856930890CLAMP (FOR COOLER RELAY)

main88569-30890

9009900906

main90099-00906

9009900968

main90099-00968

9015960437

main90159-60437

9016850032

main90168-50032

9017906054

main90179-06054

9354054012

main93540-54012

18 parts on this diagram · 5 diagrams in section
