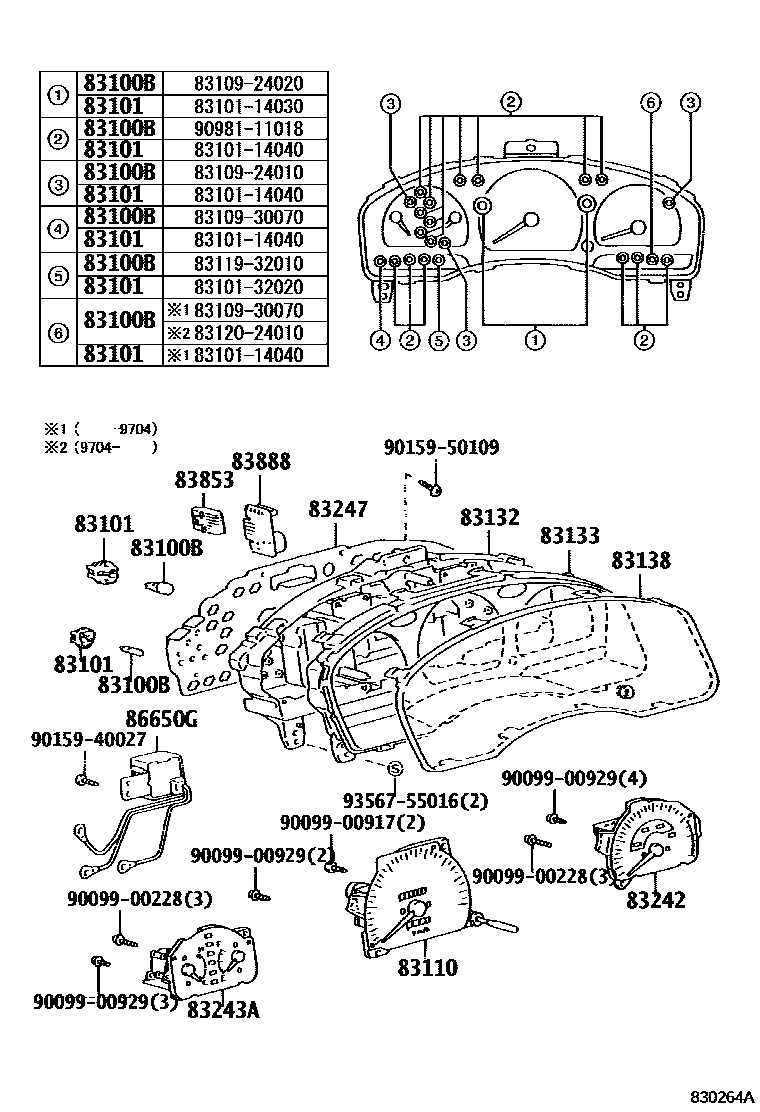

METER

0001 1��(�����) 0002 1��(���-�) 0003 1��(�����) 0004 1��(���-�) 0005 1��� ����� & ���

83100BBULB, COMBINATION METER, NO.1

main83109-10010×3iEP91..GLZS,GLZV199712

main83109-14030×2iEP9#..REMIX199810

main83109-24010×3iEP91..GLZS,GLZV199601-199712

main83109-24020×2iEP9#,NP90..CARAT,RFL,RFLF,RFLX; EP91..GLZS,GLZV199601-199712

main83109-30070iEP9#..CARAT199704-199712

main83119-32010iEP91;EP95..CARAT,RFLF,RFLX199712

main83120-24010iEP9#,NP90199704-199712

main90981-11018×17iEP91..3FC..(CARAT,RFL,RFLF); EP91..ATM..(GLZS,GLZV,REMIX,RFLX); EP91..MTM;EP95..5F..(CARAT,RFLF,RFLX); EP95,NP90..4FC..(CARAT,RFL,RFLF,RFLX); NP90..5F199712

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14030×4iEP9#,NP90..CARAT,RFL,RFLF,RFLX; EP91..GLZS,GLZV199601-199712

BULB:12V 3.4W

main83101-14040×10iEP9#..MTM..(CARAT,RFL,RFLF,RFLX); EP9#..MTM..(GLZS,GLZV,REMIX); EP91..3FC..(CARAT,RFL,RFLF); EP91..4FC..RFLX; EP91..ATM..(GLZS,GLZV,REMIX); EP95,NP90..4FC..(CARAT,RFL,RFLF,RFLX); NP90..5F199712

main83101-32020iEP9#199712

83110SPEEDOMETER ASSY

main83110-1G381iEP9#..CARAT,RFLF,RFLX; NP90..5D..4FC199601-199712

main83220-10010iEP91..GLZS,GLZV199601-199712

main83220-10050iEP91,NP90..RFL199601-199712

main83220-10090iEP9#,NP90..RFL,RFLF199712

main83220-10100iEP9#..RFLX199712

main83220-10110iEP9#..GLZS,GLZV,REMIX199712

83132CASE, COMBINATION METER

main83841-10010iEP91..GLZS,GLZV199601-199708

main83841-10011iEP95..5F..REMIX;EP91..GLZS,GLZV,REMIX199708

main83841-10100iEP9#..CARAT,RFL,RFLF,RFLX199601-199708

main83841-10101iEP9#..CARAT,RFL,RFLF,RFLX199708-199712

main83841-10160iNP90199601-199712

main83841-10290iEP9#..CARAT,RFL,RFLF199712

main83841-10330iEP9#..RFLX199712

main83841-10410iNP90199712

main83841-10660iEP95..4FC..REMIX199810

83133PLATE, COMBINATION METER, NO.1

main83811-10010iEP9#..GLZS,GLZV,REMIX199601

main83811-10100iEP91,NP90..RFL199601-199712

main83811-10120iNP90..5F;NP90..3D..4FC;EP9#..RFL,RFLF199712

main83811-10250iEP9#..CARAT199704

main83811-10330iEP9#..RFLX199712

83138GLASS, SPEEDOMETER

main83138-16630iEP9#..CARAT,GLZS,GLZV,RFLF,RFLX199601-199712

main83138-16650iEP91,NP90..RFL199601-199712

83242TACHOMETER ASSY, ENGINE

main83881-10011iEP91..GLZS199601-199712

main83881-10030iEP91..GLZV199601-199712

main83881-10430iEP9#..GLZS,REMIX199712

main83881-10450iEP91..GLZV199712

83243AGAUGE SUB-ASSY, FUEL RECEIVER

main83882-10010iEP91..5F..(GLZS,GLZV)199601-199712

main83882-10020iEP91..4FC..GLZS199601-199712

main83882-10040iEP91..4FC..GLZV199601-199712

main83882-10100iEP91..4F..CARAT199712

main83882-10110iEP91..3FC..(CARAT,RFL)199601-199712

main83882-10130iNP90..4FC;EP91..ATM..(RFLF,RFLX)199601-199712

main83882-10140iEP95..5F..CARAT199712

main83882-10150iEP95..4FC199601-199712

main83882-10290iEP91,NP90..MTM..(RFL,RFLF)199712

main83882-10300iEP91,NP90..ATM..(RFL,RFLF)199712

main83882-10330iEP91..5F..RFLX199712

main83882-10340iEP91..4FC..RFLX199712

main83882-10350iEP95..5F..RFLF199712

main83882-10360iEP95..4FC..RFLF199712

main83882-10380iEP95..4FC..CARAT199712

main83882-10390iEP95..5F..RFLX199712

main83882-10400iEP95..4FC..RFLX199712

main83882-10430iEP91..MTM..(GLZS,GLZV,REMIX)199712

main83882-10440iEP91..ATM..(GLZS,REMIX)199712

main83882-10460iEP91..4FC..GLZV199712

main83882-10650iEP95..5F..REMIX199810

main83882-10660iEP95..4FC..REMIX199810

83247PLATE, METER CIRCUIT

main83861-10010iEP91..5F..GLZS199601-199708

main83861-10011iEP9#..MTM..(GLZS,REMIX)199708

main83861-10020iEP95..4FC..REMIX199810

main83861-10021iEP91..ATM..(GLZS,REMIX)199708

main83861-10030iEP91..5F..GLZV199601-199708

main83861-10031iEP91..5F..GLZV199708

main83861-10040iEP91..4FC..GLZV199601-199708

main83861-10041iEP91..4FC..GLZV199708

main83861-10100iEP9#..CARAT,RFL,RFLF,RFLX199601-199708

main83861-10101iEP9#..CARAT,RFL,RFLF,RFLX199708-199712

main83861-10160iNP90199601-199712

main83861-10290iEP9#,NP90..CARAT,RFL,RFLF199712

main83861-10330iEP9#..RFLX199712

83853JOINT CONNECTOR (FOR ALARMER)

main83853-10010iEP9#,NP90199601

83888ALARMER, COMBINATION METER

main83888-10010iEP9#,NP90199601

86650GBUZZER ASSY

main86650-12030iEP9#,NP90199601

9009900228

main90099-00228

9009900917

main90099-00917

9009900929

main90099-00929

9015940027

main90159-40027

9015950109

main90159-50109

9356755016

main93567-55016

18 parts on this diagram · 5 diagrams in section
