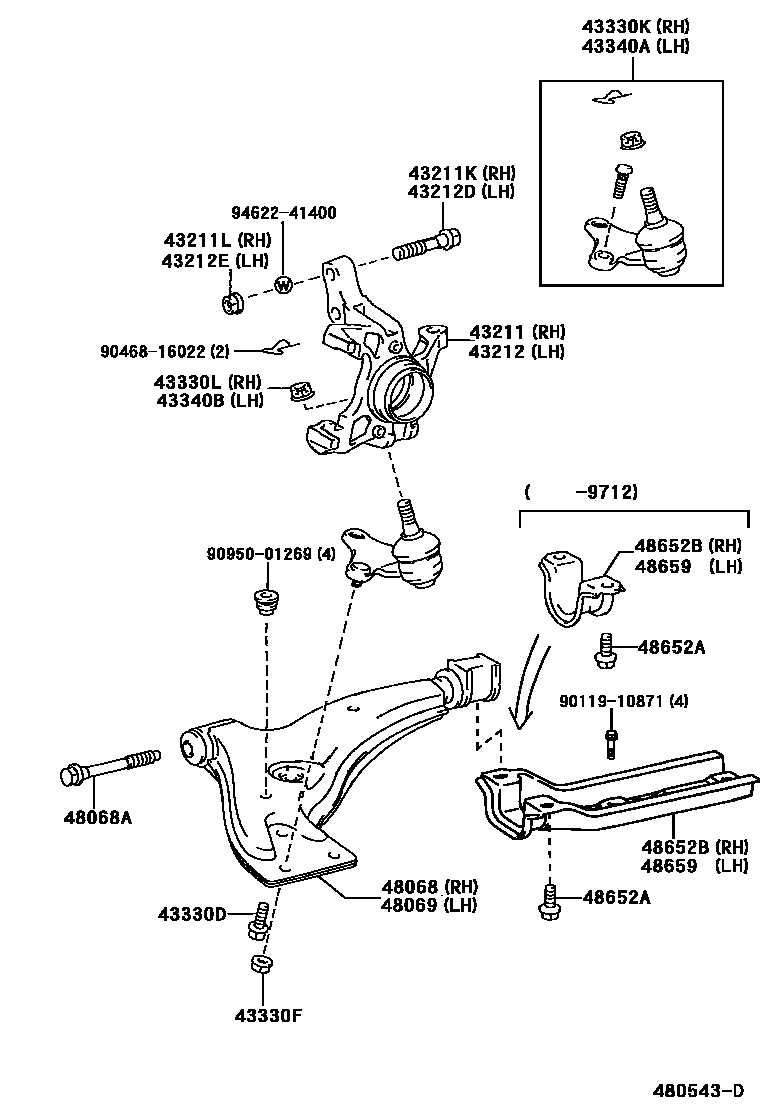

FRONT AXLE ARM & STEERING KNUCKLE

0001 1 0003 1

43211KNUCKLE, STEERING, RH

main43211-10062iEP91,NP90..RFL; EP91..CARAT,GLZS,REMIX,RFLF,RFLX199601

main43211-10071iEP91,NP90..RFL199704

main43211-10081iEP91,NP90..RFL199601-199704

main43211-10102iEP95199601

main43211-10110iEP91..GLZV199601

43211KBOLT (FOR STEERING KNUCKLE RH)

main90105-15004iEP9#,NP90199601

main90105-15005iEP9#,NP90199601

main90105-15006iEP9#,NP90199601

main90105-15012×2iEP9#,NP90199601

43211LNUT (FOR STEERING KNUCKLE RH)

main90179-15006×2iEP9#,NP90199601

43212KNUCKLE, STEERING, LH

main43212-10042iEP91,NP90..RFL; EP91..CARAT,GLZS,REMIX,RFLF,RFLX199601

main43212-10051iEP91,NP90..RFL199704

main43212-10061iEP91,NP90..RFL199601-199704

main43212-10082iEP95199601

main43212-10090iEP91..GLZV199601

43212DBOLT (FOR STEERING KNUCKLE LH)

main90105-15004iEP9#,NP90199601

main90105-15005iEP9#,NP90199601

main90105-15006iEP9#,NP90199601

main90105-15012×2iEP9#,NP90199601

43212ENUT (FOR STEERING KNUCKLE LH)

main90179-15006×2iEP9#,NP90199601

43330DBOLT (FOR FRONT LOWER BALL JOINT)

main90119-10407×2iEP9#,NP90199601

43330FNUT (FOR FRONT LOWER BALL JOINT SETTING)

main90179-10088×4iEP9#,NP90199601

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-19085iEP95,NP90;EP91..GLZS,GLZV,REMIX199601

main43330-19125iEP91..CARAT,RFL,RFLF,RFLX199601

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-12007iEP9#,NP90199601

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43340-19025iEP95,NP90;EP91..GLZS,GLZV,REMIX199601

main43340-19035iEP91..CARAT,RFL,RFLF,RFLX199601

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-12007iEP9#,NP90199601

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-10070iEP91..CARAT,RFL,RFLF,RFLX199601-199712

main48068-10100iEP95;EP91,NP90..(4FC,5F)..(GLZS,GLZV,RFL)199601-199712

main48068-10110iEP91..CARAT,RFL,RFLF,RFLX199712

main48068-10120iEP95,NP90;EP91..GLZS,GLZV,REMIX199712

48068ABOLT(FOR FRONT SUSPENSION LOWER ARM)

main90119-12099×2iEP9#,NP90199601

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-10050iEP91..CARAT,RFL,RFLF,RFLX199601-199712

main48069-10080iEP95;EP91,NP90..(4FC,5F)..(GLZS,GLZV,RFL)199601-199712

main48069-10090iEP91..CARAT,RFL,RFLF,RFLX199712

main48069-10100iEP95,NP90;EP91..GLZS,GLZV,REMIX199712

48652ABOLT(FOR FRONT LOWER ARM BRACKET)

main90901-19018×4iEP9#,NP90199601

48652BBRACKET, FRONT LOWER ARM, RH

main48652-10020iEP9#,NP90199601-199712

main48652-46010iEP9#,NP90199712

48659BRACKET, FRONT LOWER ARM, LH

main48652-10020iEP9#,NP90199601-199712

main48659-46010iEP9#,NP90199712

9011910871

main90119-10871

9046816022

main90468-16022

9095001269

main90950-01269

9462241400

main94622-41400

22 parts on this diagram · 2 diagrams in section
