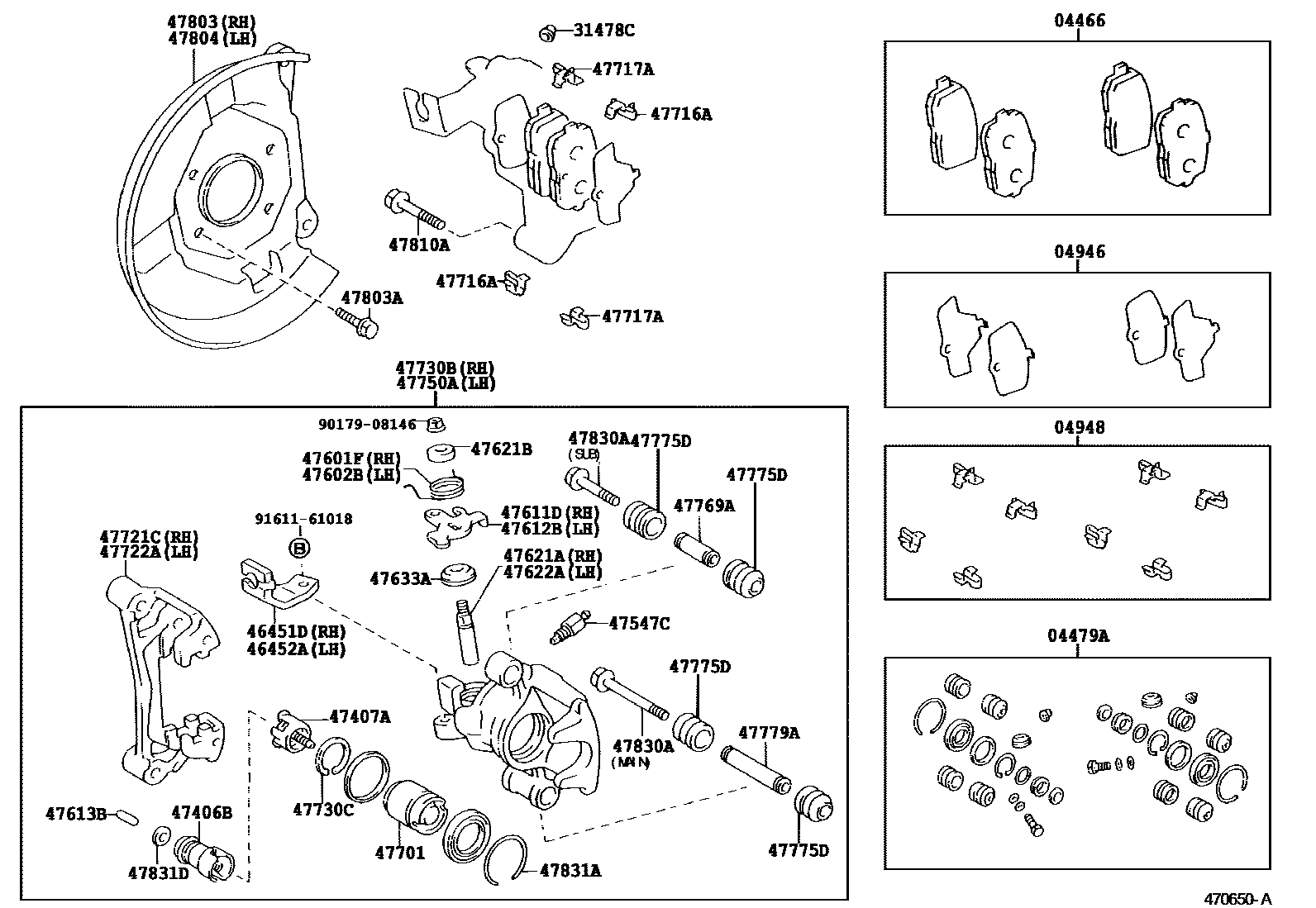

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-18010iEP91..GLZV199601

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-16040iEP91..GLZV199601

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-16010iEP91..GLZV199601

04948FITTING KIT, DISC BRAKE, REAR

main04948-16010iEP91..GLZV199601

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010×2iEP91..GLZV199601

46451DBRACKET, PARKING BRAKE CABLE SUPPORT, RH

main46451-10011iEP91..GLZV199601

46452ABRACKET, PARKING BRAKE CABLE SUPPORT, LH

main46452-10011iEP91..GLZV199601

47406BCLUTCH SUB-ASSY, REAR DISC BRAKE

main47406-16010×2iEP91..GLZV199601

47407AADJUSTER ASSY, REAR DISC BRAKE PAD

main47407-16010×2iEP91..GLZV199601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-10060×2iEP91..GLZV199601

47601FSPRING, TORSION(FOR PARKING BRAKE CRANK RH)

main90508-29018iEP91..GLZV199601

47602BSPRING, TORSION(FOR PARKING BRAKE CRANK LH)

main90508-29019iEP91..GLZV199601

47611DLEVER, PARKING BRAKE DISC, RH

main47611-10040iEP91..GLZV199601

47612BLEVER, PARKING BRAKE DISC, LH

main47612-10040iEP91..GLZV199601

47613BSTRUT, PARKING BRAKE(FOR REAR BRAKE)

main47613-16010×2iEP91..GLZV199601

47621ASHAFT, PARKING LEVER, RH

main47621-16010iEP91..GLZV199601

47621BSPACER(FOR PARKING LEVER SHAFT)

main90560-08056×2iEP91..GLZV199601

47622ASHAFT, PARKING LEVER, LH

main47622-16010iEP91..GLZV199601

47633ABOOT, PARKING BRAKE CRANK

main47633-16010×2iEP91..GLZV199601

47701PISTON SUB-ASSY, REAR DISC BRAKE

main47701-16010×2iEP91..GLZV199601

47716APLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)

main47716-16010×4iEP91..GLZV199601

47717APLATE, PAD SUPPORT, NO.2(FOR REAR DISC BRAKE)

main47717-16010×4iEP91..GLZV199601

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47721-10020iEP91..GLZV199601

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47721-10020iEP91..GLZV199601

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47730-10120iEP91..GLZV199601

47730CRING, HOLE SNAP(FOR REAR DISC BRAKE CYLINDER)

main90521-32003×2iEP91..GLZV199601

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47750-10120iEP91..GLZV199601

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47769-16020×2iEP91..GLZV199601

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47775-16020×8iEP91..GLZV199601

47779ABUSH, CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47779-32010×2iEP91..GLZV199601

47803COVER SUB-ASSY, DISC BRAKE DUST, REAR RH

main47803-10010iEP91..5F..GLZV199601

main47803-10030iEP91..GLZV199601

47803ABOLT(FOR REAR DISC BRAKE DUST COVER)

main90119-10447×8iEP91..GLZV199601

47804COVER SUB-ASSY, DISC BRAKE DUST, REAR LH

main47804-10010iEP91..5F..GLZV199601

main47804-10030iEP91..GLZV199601

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90119-10260×4iEP91..GLZV199601

47830ABOLT(FOR REAR DISC BRAKE)

main90119-09011×2iEP91..GLZV199601

main90119-09012×2iEP91..GLZV199601

47831ARING, SET(FOR REAR DISC BRAKE PISTON)

main90522-43002×2iEP91..GLZV199601

47831DRING(FOR REAR DISC BRAKE)

main90562-04014×2iEP91..GLZV199601

9017908146

main90179-08146

9161161018

main91611-61018

39 parts on this diagram · 1 diagram in section
