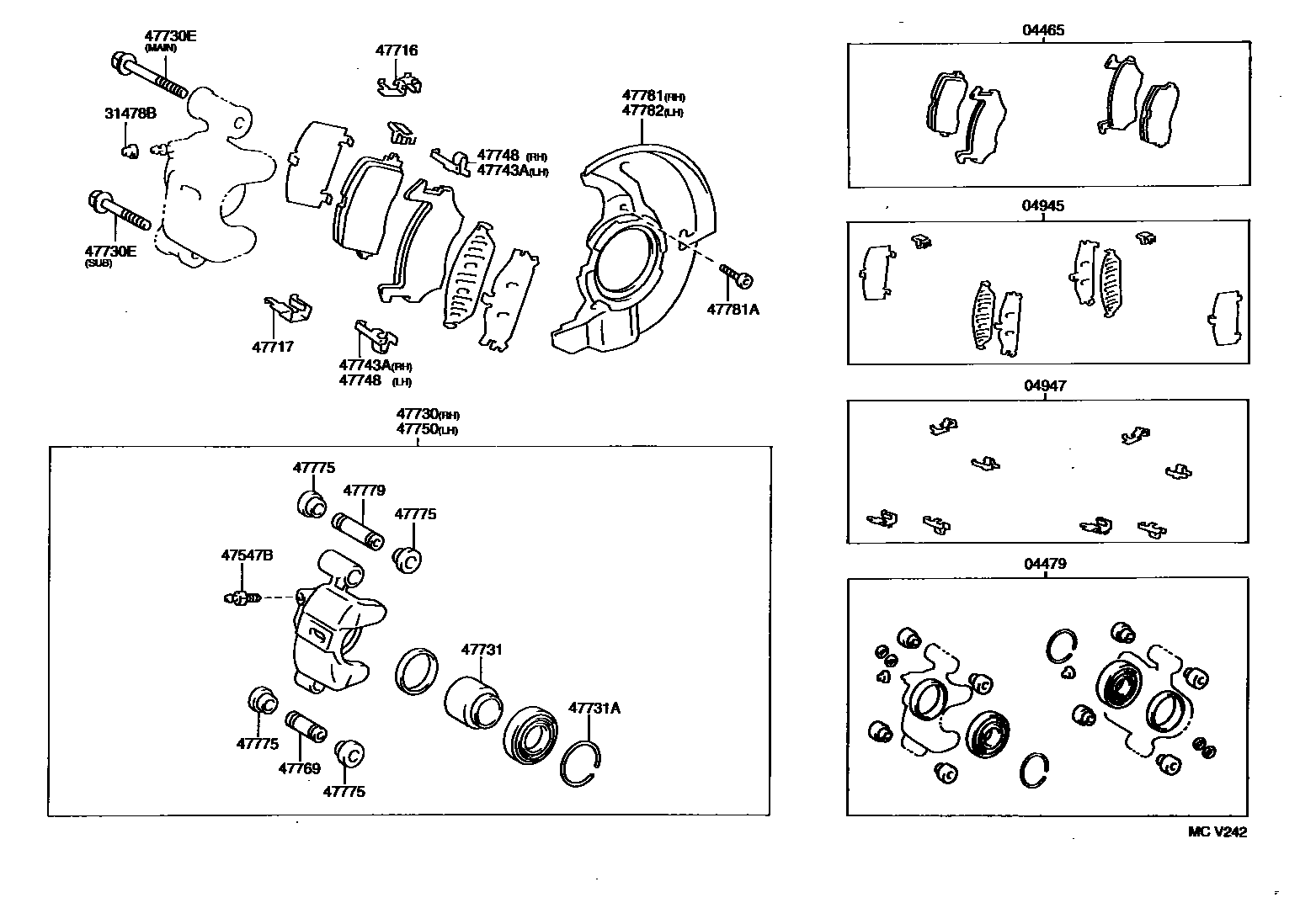

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1 0003 1��(ABS)

04465PAD KIT, DISC BRAKE, FRONT

main04465-10020iEP91,NP90..RFL199601-199704

main04465-10040iEP91..GLZV199601-199804

main04465-12510iEP9#,NP90..CARAT,GLZS,REMIX,RFL,RFLF,RFLX199808-199907

main04465-16120iEP91..GLZV199804-199907

main04465-21010iEP9#,NP90..CARAT,GLZS,RFL,RFLF,RFLX199704-199808

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-10060iEP91,NP90..RFL199601-199704

main04479-12091iEP9#..CARAT,GLZS,GLZV,RFLF,RFLX; EP91,NP90..RFL199601

main04479-16021iEP91,NP90..RFL199704

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-10010iEP91,NP90..RFL199601-199704

main04945-32050iEP91..GLZV199601-199907

main04945-32060iEP9#,NP90..CARAT,GLZS,REMIX,RFL,RFLF,RFLX199704-199907

04947FITTING KIT, DISC BRAKE, FRONT

main04947-20060iEP9#,NP90..CARAT,GLZS,GLZV,RFL,RFLF,RFLX199611

main04947-32010iEP9#,NP90199601-199611

main04947-32020iEP91,NP90..RFL199601-199704

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010×2iEP9#,NP90199601

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010×2iEP9#,NP90199601

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-20140×4iEP9#,NP90..CARAT,GLZS,GLZV,RFL,RFLF,RFLX199611

main47716-32031×4iEP9#,NP90199601-199610

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-20140×4iEP9#,NP90..CARAT,GLZS,GLZV,RFL,RFLF,RFLX199611

main47717-32031×2iEP91,NP90..RFL199601-199704

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-10080iEP91,NP90..RFL199601-199704

main47730-10101iEP9#..REMIX199810

main47730-10111iEP91..GLZV199601

main47730-16081iEP91,NP90..RFL199704

47730EBOLT(FOR FRONT DISC BRAKE CYLINDER)

main90119-08005×2iEP91,NP90..RFL199601-199704

main90119-08145×2iEP91,NP90..RFL199601-199704

47731PISTON, FRONT DISC BRAKE

main47731-12150×2iEP9#,NP90199601

main47731-16020×2iEP91,NP90..RFL199601

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-61001×2iEP9#,NP90199601

47743ASPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)

main47743-10040×2iEP91,NP90..RFL199601-199704

47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)

main47748-10050×2iEP91,NP90..RFL199601-199704

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-10080iEP91,NP90..RFL199601-199704

main47750-10101iEP9#,NP90..CARAT,GLZS,RFL,RFLF,RFLX199601

main47750-10111iEP91..GLZV199601

main47750-16081iEP91,NP90..RFL199704

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-10030×2iEP91,NP90..RFL199601-199704

main47769-12030×2iEP9#,NP90199704

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-16010×8iEP91,NP90..RFL199601-199704

main47775-32010×8iEP9#,NP90199601-199704

47779BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)

main47779-10010×2iEP91,NP90..RFL199601-199704

main47779-16010×2iEP9#,NP90199704

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-10050iEP91,NP90..RFL199601-199704

main47781-10060iEP9#,NP90..GLZS,RFL,RFLF,RFLX199601-199704

main47781-10070iEP91..GLZV199601

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90109-06134×6iEP9#,NP90199601

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-10050iEP91,NP90..RFL199601-199704

main47782-10060iEP9#,NP90..GLZS,RFL,RFLF,RFLX199601-199704

main47782-10070iEP91..GLZV199601

21 parts on this diagram · 3 diagrams in section
