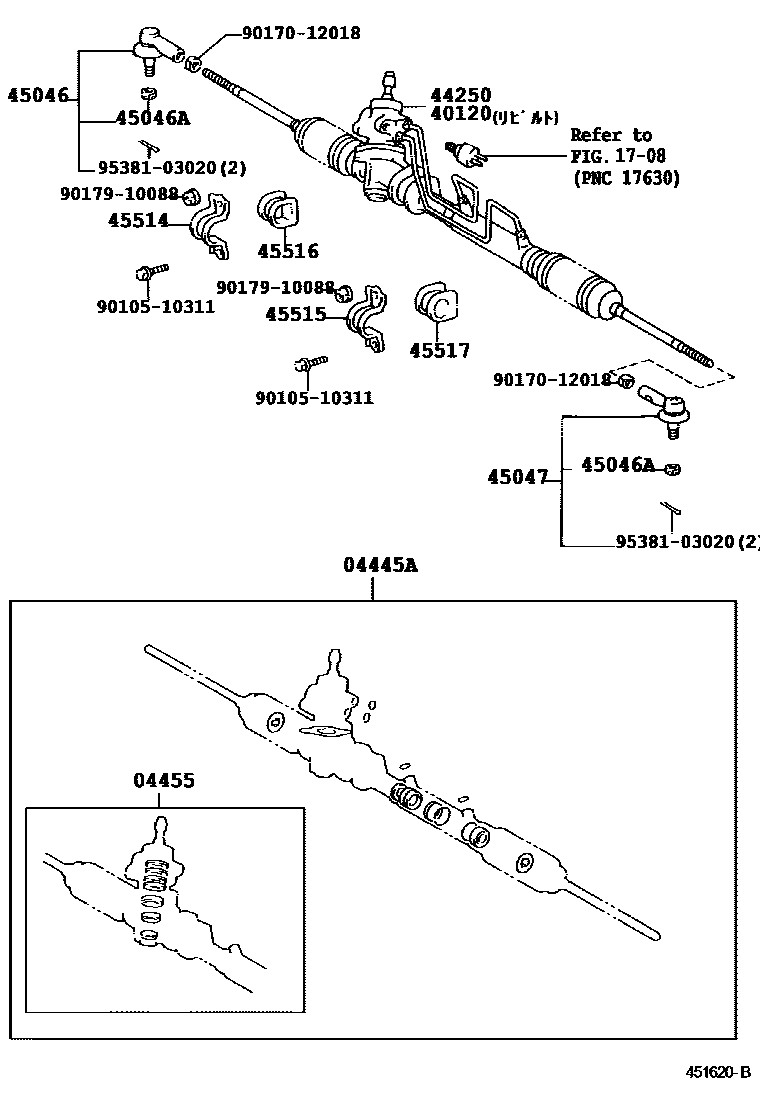

FRONT STEERING GEAR & LINK

0001 1���- ������� 0003 1���- ������� 0005 1

04445AGASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

main04445-16110iEP9#..CARAT,GLZS,GLZV,REMIX,RFLF,RFLX; EP91,NP90..RFL199601-199907

04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

main04455-10030iEP9#,NP90199601-199907

1708VACUUM PIPING

→ Go to FIG 17-08

40120GEAR ASSY,POWER STEERING,REBUILT

main40120-10160iEP91..CARAT,RFL,RFLF,RFLX199601-199712

KOYO

main40120-10170iEP95199601-199712

KOYO

main40120-10181iEP91..GLZV199601-199712

KOYO

main40120-10182iEP91..GLZV199712-199907

KOYO

main40120-10190iNP90199601-199712

KOYO

main40120-10200iEP91..GLZS199601-199712

KOYO

main40120-10201iEP91..GLZS,REMIX199712-199907

KOYO

main40120-10230iEP91..CARAT,RFL,RFLF,RFLX199712-199907

KOYO

main40120-10240iNP90199712-199907

KOYO

main40120-10250iEP95199712-199907

KOYO

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-10160iEP91..CARAT,RFL,RFLF,RFLX199601-199712

main44250-10170iEP95199601-199712

main44250-10181iEP91..GLZV199601-199712

main44250-10182iEP91..GLZV199712-199907

main44250-10190iNP90199601-199712

main44250-10200iEP91..GLZS199601-199712

main44250-10201iEP91..GLZS,REMIX199712-199907

main44250-10230iEP91..CARAT,RFL,RFLF,RFLX199712-199907

main44250-10240iNP90199712-199907

main44250-10250iEP95199712-199907

45046END SUB-ASSY, TIE ROD, RH

main45046-19206iEP91,NP90..CARAT,GLZS,GLZV,RFL,RFLF,RFLX199601-199907

main45046-19216iEP95;EP91..REMIX199601-199907

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028×2iEP9#,NP90199601

45047END SUB-ASSY, TIE ROD, LH

main45046-19206iEP91,NP90..CARAT,GLZS,GLZV,RFL,RFLF,RFLX199601-199907

main45046-19216iEP95;EP91..REMIX199601-199907

45514BRACKET, STEERING RACK HOUSING, NO.1

main45514-16050iEP91,NP90..RFL199601

main45514-16060iEP9#..CARAT,GLZS,GLZV,RFLF,RFLX; EP91,NP90..RFL199601-199707

main45514-16061iNP90;EP9#..5D..(CARAT,RFL,RFLF,RFLX);EP9#..3D..(GLZS,GLZV,RFL,RFLF,RFLX)199707

45515BRACKET, STEERING RACK HOUSING, NO.2

main45514-16060iEP9#..CARAT,GLZS,GLZV,RFLF,RFLX; EP91,NP90..RFL199601-199707

main45514-16061iNP90;EP9#..5D..(CARAT,RFL,RFLF,RFLX);EP9#..3D..(GLZS,GLZV,RFL,RFLF,RFLX)199707

main45515-10050iEP91,NP90..RFL199601

45516GROMMET, STEERING RACK HOUSING, NO.1

main45516-16050iEP91,NP90..RFL199601

main45516-16060iEP9#..CARAT,GLZS,GLZV,REMIX,RFLF,RFLX; EP91,NP90..RFL199601

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-10070iEP9#..CARAT,GLZS,GLZV,REMIX,RFLF,RFLX; EP91,NP90..RFL199601

main45517-10080iEP91,NP90..RFL199601

9010510311

main90105-10311

9017012018

main90170-12018

9017910088

main90179-10088

9538103020

main95381-03020

16 parts on this diagram · 3 diagrams in section
