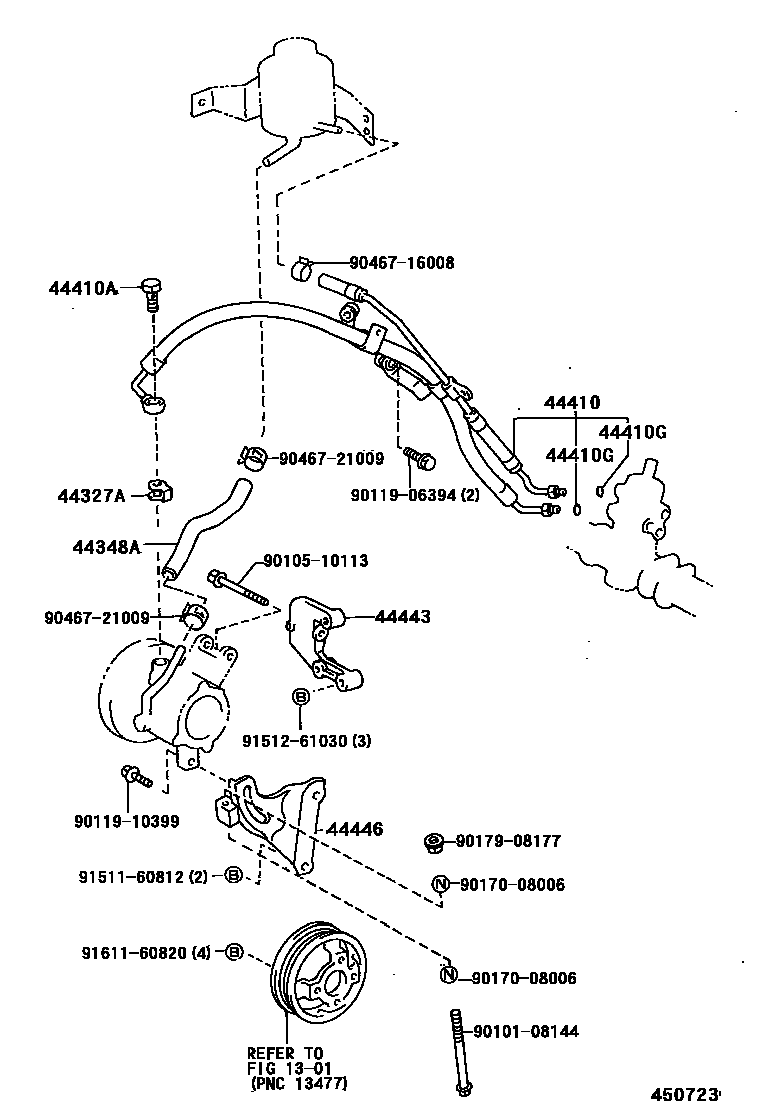

POWER STEERING TUBE

0001 1 0003 1 0004 1

1301CRANKSHAFT & PISTON

→ Go to FIG 13-01

44327AGASKET, PRESSURE PORT, NO.1

main44327-12010iEP9#,NP90199601

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-10071iNP90199601

main44348-10110iEP9#..CARAT,GLZS,REMIX,RFL,RFLF,RFLX199601

main44348-10130iEP91..GLZV199601

44410TUBE ASSY, PRESSURE FEED

main44410-10111iEP9#..CARAT,GLZS,REMIX,RFL,RFLF,RFLX199601

main44410-10151iNP90199601

main44410-10200iEP91..GLZV199601

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main90401-16008iEP9#,NP90199601

44410GRING, O(FOR PRESSURE FEED TUBE)

main90301-07009×2iEP9#,NP90199601

44443BRACKET, PUMP

main44443-10030iEP9#199601

main44443-16030iNP90199601

44446STRUT, ADJUSTING

main44446-10050iEP9#..CARAT,GLZS,REMIX,RFL,RFLF,RFLX199601

main44446-10060iEP91..GLZV199601

9010108144

main90101-08144

9010510113

main90105-10113

9011906394

main90119-06394

9011910399

main90119-10399

9017008006

main90170-08006

9017908177

main90179-08177

9046716008

main90467-16008

9046721009

main90467-21009

9151160812

main91511-60812

9151261030

main91512-61030

9161160820

main91611-60820

19 parts on this diagram · 3 diagrams in section
