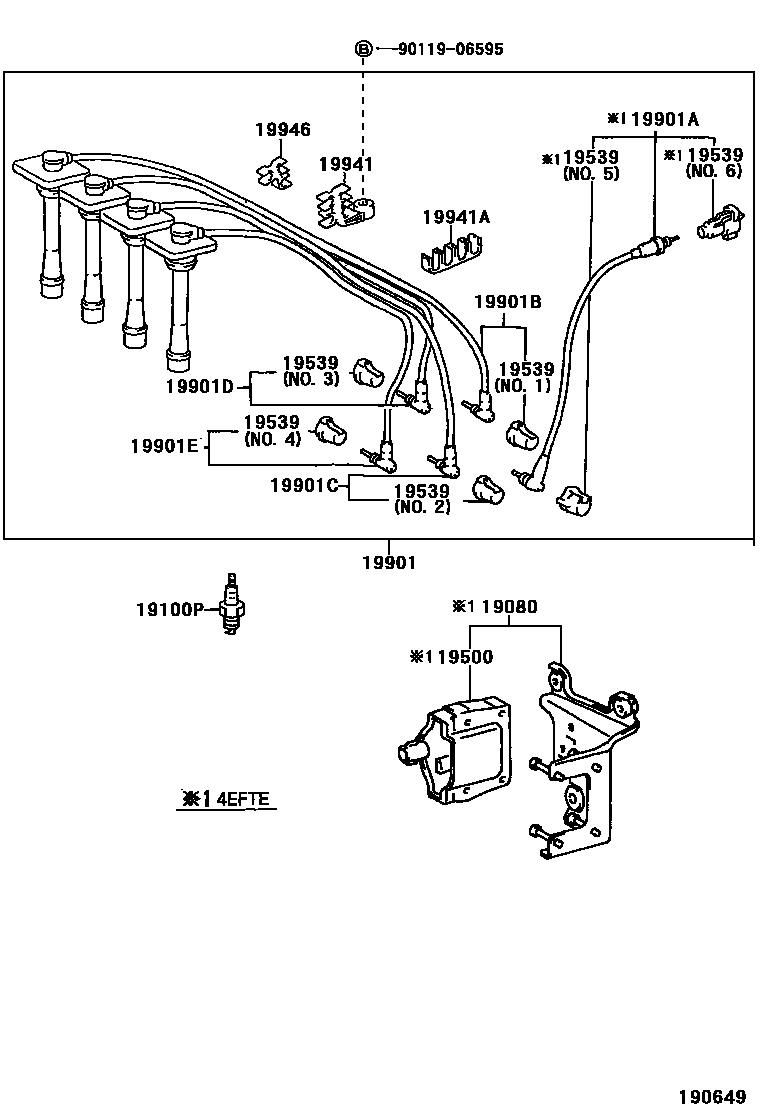

IGNITION COIL & SPARK PLUG / GLOW PLUG

0001 1 0003 1 0004 1

19080COIL ASSY, W/BRACKET & CORD

main19080-11020i4EFTE..EP91199601

19100PPLUG, SPARK

main90919-01164i4EFE..EP9#199601-199712

main90919-01178i4EFTE..EP91199601

sub90919-01210

main90919-01192i4EFE..EP9#199712

19500COIL ASSY, IGNITION

main90919-02197i4EFTE..EP91199601

main90919-02220i4EFE..EP9#199712

main90919-02226i4EFE..EP9#199712

19539HOLDER, RESISTIVE CODE, NO.4

main19531-74010i4EFTE..EP91199601

main19539-11020i4EFE..EP9#199712

main19539-11020i4EFE..EP9#199601-199712

main19539-11030i4EFE..EP9#199601-199712

main19539-46010i4EFTE..EP91199601

main19539-50010i4EFTE..EP91199601

main19539-70010i4EFTE..EP91199601

main19539-74010i4EFTE..EP91199601

19901CORD SET, COIL & SPARK, W/RESISTIVE

main90919-21587i4EFTE..EP91199601

main90919-22373i4EFE..EP9#199601-199712

sub90919-22420

main90919-22395i4EFE..EP9#199712

19901ACORD, COIL RESISTIVE

main19590-11020i4EFTE..EP91199601

19901BCORD, SPARK PLUG RESISTIVE, NO.1

main90919-15423i4EFE..EP9#199601-199712

sub90919-15594

main90919-15430i4EFTE..EP91199601

sub90919-15340

main90919-15510i4EFE..EP9#199712

19901CCORD, SPARK PLUG RESISTIVE, NO.2

main90919-15424i4EFE..EP9#199601-199712

sub90919-15595

main90919-15431i4EFTE..EP91199601

sub90919-15341

main90919-15511i4EFE..EP9#199712

19901DCORD, SPARK PLUG RESISTIVE, NO.3

main90919-15425i4EFE..EP9#199601-199712

sub90919-15596

main90919-15432i4EFTE..EP91199601

sub90919-15342

main90919-15512i4EFE..EP9#199712

19901ECORD, SPARK PLUG RESISTIVE, NO.4

main90919-15202i4EFE..EP9#199601-199712

sub90919-15589

main90919-15343i4EFTE..EP91199601

main90919-15513i4EFE..EP9#199712

19941CLAMP, RESISTIVE CORD, NO.1

main90929-01258i4EF#..EP9#199601

19941ACLAMP(FOR RESISTIVE CORD)

main90464-00559i4EF#..EP9#199601-199712

19946CLAMP, RESISTIVE CORD, NO.3

main90464-00561i4EF#..EP9#199601

9011906595

main90119-06595

14 parts on this diagram · 3 diagrams in section
