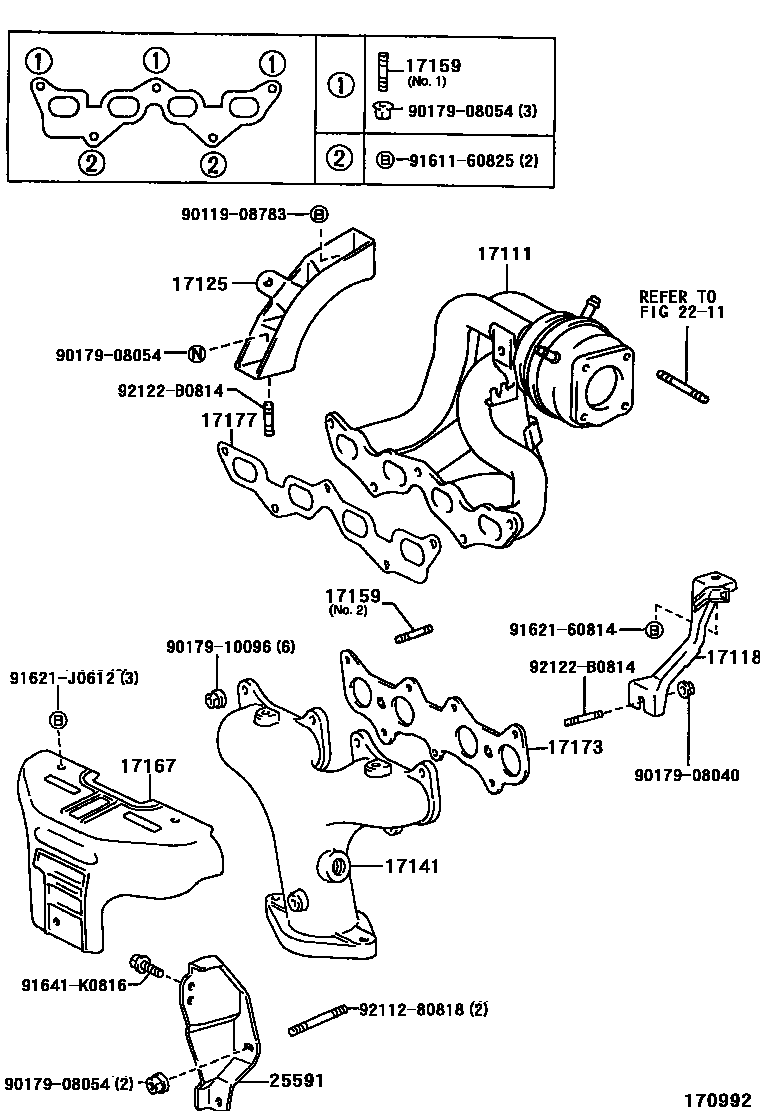

MANIFOLD

0001 1 0002 1 0003 1 0004 1 0005 1

17111MANIFOLD, INTAKE

main17101-11262i4EFTE..EP91199601-199907

main17101-11350i4EFE..EP9#199601-199703

main17101-11370i4EFE..EP9#199703-199907

main17101-55090i1N..NP90..5F199601

main17101-55100i1N..NP90..4FC199601

17118STAY, MANIFOLD

main17118-11170i4EFTE..EP91199601

main17118-11340i4EFE..EP91199601

main17118-11350i4EFE..EP95199601

main17118-55030i1N..NP90199601

17125STAY, SURGE TANK, NO.1

main17125-11060i4EF#..EP9#199601

17141MANIFOLD, EXHAUST

main17141-11180i4EFTE..EP91199601

main17141-11300i4EFE..EP91199601

main17141-55070i1N..NP90..5F199601

main17141-55080i1N..NP90..4FC199601

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90116-10196i4EF#..EP9#199601

main92112-61040i1N..NP90199601

main92122-60822i1N..NP90199601

main92132-60825i4EF#..EP9#199601

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-11230i4EFTE..EP91199601

main17167-11300i4EFE..EP95199601

main17167-11310i4EFE..EP91199601

main17167-55021i1N..NP90199601

main17167-55031i1N..NP90..5F199601

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-11040i4EF#..EP9#199601

main17173-55010i1N..NP90199601

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-11070i4EF#..EP9#199601

main17177-55012i1N..NP90199601

2211

25591BRACKET, MANIFOLD SUPPORT

main25591-11030i4EFTE..EP91199601

main25591-11070i4EFE..EP95199601

main25591-11080i4EFE..EP91199601

9011908783

main90119-08783

9017908040

main90179-08040

9017908054

main90179-08054

9017910096

main90179-10096

9161160825

main91611-60825

9162160814

main91621-60814

91621J0612

main91621-J0612

91641K0816

main91641-K0816

9211280818

main92112-80818

92122B0814

main92122-B0814

20 parts on this diagram · 5 diagrams in section
