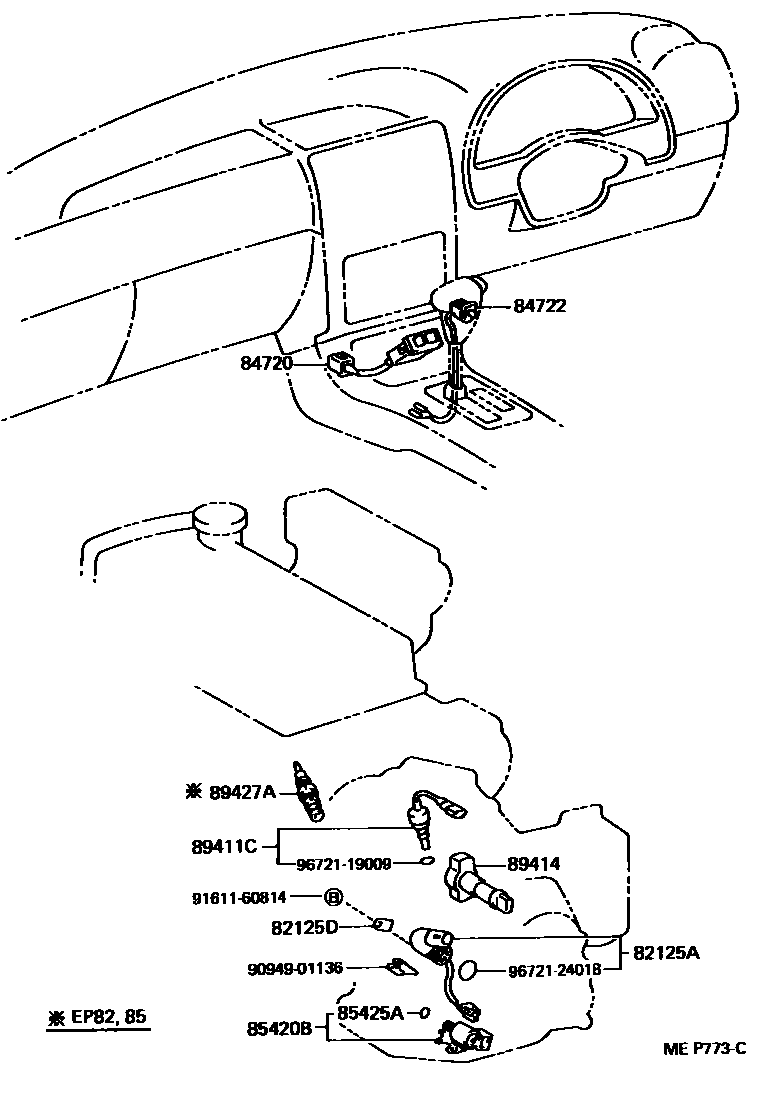

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

82125AWIRE, TRANSMISSION

main82125-20160iEP82..4FC..TBO199201-199502

main82125-20170iEP8#,NP80..4FC198912-199201

main82125-20220iEP82..4FC..TBO199502-199601

main82125-20240iEP8#..4FC..EFI199510-199601

82125DPLATE, TRANSMISSION WIRE LOCK

main33485-30020iEP8#,NP80..4FC198912-199601

84720SWITCH ASSY, PATTERN SELECT

main84720-10040iEP82..4FC..TBO199201-199601

84722SWITCH, TRANSMISSION CONTROL

main84722-10020-03iEP8#,NP80..4FC199011-199405

GRAY,TRIM1#

main84722-10020-06iEP85,NP80..4FC..(SOLL,X,XLTD)199011-199201

SABLE,TRIM4#

main84722-10020-14iEP82..4FC..(GI,GT,SI)199011-199201

DARK BLUE,TRIM8#

main84722-10020-E0iEP8#,NP80..4FC..(SOLL,XLTD)199201-199405

OAK,TRIM4#

main84722-16070-B0iEP8#,NP80..4FC199405-199601

GRAY,TRIM1#

main84722-20060-03iEP82,NP80..4FC;EP85..5D..4FC..XLTD198912-199011

GRAY,TRIM1#

main84722-20060-06iEP85,NP80..5D..4FC..(X,XLTD)198912-199011

SABLE,TRIM4#

main84722-20060-14iEP82..4FC..(GI,GT,SI)198912-199011

DARK BLUE,TRIM8#

85420BSOLENOID ASSY, TRANSMISSION

main85420-10011iEP8#,NP80..4FC..(DSL,EFI)199201-199510

main85420-12062iEP82..4FC..TBO199201-199502

main85420-20140iEP82..4FC..TBO199502-199601

main85420-20180iEP8#..4FC..EFI199510-199601

main85420-22080×2iEP82..4FC..TBO199201-199502

NO.1,NO.2

main85420-30200×2iEP82..4FC..TBO199502-199601

NO.1,NO.2

85425ARING, O (FOR OVERDRIVE SOLENOID)

main90301-06004iEP8#,NP80..4FC198912-199201

89411CSENSOR, SPEED

main89411-20040iEP82..4FC..TBO199201-199601

89414ROTOR, SENSOR

main89414-12010iEP82..4FC..TBO199201-199601

89427ASWITCH, TEMPERATURE

main89427-10040iEP8#..4FC..EFI199201-199405

main89427-12070iEP82..4FC198912-199201

main89427-12090iEP85..4FC198912-199201

9094901136

main90949-01136

9161160814

main91611-60814

9672119009

main96721-19009

9672124018

main96721-24018

13 parts on this diagram · 1 diagram in section
