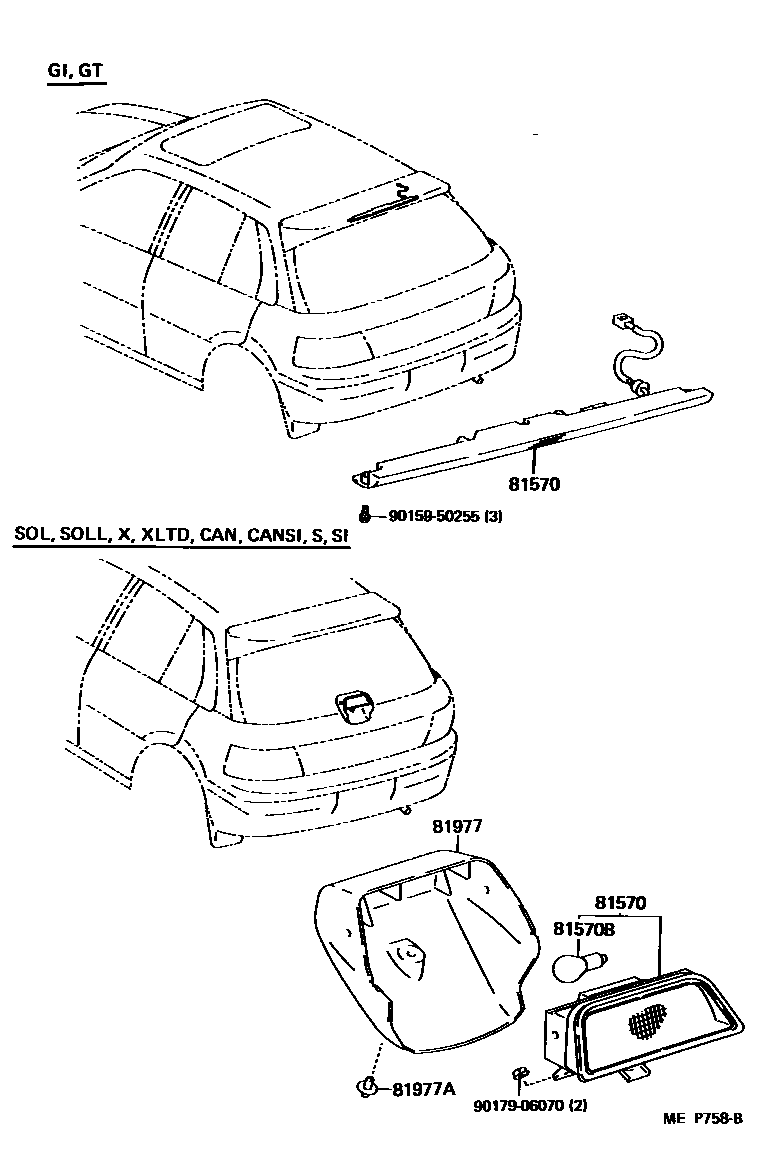

CENTER STOP LAMP

0001 1 0002 1

81570LAMP ASSY, CENTER STOP

main81570-10020iEP82..GI,GT198912-199601

main81570-10030iEP8#..CAN,CANSI,S,SI,SOL,SOLL,X,XLTD199009-199201

main81570-10050iEP8#..S199201-199601

main81570-10060iEP8#,NP80..CAN,SOL,SOLL,XLTD199201-199601

81570BBULB (FOR CENTER STOP LAMP)

main90981-11039iEP8#,NP80..CAN,SOL,SOLL,XLTD199201-199601

main99132-11270iEP8#..CAN,CANSI,S,SI,SOL,SOLL,X,XLTD199009-199201

81977COVER, CENTER STOP LAMP

main81977-10010-03iEP8#..CAN,CANSI,S,SI,SOL,SOLL,X,XLTD199009-199201

GRAY,TRIM1#

main81977-10010-04iEP82..S,SI,SOLL199110-199112

BLUE,TRIM8#

main81977-10010-06iEP8#..SOLL,X,XLTD199009-199201

SABLE,TRIM4#

main81977-10020-B0iEP8#,NP80..CAN,SOL,SOLL,XLTD199201-199601

GRAY,TRIM1#

main81977-10020-E0iEP8#,NP80..SOLL,XLTD199201-199405

ROSEWOOD,TRIM4#

81977ACLIP (FOR CENTER STOP LAMP)

main90467-07071-03×3iEP85;EP82..5D..(SOLL,X)199006-199009

SHADOW GRAY,TRIM1#

main90467-07071-14×3iEP82..S,SI199009-199110

BLUE,TRIM8#

main90467-07071-16×3iEP85;EP82..5D..(SOLL,X)199006-199009

SABLE,TRIM4#

main90467-07071-B4×3iEP8#..CAN,CANSI,S,SI,SOL,SOLL,X,XLTD199009-199201

SHADOW GRAY,TRIM1#

9015950255

main90159-50255

9017906070

main90179-06070

6 parts on this diagram · 2 diagrams in section
