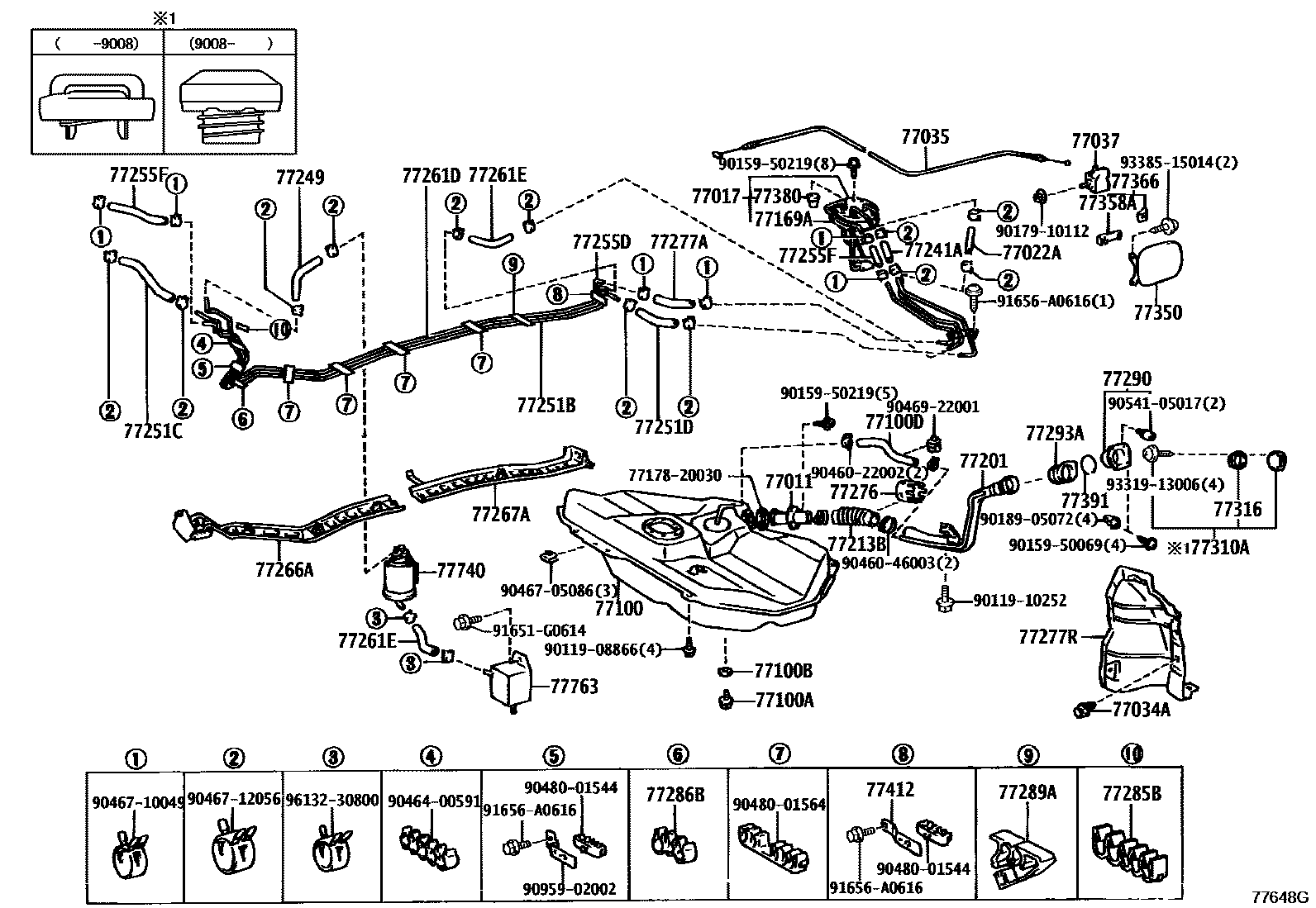

FUEL TANK & TUBE

0001 1 0002 1 0004 1 0005 1

77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER

main77011-10050iEP82,NP80198912-199601

main77011-10060iEP85199008-199601

main77011-10070iEP85199008-199601

sub77011-10060

77017TUBE SUB-ASSY, FUEL AND EVAPORATION VENT

main77017-10070iEP82..SOL,SOLL199009-199010

sub77017-10071

main77017-10070iEP82..CAN,S,X198912-199010

sub77017-10071

main77017-10071iEP82..SOL,SOLL199010-199201

sub77017-10161

main77017-10090iEP82..SOL,SOLL198912-199010

sub77017-10091

main77017-10091iEP82..SOL,SOLL199010-199201

main77017-10140iNP80..X198912-199010

sub77017-16150

main77017-10150iNP80..SOL198912-199010

sub77017-16140

main77017-10180iEP82..SOL,SOLL198912-199010

sub77017-10181

main77017-10181iEP82..SOL,SOLL199010-199201

main77017-10190iEP82..SOL,SOLL199008-199010

sub77017-10191

main77017-10190iEP82..CAN,S,X198912-199010

sub77017-10191

main77017-10191iEP82..CAN,S,X199010-199201

sub77017-10101

main77017-10191iEP82..CAN,S,X199010-199201

sub77017-10101

main77017-16140iNP80..SOL199010-199509

main77017-16150iNP80..X,XLTD199010-199509

77022AHOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)

main95333-06020iEP82..CBR198912-199509

sub95337-06020

77034ACRIP (FOR FUEL TANK FILLER PIPE)

main90467-07109iEP8#,NP80198912-199601

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-10050iEP8#,NP80..CAN,CANSI,GI,GT,S,SI,SOLL,X,XLTD198912-199201

CYUHATSU

main77035-10050iEP8#,NP80199201-199601

77037LOCK SUB-ASSY, FUEL FILLER OPENING LID

main77037-10010iEP8#,NP80..CAN,CANSI,GI,GT,S,SI,SOLL,X,XLTD198912-199601

77100TANK ASSY, FUEL

main77001-10270iEP82..CBR198912-199201

sub77001-10310

main77001-10280iEP82..EFI,TBO198912-199201

sub77001-10320

main77001-10320iEP82199201-199601

sub77001-10921

main77001-10340iEP85199008-199601

main77001-10919iEP82..CBR198912-199201

main77001-10920iEP82..CAN,S;EP82..5D..4F;EP82..5D..3FC..SOLL199201-199601

sub77001-10921

main77001-10920iNP80198912-199509

sub77001-10921

main77001-10920iEP82..3D..SOLL..EFI;EP82..3D..4F..SOL..EFI;EP82..(3FC,4FC,5F)..(CANSI,GI,GT,SI,SOL,XLTD)..(EFI,TBO)198912-199601

sub77001-10921

77100APLUG(FOR FUEL TANK)

main90105-12116iNP80198912-199308

main90105-12116iEP85199008-199308

main90105-12116iEP82..CAN,S;EP82..5D..4F;EP82..5D..3FC..SOLL199201-199308

77100BGASKET(FOR FUEL TANK)

main90430-12245iEP82..CAN,S;EP82..5D..4F;EP82..5D..3FC..SOLL199201-199308

main90430-12245iNP80198912-199308

main90430-12245iEP85199008-199308

77100DHOSE, FUEL, NO.1(FOR FUEL TANK)

main95311-11022iEP85199008-199601

sub95311-11024

main95311-13028iEP82,NP80198912-199601

77169AGASKET, FUEL SUCTION TUBE SET

main77169-10020iEP82,NP80..CBR,DSL198912-199010

main77169-16030iEP82,NP80..CBR,DSL199010-199509

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-10130iEP82198912-199008

sub77201-10180

sub77310-16011

main77201-10140iNP80198912-199008

sub77201-10190

sub77310-16011

main77201-10150iEP82..CAN,S;EP82..5D..4F;EP82..5D..3FC..SOLL199201-199601

main77201-10150iEP82..5F..GI199201-199601

main77201-10160iEP85199008-199601

main77201-10170iEP85199008-199601

main77201-10180iEP82199008-199601

main77201-10190iEP82,NP80199008-199601

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-10070iEP82,NP80198912-199601

main77213-10080iEP85199008-199601

77241AHOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)

main95333-06020iEP82..CBR198912-199201

sub95337-06020

main95333-08011iEP85199008-199601

main95333-08020iNP80198912-199509

sub95337-08020

77249HOSE, FUEL EMISSION

main77249-10050iEP8#198912-199601

77251BTUBE, FUEL MAIN

main77251-10210iEP82..CBR198912-199201

main77251-10220iEP82..EFI,TBO198912-199601

main77251-10260iNP80198912-199509

main77251-10290iEP85199008-199201

main77251-10300iEP85199201-199601

77251CHOSE, FUEL, NO.1(FOR FUEL MAIN TUBE)

main77259-10030iEP82..CBR199002-199201

sub77259-10060

main77259-10030iEP82..CBR199002-199201

sub77259-10060

main77259-10040iNP80199002-199509

main77419-10030iEP85..CBR199008-199601

main77419-10030iEP85..EFI199008-199601

main95333-06020iEP82..CBR198912-199201

sub95337-06020

main95333-08020iNP80198912-199002

sub95337-08020

77251DHOSE, FUEL, NO.2(FOR FUEL MAIN TUBE)

main95333-08020iNP80198912-199509

sub95337-08020

77255DTUBE, FUEL RETURN

main77255-10180iEP82..CBR198912-199201

main77255-10190iEP82..EFI,TBO198912-199601

main77255-10230iNP80198912-199509

main77255-10260iEP85199008-199201

main77255-10280iEP85199201-199601

77255FHOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE)

main90445-12247iEP82..EFI,TBO199004-199601

main90445-12258iEP85199201-199304

sub90445-12247

main90447-19001iEP85199008-199201

main95333-04010iEP82..CBR198912-199201

main95333-04040iEP82..CBR198912-199201

main95333-06010iNP80198912-199509

main95333-06040iEP82..EFI,TBO198912-199004

77261DTUBE, FUEL TANK TO CANISTER

main77261-10150iEP82198912-199601

77261EHOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE)

main77419-10010iEP82199002-199308

main77419-10040iEP82199308-199601

main95333-06020iEP82198912-199002

sub95337-06020

77266APROTECTOR, FUEL TUBE, NO.1

main77266-10030iEP8#,NP80198912-199601

77267APROTECTOR, FUEL TUBE, NO.2

main77267-10050iEP8#,NP80198912-199601

77276PROTECTOR, FUEL HOSE

main77276-10020iEP82,NP80198912-199601

main77276-10040iEP85199008-199601

77277AHOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)

main77279-10010iEP8#..CBR199002-199201

sub95334-04013

main77279-10020iEP85199002-199212

sub95333-06020

main77279-10030iNP80199002-199509

sub95333-06020

main77279-10050iEP8#199202-199308

sub95333-06020

main77279-10060iEP8#199308-199601

main95333-04020iEP82..CBR198912-199002

main95333-06020iEP82..EFI,TBO198912-199002

sub95337-06020

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-10030iEP8#,NP80..CAN,CANSI,S,SI,SOL,SOLL,X,XLTD198912-199601

main77277-10040iEP82..GI,GT198912-199601

77285BCLAMP, FUEL TUBE W/GROMMET, NO.1

main77285-10010iEP8#,NP80198912-199601

77286BCLAMP, FUEL TUBE W/GROMMET, NO.2

main77286-10010iEP8#..CBR198912-199201

main77286-10020iEP8#..EFI,TBO198912-199601

77289HOLDER, FUEL TANK PIPE SETTING

main77289-10011iNP80198912-199509

77289ACLAMP, FUEL TUBE W/GROMMET, NO.3

main77289-10020iEP8#..CBR198912-199201

main77289-10030iEP8#,NP80..DSL,EFI,TBO198912-199601

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77290-10010iEP8#,NP80..CAN,CANSI,GI,GT,S,SI,SOLL,X,XLTD198912-199601

main77290-10020iEP82,NP80..SOL198912-199201

sub77290-10010

77293ASHIELD, FUEL TANK FILLER PIPE, NO.3

main77293-10010iEP82,NP80..SOL198912-199201

main77293-10020iEP8#,NP80..CAN,CANSI,GI,GT,S,SI,SOLL,X,XLTD198912-199601

77310ACAP ASSY, FUEL TANK

main77310-12100iEP82198912-199008

main77310-16011iEP8#199008-199601

sub77310-12140

main77310-32011iNP80199008-199509

main77310-35061iNP80198912-199008

77316GASKET, FUEL TANK CAP

main77316-12050iEP82,NP80198912-199008

main77316-16010iEP8#,NP80199008-199601

77350LID ASSY, FUEL FILLER OPENING

main77350-10050iEP8#,NP80198912-199601

main77350-10060iEP82,NP80..SOL198912-199201

77358ASTOPPER, FUEL FILLER OPENING LID

main77358-10040iEP82,NP80..SOL199007-199601

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-10020iEP8#,NP80..CAN,CANSI,GI,GT,S,SI,SOLL,X,XLTD198912-199601

77380VALVE ASSY, FUEL CUT OFF

main77380-14020iEP82,NP80..CBR,DSL198912-199010

main77380-26010iEP85199008-199601

77391RING, FUEL INLET BOX

main77391-32010iEP8#,NP80198912-199601

77412SUPPORT, FUEL TUBE GROMMET, NO.2

main77412-10010iEP8#,NP80198912-199601

77740CANISTER ASSY, CHARCOAL

main77704-10130iEP8#198912-199201

main77704-16160iEP8#199201-199601

77763CASE, CHARCOAL CANISTER DRAIN

main77763-10010iEP85..4FC;EP82..ATM..(EFI,TBO)198912-199601

main77763-10020iEP85..5F;EP82..MTM..EFI;EP82..(3FC,4F,5F)..(CBR,TBO)198912-199601

7717820030GASKET, FUEL TANK FILLER PIPE, LOWER

main77178-20030

9011908866

main90119-08866

9011910252

main90119-10252

9015950069

main90159-50069

9015950219

main90159-50219

9017910112

main90179-10112

9018905072

main90189-05072

9046022002

main90460-22002

9046046003

main90460-46003

9046400591

main90464-00591

9046705086

main90467-05086

9046710049

main90467-10049

9046712056

main90467-12056

9046922001

main90469-22001

9048001544

main90480-01544

9048001564

main90480-01564

9054105017

main90541-05017

9095902002

main90959-02002

91651G0614

main91651-G0614

91656A0616

main91656-A0616

9331913006

main93319-13006

9338515014

main93385-15014

9613230800

main96132-30800
