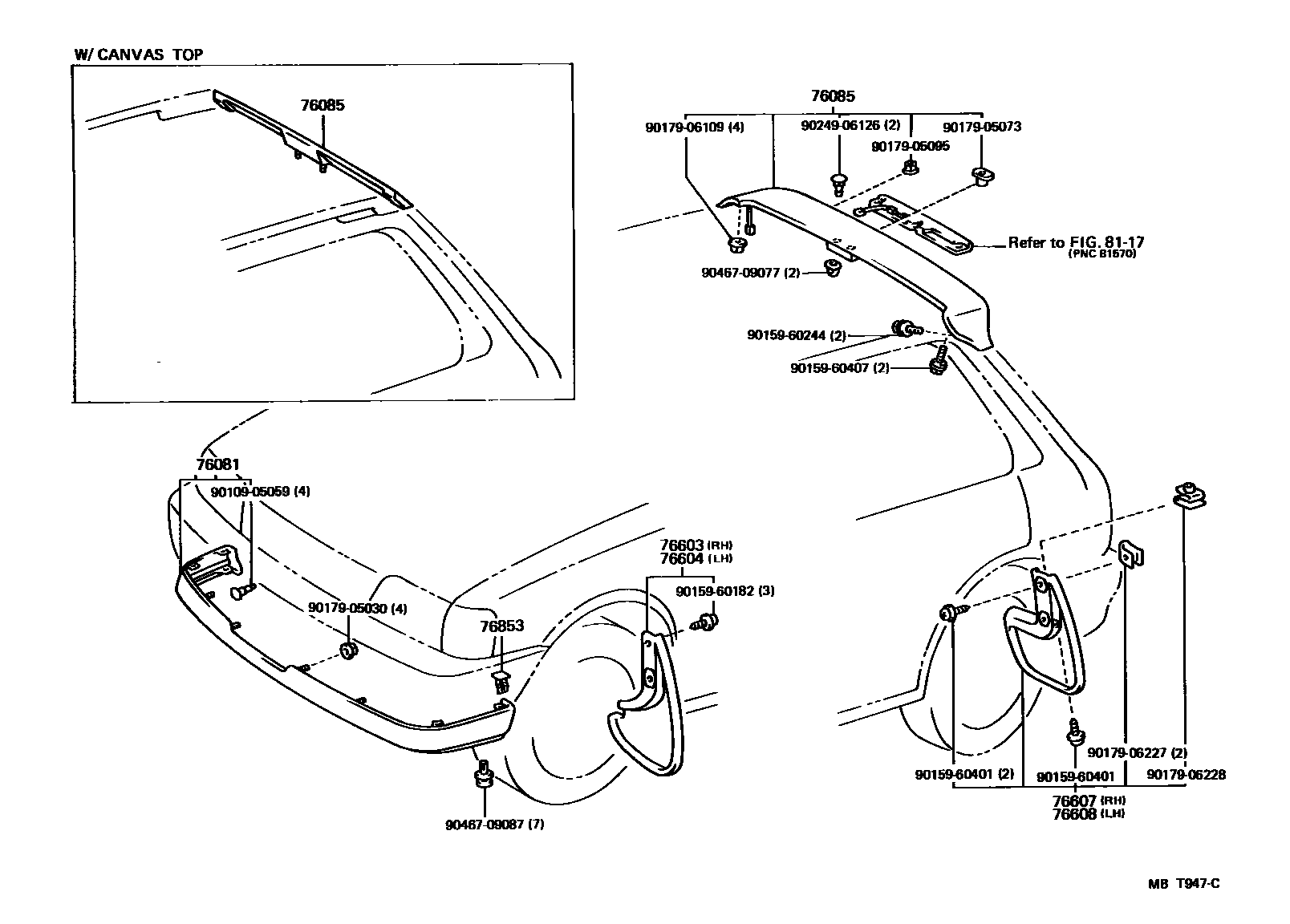

MUDGUARD & SPOILER

0001 1 0002 1

76081SPOILER SUB-ASSY, FRONT

main76081-10050-02iEP82..GI; EP82..TBO198912-199201

RED MICA,3H4

main76081-10050-03iEP82..GI; EP82..TBO198912-199201

BLUISH GRAY,M,185

main76081-10050-04iEP82..TBO198912-199201

GRAYSH BLUE,8H1

main76081-10050-07iEP82..GI; EP82..TBO198912-199201

BLACKISH GREEN,M,6L2

main76081-10050-08iEP82..GI; EP82..TBO198912-199201

SUPER WHITE,040

main76081-10070iEP82..GI; EP82..TBO198912-199201

76085SPOILER SUB-ASSY, REAR

main76085-10120-02iEP82..GI; EP82..TBO198912-199201

RED MICA,3H4

main76085-10120-03iEP82..GI; EP82..TBO198912-199201

BLUISH GRAY M,185

main76085-10120-04iEP82..TBO198912-199201

GRAYSH BLUE,8H1

main76085-10120-07iEP82..GI; EP82..TBO198912-199201

BLACKISH GREEN M,6L2

main76085-10120-08iEP82..GI; EP82..TBO198912-199201

SUPER WHITE,040

main76085-10120-A0iEP82..GI,GT199201-199601

SUPER WHITE 2,040

main76085-10120-B0iEP82..GI,GT199201-199405

BLUISH GRAY M,182

main76085-10120-B1iEP82..GI,GT199405-199601

SILVER M,199

main76085-10120-C0iEP82..GI199201-199601

BLACK M,205

main76085-10120-G0iEP82..GI,GT199201-199405

GREEN M,TRIM1#&6M6

main76085-10120-H0iEP82..GI,GT199405-199601

TURQUOISE M.M,746

main76085-10130-02iEP82..CAN,CANSI198912-199405

SUPER RED 2,3E5

main76085-10130-03iEP82..CAN,CANSI198912-199201

BLUISH GRAY M,186 ,541 ,8H1

main76085-10130-08iEP82..CAN,CANSI198912-199405

SUPER WHITE 2,040

main76085-10130-B0iEP82..CAN199201-199405

BLUISH GRAY M,182

main76085-10140-A0iEP8#..S199201-199601

SUPER WHITE 2,040

main76085-10140-B0iEP8#..S199201-199405

BLUISH GRAY M,182

main76085-10140-B1iEP8#..S199405-199601

SILVER M,199

main76085-10140-C0iEP82..3D..SOLL199306-199307

main76085-10140-D0iEP8#..S199201-199405

SUPER RED 2,3E5

main76085-10140-D1iEP82..3D..SOLL199306-199307

main76085-10140-G0iEP8#..S199201-199405

GREEN M,6M6

main76085-10140-H0iEP8#..S199405-199601

TURQUOISE M.M,746

main76085-10140-J0iEP8#..S199201-199405

DARK BLUE M M,8G5

main76085-10140-J1iEP8#..S199405-199601

DARK BLUE M.M,8K0

76603MUDGUARD SUB-ASSY, FRONT FENDER, RH

main76621-19165iEP8#,NP80..CAN,CANSI,S,SI,SOL,SOLL,X,XLTD199003-199601

76604MUDGUARD SUB-ASSY, FRONT FENDER, LH

main76622-19165iEP8#,NP80..CAN,CANSI,S,SI,SOL,SOLL,X,XLTD199003-199601

76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH

main76625-19355iEP8#,NP80..CAN,CANSI,S,SI,SOL,SOLL,X,XLTD199004-199405

main76625-19356iEP8#,NP80..S,SOL,SOLL,XLTD199405-199601

76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH

main76626-19365iEP8#,NP80..CAN,CANSI,S,SI,SOL,SOLL,X,XLTD199004-199405

main76626-19366iEP8#,NP80..S,SOL,SOLL,XLTD199405-199601

76853RETAINER, FRONT SPOILER, UPPER RH

main76853-10010×6iEP82..GI,GT198912-199201

8117CENTER STOP LAMP

→ Go to FIG 81-17

9010905059

main90109-05059

9015960182

main90159-60182

9015960244

main90159-60244

9015960401

main90159-60401

9015960407

main90159-60407

9017905030

main90179-05030

9017905073

main90179-05073

9017905095

main90179-05095

9017906109

main90179-06109

9017906227

main90179-06227

9017906228

main90179-06228

9024906126

main90249-06126

9046709077

main90467-09077

9046709087

main90467-09087

22 parts on this diagram · 2 diagrams in section
