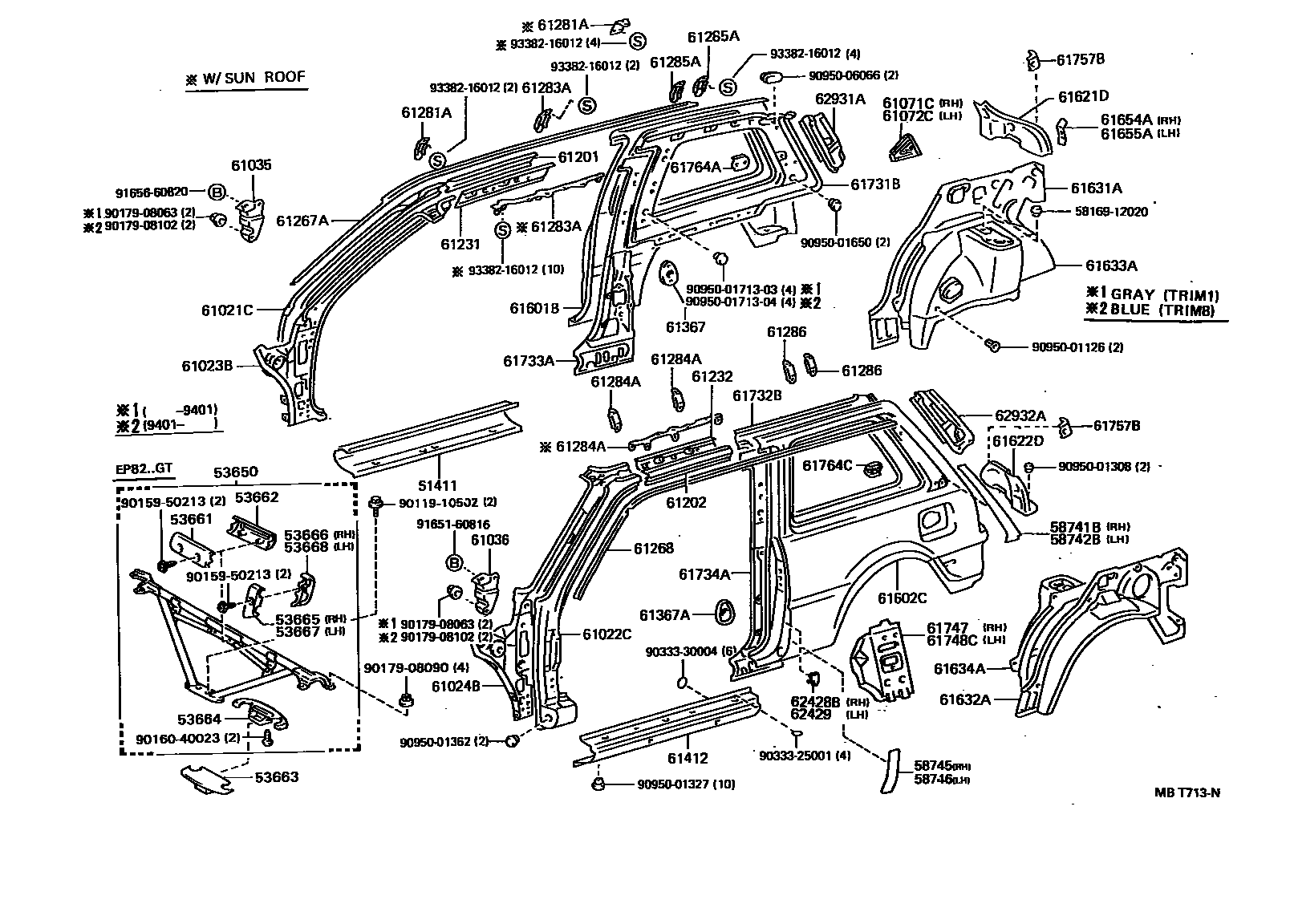

SIDE MEMBER

0001 1 0002 1

53650BRACE ASSY, REAR SUSPENSION

main53650-10010-B0iEP82..TBO199212-199601

GRAY,TRIM1#

53661COVER, REAR SUSPENSION BRACE, UPPER NO.1

main53661-10010-B0iEP82..TBO199212-199601

GRAY,TRIM1#

53662COVER, REAR SUSPENSION BRACE, UPPER NO.2

main53662-10010-B0iEP82..TBO199212-199601

GRAY,TRIM1#

53663COVER, REAR SUSPENSION BRACE, LOWER NO.1

main53663-10010-B0iEP82..TBO199212-199601

GRAY,TRIM1#

53664COVER, REAR SUSPENSION BRACE, LOWER NO.2

main53664-10010-B0iEP82..TBO199212-199601

GRAY,TRIM1#

53665COVER, REAR SUSPENSION BRACE, RH NO.1

main53665-10010-B0iEP82..TBO199212-199601

GRAY,TRIM1#

53666COVER, REAR SUSPENSION BRACE, RH NO.2

main53666-10010-B0iEP82..TBO199212-199601

GRAY,TRIM1#

53667COVER, REAR SUSPENSION BRACE, LH NO.1

main53667-10010-B0iEP82..TBO199212-199601

GRAY,TRIM1#

53668COVER, REAR SUSPENSION BRACE, LH NO.2

main53668-10010-B0iEP82..TBO199212-199601

GRAY,TRIM1#

58741BPROTECTOR, QUARTER PANEL, RH

main58741-10030iEP8#,NP80..3D..(CAN,SOL,SOLL)198912-199601

58742BPROTECTOR, QUARTER PANEL, LH

main58742-10030iEP8#,NP80..3D..(CAN,SOL,SOLL)198912-199601

58745PROTECTOR, QUARTER PANEL, FRONT RH

main58741-10040iEP8#,NP80..5D199405-199601

main58745-10020iEP82..GI199505-199512

58746PROTECTOR, QUARTER PANEL, FRONT LH

main58742-10040iEP8#,NP80..5D199405-199601

main58746-10020iEP82..GI199505-199512

61021CPILLAR SUB-ASSY, FRONT BODY, RH

main61021-10130iEP8#,NP80..GI,S,SI,SOL,SOLL,X,XLTD198912-199102

main61021-10131iEP82..GI199505-199512

main61021-10140iEP82..CAN,CANSI198912-199102

main61021-10141iEP82..CAN,CANSI199102-199405

main61021-10170iEP82..GI; EP82..TBO198912-199102

W(REAR SPOILER)

main61021-10171iEP82..GI; EP82..TBO199102-199201

W(REAR SPOILER)

61022CPILLAR SUB-ASSY, FRONT BODY, LH

main61022-10220iEP8#,NP80..GI,S,SI,SOL,SOLL,X,XLTD198912-199102

main61022-10221iEP82..GI199505-199512

main61022-10230iEP82..CAN,CANSI198912-199102

main61022-10231iEP82..CAN,CANSI199102-199405

main61022-10260iEP82..GI; EP82..TBO198912-199102

W(REAR SPOILER)

main61022-10261iEP82..GI; EP82..TBO199102-199201

W(REAR SPOILER)

61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH

main61023-10110iEP8#,NP80198912-199601

main61023-10120iEP8#199009-199201

61024BPILLAR SUB-ASSY, FRONT BODY, INNER LH

main61024-10100iEP8#,NP80198912-199405

main61024-10110iEP85199008-199009

61035BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, RH

main61165-10040iEP82..3D..CBR199009-199201

61036BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, LH

main61166-10040iEP8#,NP80198912-199601

61071CREINFORCEMENT SUB-ASSY, SEAT BELT ANCER, UPPER RH

main61071-10030iEP8#,NP80..3D198912-199601

main61071-10040iEP8#,NP80..5D198912-199601

61072CREINFORCEMENT SUB-ASSY, SEAT BELT ANCER, UPPER LH

main61072-10030iEP8#,NP80..3D198912-199601

main61072-10040iEP8#,NP80..5D198912-199601

61201RAIL SUB-ASSY, ROOF SIDE, RH

main61211-10060iEP8#,NP80..3D198912-199601

main61211-10070iEP8#,NP80..5D198912-199601

61202RAIL SUB-ASSY, ROOF SIDE, LH

main61212-10060iEP8#,NP80..3D198912-199601

main61212-10070iEP8#,NP80..5D198912-199601

61231RAIL, ROOF SIDE, INNER RH

main61231-10130iEP8#,NP80..3D198912-199601

main61231-10150iEP8#,NP80..5D198912-199601

61232RAIL, ROOF SIDE, INNER LH

main61232-10130iEP8#,NP80..3D198912-199601

main61232-10150iEP8#,NP80..5D198912-199601

61267ACHANNEL, ROOF DRIP SIDE, REAR RH

main61267-10010iEP8#,NP80198912-199601

61268CHANNEL, ROOF DRIP SIDE, REAR LH

main61268-10010iEP8#,NP80198912-199601

61281ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.1

main61281-10020×2iEP8#..GI,GT,S,SI,X,XLTD198912-199405

main61281-10030iEP82..CAN,CANSI198912-199405

61283ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.3 RH

main61283-10030iEP8#..GI,GT,S,SI,X,XLTD198912-199405

main61283-10040iEP82..CAN,CANSI198912-199405

61284ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.3 LH

main61284-10030iEP8#..GI,GT,S199405-199601

main61284-10040iEP82..CAN,CANSI198912-199405

61285ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.4

main61285-10020×2iEP82..CAN,CANSI198912-199405

61286BRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.5

main61286-10010×2iEP82..CAN,CANSI198912-199405

61367REINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LOWER

main61367-14010iEP8#,NP80..3D198912-199601

61367AREINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LOWER RH

main61367-14010iEP8#,NP80..3D198912-199009

61411PANEL, ROCKER, OUTER RH

main61401-10040iEP8#,NP80..5D198912-199601

main61411-10150iEP8#,NP80..3D..(CBR,DSL,EFI)198912-199201

main61411-10160iEP82..GI; EP82..TBO198912-199201

61412PANEL, ROCKER, OUTER LH

main61402-10040iEP8#,NP80..5D198912-199601

main61412-10150iEP8#,NP80..3D..(CAN,S,SOL,SOLL)199201-199601

main61412-10160iEP82..GI; EP82..TBO198912-199201

61601BPANEL SUB-ASSY, QUARTER, RH

main61601-1C260iEP82,NP80..3D..SOL198912-199102

main61601-1C261iEP82,NP80..3D..SOL199102-199111

main61601-1C262iEP82,NP80..3D..SOL199111-199601

main61601-1C270iEP8#..3D..SOLL; EP82,NP80..3D..SOL198912-199102

main61601-1C271iEP8#..3D..SOLL; EP82,NP80..3D..SOL199102-199111

main61601-1C272iEP8#..3D..SOLL; EP82,NP80..3D..SOL199111-199601

main61601-1C300iEP8#..3D..(S,SI,XLTD)198912-199102

main61601-1C301iEP8#..3D..(S,SI,XLTD)199102-199111

main61601-1C302iEP8#..3D..(S,SI,XLTD)199111-199601

main61601-1C310iEP82..GI198912-199102

main61601-1C311iEP82..GI199102-199111

main61601-1C312iEP82..GI199505-199512

main61601-1C320iEP82..GI; EP82..TBO198912-199102

main61601-1C321iEP82..GI; EP82..TBO199102-199111

main61601-1C322iEP82..GI,GT199201-199601

main61601-1C330iEP82..CAN,CANSI198912-199102

main61601-1C331iEP82..CAN,CANSI199102-199111

main61601-1C332iEP82..CAN,CANSI199111-199405

main61601-1C340iEP82,NP80..5D..SOL198912-199102

main61601-1C341iEP82,NP80..5D..SOL199102-199601

main61601-1C350iEP8#,NP80..5D..(SI,SOLL,X,XLTD); NP80..5D..SOL198912-199102

main61601-1C351iNP80..5D..SOL199102-199201

61602CPANEL SUB-ASSY, QUARTER, LH

main61602-1C330iEP8#,NP80..3D..(SOL,SOLL)198912-199102

main61602-1C331iEP8#,NP80..3D..(SOL,SOLL)199102-199111

main61602-1C332iEP8#,NP80..3D..(SOL,SOLL)199111-199601

main61602-1C350iEP8#..3D..(S,SI,XLTD)198912-199102

main61602-1C351iEP8#..3D..(S,SI,XLTD)199102-199111

main61602-1C352iEP8#..3D..SOLL199312-199403

main61602-1C360iEP82..GI198912-199102

main61602-1C361iEP82..GI199102-199111

main61602-1C362iEP82..GI199111-199201

main61602-1C370iEP82..GI; EP82..TBO198912-199102

main61602-1C371iEP82..GI; EP82..TBO199102-199111

main61602-1C372iEP82..GI; EP82..TBO199111-199201

main61602-1C380iEP82..CAN,CANSI198912-199102

main61602-1C381iEP82..CAN,CANSI199102-199111

main61602-1C382iEP82..CAN,CANSI199111-199201

main61602-1C390iEP8#,NP80..5D198912-199102

main61602-1C391iEP8#,NP80..5D199102-199601

61621DTROUGH, BACK DOOR OPENING, RH

main61621-10030iEP8#,NP80198912-199601

61622DTROUGH, BACK DOOR OPENING, LH

main61622-10030iEP8#,NP80198912-199601

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61605-10070iEP82,NP80..3D..(DSL,EFI)199201-199210

main61605-10090iEP8#,NP80..5D198912-199012

main61605-10100iEP85..3D;EP82..TBO199201-199210

main61605-10110iEP8#,NP80..5D199210-199601

61632APANEL, QUARTER WHEEL HOUSE, OUTER LH

main61606-10050iEP82,NP80..3D..(DSL,EFI)199201-199210

main61606-10070iEP8#,NP80..5D198912-199012

main61606-10080iEP85..3D;EP82..TBO199201-199210

main61606-10090iEP8#,NP80..5D199210-199601

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61607-10030iEP82,NP80198912-199201

main61607-10040iEP85199012-199201

main61607-10050iEP85199008-199012

main61607-10060iEP82..TBO199212-199601

61634APANEL, QUARTER WHEEL HOUSE, INNER LH

main61608-10030iEP82,NP80198912-199201

main61608-10040iEP85199012-199201

main61608-10050iEP85199008-199012

main61608-10060iEP82..TBO199212-199601

61654ABRACKET, DECK SIDE TRIM, NO.2

main61654-10010iEP8#,NP80198912-199601

61655ABRACKET, DECK SIDE TRIM, NO.3

main61655-10010iEP8#,NP80198912-199601

61731BPANEL, ROOF SIDE, INNER RH

main61731-10700iEP82,NP80..3D..SOL198912-199009

main61731-10790iEP82..3D..(GI,GT,S,SI,SOLL)198912-199009

main61731-10800iEP82..3D..(GI,GT,S,SI); EP82..CAN,CANSI198912-199009

main61731-1C011iEP85..3D..SOLL;EP82..3D..(GI,S,SOLL)199212-199601

main61731-1C030iEP82,NP80..3D..SOL199009-199102

main61731-1C031iEP82,NP80..3D..SOL199102-199201

main61731-1C051iEP82,NP80..3D..SOL199201-199601

main61731-1C110iEP82,NP80..5D..SOL198912-199009

main61731-1C120iEP82,NP80..5D..(SI,SOLL,X)198912-199009

main61731-1C140iEP82,NP80..5D..SOL199009-199102

main61731-1C141iEP82,NP80..5D..SOL199102-199601

main61731-1C150iEP8#,NP80..5D..(SI,SOLL,X,XLTD)199009-199102

main61731-1C151iEP8#,NP80..5D..(SI,SOLL,X,XLTD)199102-199601

main61731-1C170iEP8#..3D..(GI,GT,S,SI,SOLL,XLTD)199009-199102

main61731-1C171iEP82..TBO199212-199601

main61731-1C190iEP85..3D..XLTD199008-199009

main61731-1C191iEP85..3D..XLTD;EP82..3D..(GI,GT,S,SI); EP85..S;EP82..CAN,CANSI199102-199601

61732BPANEL, ROOF SIDE, INNER LH

main61732-10700iEP82,NP80..3D..SOL198912-199009

main61732-10790iEP82..3D..(GI,GT,S,SI,SOLL)198912-199009

main61732-10800iEP82..3D..(GI,GT,S,SI); EP82..CAN,CANSI198912-199009

main61732-1C011iEP85..3D..SOLL;EP82..3D..(GI,GT,S,SOLL)199201-199212

main61732-1C030iEP82,NP80..3D..SOL199009-199102

main61732-1C031iEP82,NP80..3D..SOL199102-199201

main61732-1C051iEP82,NP80..3D..SOL199201-199601

main61732-1C110iEP82,NP80..5D..SOL198912-199009

main61732-1C120iEP82,NP80..5D..(SI,SOLL,X)198912-199009

main61732-1C140iEP82,NP80..5D..SOL199009-199102

main61732-1C141iEP82,NP80..5D..SOL199102-199601

main61732-1C150iEP8#,NP80..5D..(SI,SOLL,X,XLTD)199009-199102

main61732-1C151iEP8#,NP80..5D..(SI,SOLL,X,XLTD)199102-199601

main61732-1C170iEP85..3D199008-199009

main61732-1C171iEP82..TBO199212-199601

main61732-1C190iEP8#..3D..(GI,GT,S,SI,XLTD); EP82..(3FC,4F,4FC)..(CAN,CANSI)199009-199102

main61732-1C191iEP85..3D..XLTD;EP82..3D..(GI,GT,S,SI); EP85..S;EP82..CAN;EP82..4FC..CANSI199102-199601

61733APANEL, ROOF SIDE, INNER FRONT RH

main61733-10900iEP8#,NP80..3D198912-199210

main61733-10901iEP8#,NP80..3D199210-199601

61734APANEL, ROOF SIDE, INNER FRONT LH

main61734-10900iEP8#,NP80..3D198912-199009

main61734-10901iEP8#,NP80..3D199210-199601

61747BRACE, ROOF SIDE INNER TO WHEEL HOUSE, RH

main61747-10050iEP85199008-199201

61748CBRACE, ROOF SIDE INNER TO WHEEL HOUSE, LH

main61748-10050iEP85199008-199201

61757BRETAINER, DECK SIDE TRIM, LOWER

main61757-10020iEP8#,NP80198912-199601

61764APLATE, QUARTER WINDOW LOCK GUSSET

main61764-10020iEP8#..3D..(CAN,GI,GT,S,SOLL)199201-199601

61764CPLATE, QUARTER WINDOW LOCK GUSSET

main61764-10020iEP8#..3D..(CAN,CANSI,GI,GT,S,SI,SOLL,XLTD)198912-199601

62428BCOVER, CENTER PILLAR, RH

main62428-10010iEP8#,NP80..3D198912-199601

62429COVER, CENTER PILLAR SERVICE HOLE

main62428-10010iEP8#,NP80..3D198912-199601

62931ADUCT, QUARTER VENT, RH

main62903-10020iEP8#,NP80..3D198912-199601

main62903-10030iEP8#,NP80..5D198912-199601

62932ADUCT, QUARTER VENT, LH

main62904-10030iEP8#,NP80..3D198912-199009

main62904-10040iEP8#,NP80..5D198912-199601

5816912020BRACKET, FUEL TUBE

main58169-12020

9011910502

main90119-10502

9015950213

main90159-50213

9016040023

main90160-40023

9017908063

main90179-08063

9017908090

main90179-08090

9017908102

main90179-08102

9033325001

main90333-25001

9033330004

main90333-30004

9095001126

main90950-01126

9095001308

main90950-01308

9095001327

main90950-01327

9095001362

main90950-01362

9095001650

main90950-01650

909500171303

main90950-0171303

909500171304

main90950-0171304

9095006066

main90950-06066

9165160816

main91651-60816

9165660820

main91656-60820

9338216012

main93382-16012

79 parts on this diagram · 2 diagrams in section
