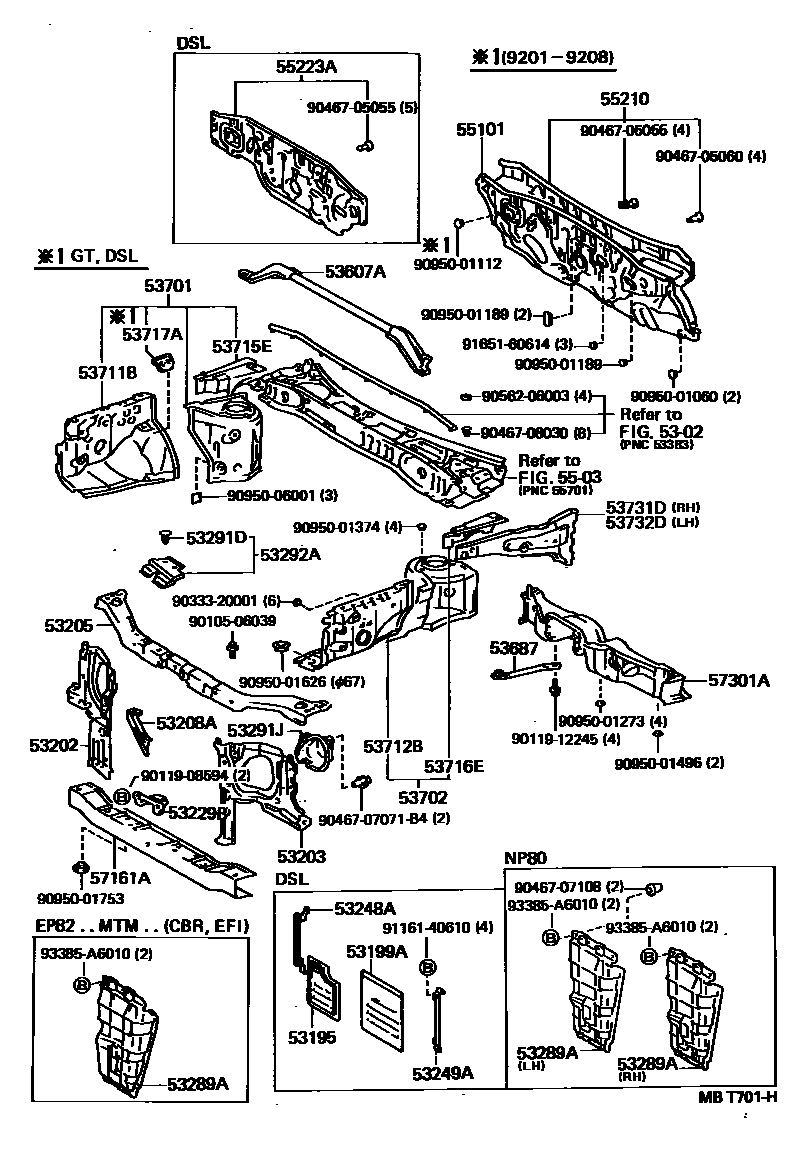

FRONT FENDER APRON & DASH PANEL

5302

53195PLATE, RADIATOR SHUTTER

main53195-10020iNP80198912-199509

53199ABAG, RADIATOR SHUTTER

main53199-10020iNP80199101-199201

main53199-10020iNP80199201-199509

main53199-10030iNP80198912-199507

sub53199-10020

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-10130iEP8#,NP80198912-199105

sub53202-10140

main53202-10140iEP8#,NP80199105-199601

main53202-10150iEP82..GI,GT199405-199601

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-10180iNP80198912-199105

sub53203-10190

main53203-10190iNP80199105-199509

main53203-10200iEP8#198912-199105

sub53203-10210

main53203-10210iEP8#199105-199601

main53203-10220iEP82..GI,GT199405-199601

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-10900iEP8#,NP80199312-199601

main53216-10904iEP8#,NP80198912-199312

sub53205-10900

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53208-10070iEP82..GI,GT198912-199601

main53208-10090iEP8#,NP80..CAN,CANSI,S,SI,SOL,SOLL,X,XLTD198912-199601

53229BBRACKET, RADIATOR MOUNTING, LOWER NO.2

main53229-10040iEP85..4FC;EP82,NP80..DSL,TBO198912-199601

main53229-10050iEP85..5F;EP82..CBR,EFI198912-199601

53248ABRACKET, RADIATOR SHUTTER, RH

main53248-10010iNP80198912-199202

sub53248-10011

main53248-10011iNP80199202-199509

53249ABRACKET, RADIATOR SHUTTER, LH

main53249-10020iNP80198912-199509

53289ACOVER, RADIATOR SUPPORT OPENING

main53289-10070iEP85;EP82..3FC199108-199201

main53289-10070iNP80199101-199509

main53289-10070iNP80199011-199101

main53289-10070iEP82..MTM..(CBR,EFI)198912-199601

main53289-10080iNP80199101-199509

53291DCLIP, RADIATOR SUPPORT TO FRAME

main90467-07044iEP8#..EFI199201-199405

53291JSEAL, RADIATOR SUPPORT

main53291-10070iNP80198912-199509

53292ASEAL, RADIATOR SUPPORT, UPPER

main53292-10030iEP8#..CAN,S,SOL,SOLL,XLTD199201-199405

main53292-10040iEP82..GI199202-199405

53607ABRACE SUB-ASSY, FRONT SUSPENSION, UPPER CENTER

main53607-10010iEP82..TBO198912-199601

53687BRACE, FRONT SUSPENSION LOWER TO STEERING MEMBER, RH

main53687-10030iEP85;EP82..GI,GT198912-199601

main53687-10030iEP82..CAN,CANSI,S,SI,SOL,SOLL,X,XLTD199008-199601

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-10340iEP8#,NP80198912-199205

sub53701-10360

main53701-10360iEP82,NP80..DSL,TBO199201-199408

sub53701-10361

main53701-10361iEP8#,NP80199408-199601

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-10360iEP8#,NP80199205-199408

sub53702-10361

main53702-10361iEP8#,NP80199408-199601

main53702-10390iEP8#,NP80198912-199205

sub53702-10360

53711BAPRON, FRONT FENDER, FRONT RH

main53711-10140iEP8#,NP80198912-199205

sub53711-16140

main53711-10150iEP8#,NP80199205-199408

sub53711-10151

main53711-10151iEP8#,NP80199408-199601

53712BAPRON, FRONT FENDER, FRONT LH

main53712-16060iEP8#,NP80198912-199205

sub53712-16080

main53712-16070iEP8#,NP80199205-199408

sub53712-16071

main53712-16071iEP8#,NP80199408-199601

53715EEXTENSION, FRONT FENDER APRON, REAR RH

main53715-10050iEP8#,NP80198912-199601

53716EEXTENSION, FRONT FENDER APRON, REAR LH

main53716-10050iEP8#,NP80198912-199601

53717APLATE, FENDER APRON

main53717-10040iEP8#,NP80199201-199601

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53731-10050iEP8#,NP80198912-199405

sub53731-10060

main53731-10060iEP8#,NP80198912-199405

main53731-10060iEP8#,NP80199405-199601

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53732-10050iEP8#,NP80198912-199405

sub53732-10060

main53732-10060iEP85;EP82..CANSI,GI,GT,S,SI,X198912-199405

main53732-10060iEP8#,NP80199405-199601

5503

55101PANEL SUB-ASSY, DASH

main55101-10942iEP8#..MTM..(SOL,SOLL)..EFI;EP8#..MTM..(CAN,SOL,SOLL,X,XLTD)..CBR198912-199601

sub55101-10944

main55101-10943iEP85..4FC..CBR;EP85..4FC..SOLL..EFI;EP82..3FC..(CAN,SOL,SOLL,X)198912-199601

sub55101-10945

main55101-10944iEP85..5F..(S,XLTD)..EFI;EP82..5F..(CAN,CANSI,GI,GT,S,SI,XLTD)198912-199601

sub55101-10964

sub90333-20001

main55101-10945iEP82..4FC..CAN;EP85..4FC..(S,XLTD)..EFI;EP82..ATM..(CANSI,GI,GT,S,SI,XLTD)198912-199601

sub55101-10944

sub90333-20001

sub90950-01150

main55101-10946iNP80..5F..(SOL,X)198912-199509

sub55101-10957

main55101-10947iNP80..4FC..(SOL,X)198912-199509

sub55101-10957

sub90333-20001

sub90950-01150

main55101-10957iNP80..5F..XLTD199201-199509

sub55101-10964

sub90333-20001

55210INSULATOR ASSY, DASH PANEL

main55210-10180iEP8#198912-199601

main55210-10190iEP8#..ATM198912-199112

main55210-10220iNP80198912-199509

main55210-10230iNP80..4FC198912-199112

55223AINSULATOR, DASH PANEL, OUTER

main55223-10040iNP80198912-199406

sub55223-10041

main55223-10041iNP80199406-199509

57161AMEMBER, FRONT CROSS, FRONT W/REAR

main57161-10908iEP85..4FC;EP82,NP80..DSL,TBO198912-199601

main57161-10909iEP85..5F;EP82..CBR,EFI198912-199601

57301AMEMBER SUB-ASSY, STEERING GEAR BOX SUPPORT

main57301-10060iEP82,NP80..CAN,CANSI,S,SI,SOL,SOLL,X,XLTD198912-199404

sub57301-10061

main57301-10061iEP82,NP80..CAN,S,SOL,SOLL,XLTD199404-199601

main57301-10070iEP82..GI,GT198912-199404

sub57301-10071

main57301-10070iEP82..CAN,CANSI,S,SI,SOL,SOLL,X,XLTD199008-199404

sub57301-10071

main57301-10071iEP82..CAN,S,SOL,SOLL,XLTD199404-199601

main57301-10080iEP85199008-199404

sub57301-10081

main57301-10081iEP85199404-199601

9010506039

main90105-06039

9011908594

main90119-08594

9011912245

main90119-12245

9033320001

main90333-20001

9046705055

main90467-05055

9046705060

main90467-05060

9046707071B4

main90467-07071B4

9046707108

main90467-07108

9046708030

main90467-08030

9056206003

main90562-06003

9095001060

main90950-01060

9095001112

main90950-01112

9095001189

main90950-01189

9095001273

main90950-01273

9095001374

main90950-01374

9095001496

main90950-01496

9095001626

main90950-01626

9095001753

main90950-01753

9095006001

main90950-06001

9116140610

main91161-40610

9165160614

main91651-60614

93385A6010

main93385-A6010

53 parts on this diagram · 1 diagram in section
