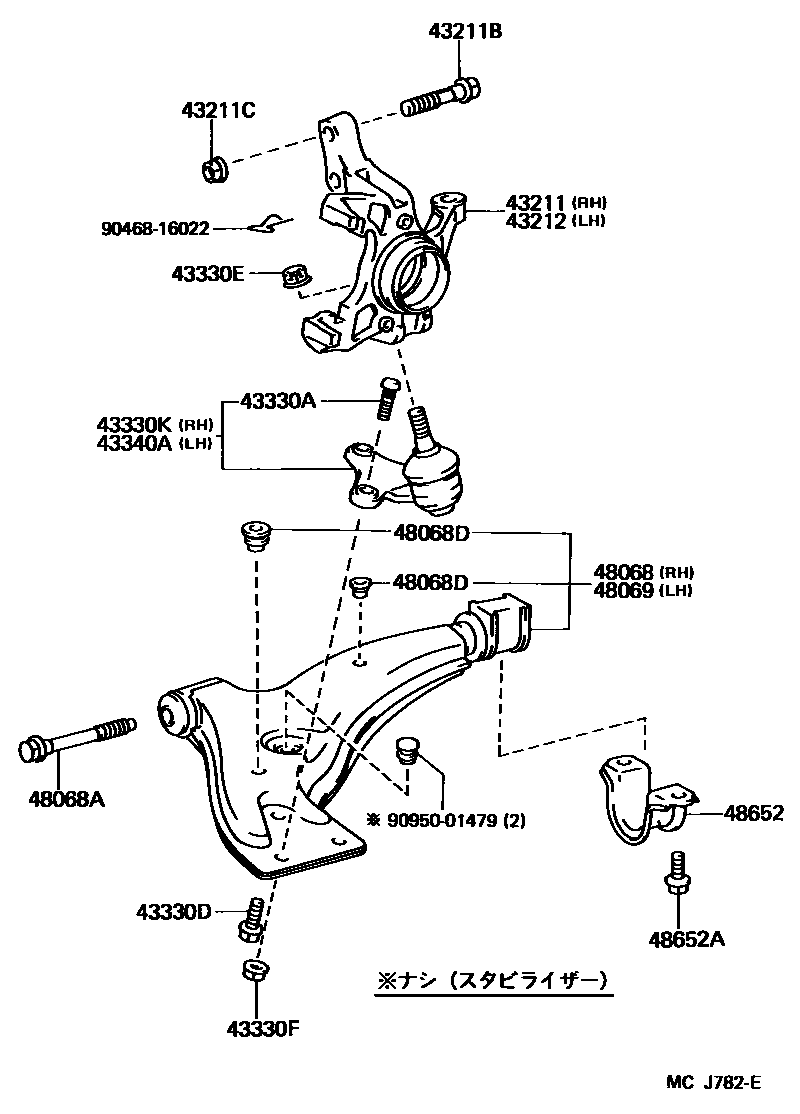

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-10060iEP82..CANSI,GI,GT,S,SI,X198912-199009

main43211-10061iEP82,NP80199201-199506

main43211-10062iEP82,NP80199506-199601

main43211-10070iEP82..TBO198912-199201

main43211-10071iEP82..TBO199201-199601

main43211-10080iEP82,NP80..CBR,DSL,EFI198912-199201

main43211-10081iEP82,NP80..DSL,EFI199201-199601

main43211-10090iEP85199008-199201

main43211-10091iEP85199201-199601

main43211-10100iEP85199008-199201

main43211-10101iEP85199201-199506

main43211-10102iEP85199506-199601

43211BBOLT (FOR ABSORBER SETTING)

main90105-15001×4iEP8#,NP80199004-199601

main90105-15002×4iEP82,NP80198912-199004

43211CNUT (FOR ABSORBER SETTING)

main90179-15001×4iEP8#,NP80199004-199601

main90179-15003×4iEP82,NP80198912-199004

43212KNUCKLE, STEERING, LH

main43212-10040iEP82..CANSI,GI,GT,S,SI,X198912-199009

main43212-10041iEP82,NP80199201-199506

main43212-10042iEP82,NP80199506-199601

main43212-10050iEP82..TBO198912-199201

main43212-10051iEP82..TBO199201-199601

main43212-10060iEP82,NP80..CBR,DSL,EFI198912-199201

main43212-10061iEP82,NP80..DSL,EFI199201-199601

main43212-10070iEP85199008-199201

main43212-10071iEP85199201-199601

main43212-10080iEP85199008-199201

main43212-10081iEP85199201-199506

main43212-10082iEP85199506-199601

43330ASERRATION BOLT(FOR FRONT LOWER BALL JOINT)

main90114-10036×4iEP8#,NP80198912-199601

43330DBOLT (FOR FRONT LOWER BALL JOINT)

main90119-10407×2iEP8#,NP80198912-199601

43330ENUT, CASTLE (FOR FRONT LOWER BALL JOINT SETTING)

main90171-12007×2iEP8#,NP80198912-199601

43330FNUT (FOR FRONT LOWER BALL JOINT SETTING)

main90179-10088×4iEP8#,NP80198912-199601

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-19085iEP8#,NP80198912-199601

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43340-19025iEP8#,NP80198912-199601

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-10060iEP82,NP80..CAN,SOL,SOLL,X198912-199201

main48068-10080iEP82..CANSI,GI,S,SI198912-199201

main48068-10090iEP82..TBO198912-199008

main48068-16060iEP85;EP82..3D..(4FC,5F)199201-199601

48068ABOLT(FOR FRONT SUSPENSION LOWER ARM)

main90119-12099×2iEP8#,NP80198912-199601

48068DPLUG, HOLE(FOR FRONT SUSPENSION LOWER ARM)

main90950-01414×2iEP8#,NP80198912-199601

H=11,OD=16

main90950-01478×6iEP8#,NP80198912-199601

H=13,OD=21

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-10040iEP82,NP80..CAN,SOL,SOLL,X198912-199201

main48069-10060iEP82,NP80..SOL,SOLL,XLTD199201-199601

main48069-10070iEP82..TBO198912-199008

main48069-16060iEP8#..(4FC,5F)..(GT,SOLL,XLTD)199008-199201

48652BRACKET, FRONT LOWER ARM

main48652-10020×2iEP8#,NP80198912-199601

48652ABOLT(FOR FRONT LOWER ARM BRACKET)

main90105-12061×4iEP8#,NP80198912-199508

main90901-19018×4iEP8#,NP80199508-199601

9046816022

main90468-16022

9095001479

main90950-01479

18 parts on this diagram · 1 diagram in section
