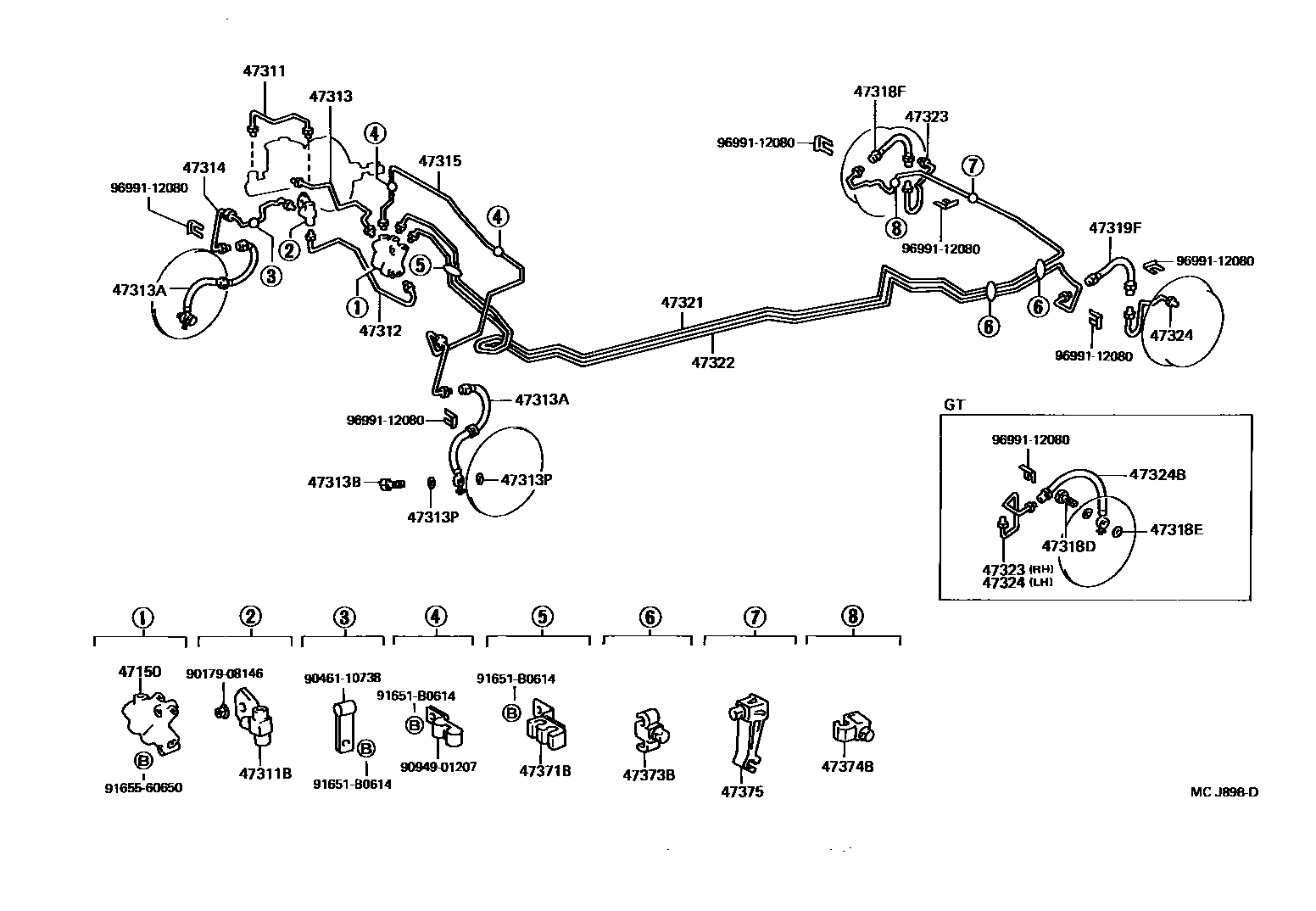

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1������ ���-���� ���� 0004 1������ ���-���� ���� 0005 1������ ���-���� ����

47150VALVE ASSY, PROPORTIONING

main47150-10060iEP82..CANSI,GI,S,SI,X198912-199009

main47150-10070iEP82..TBO198912-199601

main47150-10080iEP82..TBO198912-199201

main47150-12050iEP85199008-199601

main47150-12060iEP82,NP80..CBR,DSL,EFI198912-199601

main47150-12070iEP82..TBO199201-199601

main47150-20250iEP85199008-199601

47311TUBE, FRONT BRAKE, NO.1

main47311-10170iEP85;EP82..CANSI,GI,GT,S,SI,X198912-199009

main47311-10180iEP8#,NP80198912-199601

main47311-10190iEP8#,NP80199201-199601

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10169iEP8#,NP80199201-199601

main90413-10249iEP8#,NP80198912-199601

47312TUBE, FRONT BRAKE, NO.2

main47312-10240iEP8#,NP80198912-199601

main47312-10250iEP85;EP82..CANSI,GI,GT,S,SI,X198912-199009

main47312-10260iEP8#,NP80199201-199601

47313TUBE, FRONT BRAKE, NO.3

main47313-10300iEP8#,NP80198912-199601

main47313-10330iEP8#199009-199201

main47313-10340iEP8#,NP80199201-199601

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02632iEP8#,NP80198912-199201

main90947-02633iEP8#,NP80198912-199201

main90947-02644iEP8#,NP80199201-199405

main90947-02645iEP8#,NP80199201-199405

main90947-02813iEP8#,NP80199405-199601

main90947-02814iEP8#,NP80199405-199601

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10015×2iEP8#,NP80198912-199601

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main90430-10074×4iEP8#,NP80198912-199601

47314TUBE, FRONT BRAKE, NO.4

main47314-10230iEP85;EP82..CANSI,GI,GT,S,SI,X198912-199009

main47314-10250iEP8#,NP80198912-199601

47315TUBE, FRONT BRAKE, NO.5

main47315-10170iEP8#,NP80198912-199206

main47315-10171iEP8#,NP80199206-199601

main47315-10180iEP85;EP82..CANSI,GI,GT,S,SI,X198912-199009

main47315-10190iEP8#,NP80199201-199601

47318TUBE, FRONT BRAKE, NO.8

main47318-10090iEP85;EP82..CANSI,GI,GT,S,SI,X198912-199009

main47318-10091iEP8#,NP80199206-199601

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10015×2iEP82..TBO198912-199601

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main90430-10074×4iEP82..TBO198912-199601

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02603iEP82,NP80198912-199405

main90947-02637iEP82,NP80199405-199601

main90947-02643iEP85199008-199405

main90947-02796iEP85199405-199601

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02603iEP82,NP80198912-199405

main90947-02637iEP82,NP80199405-199601

main90947-02638iEP85199008-199405

main90947-02797iEP85199405-199601

47321TUBE, REAR BRAKE, NO.1

main47321-10170iEP82,NP80198912-199601

main47321-10200iEP85199008-199601

47322TUBE, REAR BRAKE, NO.2

main47322-10120iEP82,NP80198912-199601

main47322-10150iEP85199008-199601

47323TUBE, REAR BRAKE, NO.3

main47323-10050iEP82,NP80..CBR,DSL,EFI198912-199601

main47323-10060iEP82..TBO198912-199601

main47323-16120iEP85199008-199601

47324TUBE, REAR BRAKE, NO.4

main47324-10050iEP82,NP80..CBR,DSL,EFI198912-199601

main47324-10060iEP82..TBO198912-199601

main47324-16110iEP85199008-199601

47324BHOSE, FLEXIBLE(FOR REAR BRAKE TUBE, NO.2)

main90947-02608×2iEP82..TBO198912-199601

47371BCLAMP, BRAKE TUBE, NO.6

main47371-10050×3iEP85199008-199601

main47371-30010iEP82,NP80198912-199601

47373BCLAMP, BRAKE TUBE, NO.3

main47371-10080×2iEP82,NP80198912-199601

47374BCLAMP, BRAKE TUBE, NO.4

main47371-10100iEP8#,NP80198912-199601

47375CLAMP, BRAKE TUBE, NO.5

main47371-10110iEP82,NP80198912-199601

main47371-30010iEP85199008-199601

9017908146

main90179-08146

9046110738

main90461-10738

9094901207

main90949-01207

91651B0614

main91651-B0614

9165560650

main91655-60650

9699112080

main96991-12080

30 parts on this diagram · 5 diagrams in section
