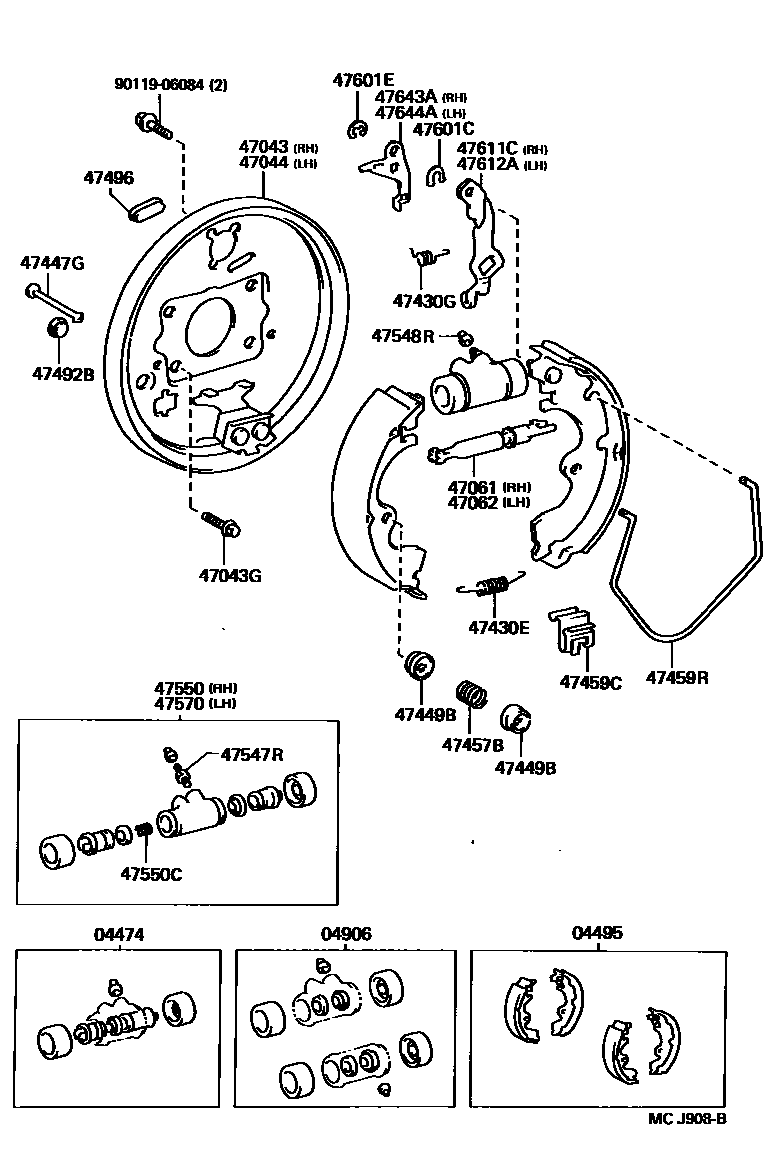

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0002 1

04474CYLINDER KIT, REAR WHEEL

main04474-16020×2iEP8#,NP80..CBR,DSL,EFI198912-199601

04495SHOE KIT, REAR BRAKE

main04495-10110iEP82,NP80..CBR,DSL,EFI198912-199601

main04495-12181iEP85199008-199601

main04497-10090iEP82,NP80..CBR,DSL,EFI198912-199201

REBUILT

main04497-12100iEP85199008-199201

04906CUP KIT, REAR WHEEL CYLINDER

main04906-16020iEP8#,NP80..CBR,DSL,EFI198912-199601

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-10050iEP82,NP80..CBR,DSL,EFI198912-199601

main47043-10060iEP82,NP80..DSL,EFI199201-199601

main47043-16030iEP85199008-199601

47043GBOLT (FOR BACKING PLATE TO REAR AXLE BEAM SETTING)

main90119-10365×8iEP82,NP80..CBR,DSL,EFI198912-199601

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-10050iEP82,NP80..CBR,DSL,EFI198912-199601

main47044-10060iEP82..CBR,EFI199009-199201

main47044-16030iEP85199008-199601

47061STRUT SET, PARKING BRAKE SHOE, RH

main47061-10020iEP82,NP80..CBR,DSL,EFI198912-199601

main47061-12020iEP85199008-199601

47062STRUT SET, PARKING BRAKE SHOE, LH

main47062-10020iEP82,NP80..CBR,DSL,EFI198912-199601

main47062-12020iEP85199008-199601

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-18014×2iEP82,NP80..CBR,DSL,EFI198912-199601

main90506-18299×2iEP85199008-199601

47430GSPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)

main90506-12276×2iEP85199008-199601

main90507-12020×2iEP82,NP80..CBR,DSL,EFI198912-199601

47447GPIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-10010×4iEP85199008-199601

main47447-30020×4iEP82,NP80..CBR,DSL,EFI198912-199601

47449BCUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-30030×8iEP82,NP80..CBR,DSL,EFI198912-199601

47457BSPRING, COMPRESSION(FOR REAR SHOE HOLD DOWN SPRING PIN)

main47547-20010×4iEP82..CANSI,GI,S,SI,X; EP82..TBO198912-199201

main90501-14086×4iEP82,NP80..CBR,DSL,EFI198912-199601

47459CCLIP(FOR SHOE RETURN SPRING)

main90468-05063×2iEP82,NP80..CBR,DSL,EFI198912-199601

47459RSPRING, SHOE RETURN(FOR REAR BRAKE)

main47459-16020×2iEP82,NP80..CBR,DSL,EFI198912-199601

47492BPLUG, SHOE INSPECTION(FOR REAR BRAKE)

main47492-32010×2iEP8#,NP80..CBR,DSL,EFI198912-199601

47496PLUG, HOLE(FOR REAR BRAKE)

main47491-20011×2iEP8#,NP80..CBR,DSL,EFI198912-199601

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-10050×2iEP85199008-199601

main47547-20010×2iEP82,NP80..CBR,DSL,EFI198912-199601

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010×2iEP8#,NP80..CBR,DSL,EFI198912-199601

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-10090iEP85199008-199601

main47550-20120iEP82,NP80..CBR,DSL,EFI198912-199601

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main90501-07006×2iEP82,NP80..CBR,DSL,EFI198912-199601

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-10090iEP85199008-199601

main47570-20030iEP82,NP80..CBR,DSL,EFI198912-199601

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47611-12050iEP85199008-199601

47601CWASHER, C(FOR REAR BRAKE)

main90213-06013×2iEP8#,NP80..CBR,DSL,EFI198912-199601

47601ERING, E(FOR REAR BRAKE)

main96160-00500×2iEP85199008-199601

main96160-00600×2iEP82,NP80..CBR,DSL,EFI198912-199601

47611CLEVER, PARKING BRAKE SHOE, RH

main47611-10030iEP82,NP80..CBR,DSL,EFI198912-199601

47612ALEVER, PARKING BRAKE SHOE, LH

main47612-10030iEP82,NP80..CBR,DSL,EFI198912-199601

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-10020iEP82,NP80..CBR,DSL,EFI198912-199601

main47643-12030iEP85199008-199601

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47644-10020iEP82,NP80..CBR,DSL,EFI198912-199601

main47644-12030iEP85199008-199601

9011906084

main90119-06084

30 parts on this diagram · 2 diagrams in section
