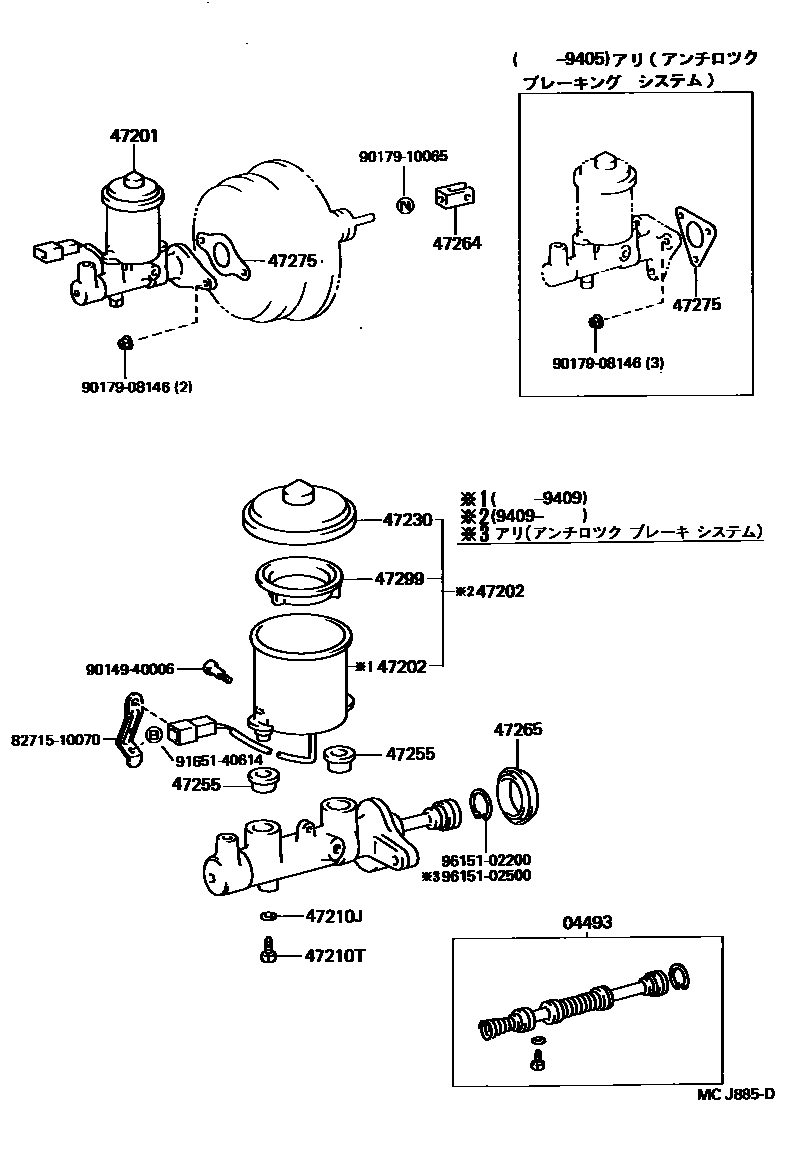

BRAKE MASTER CYLINDER

04493CYLINDER KIT, BRAKE MASTER

main04493-10110iEP82,NP80..CBR,DSL,EFI198912-199409

sub04493-10160

main04493-10120iEP82..CANSI,GI,S,SI,X198912-199409

main04493-10130iEP85;EP82..TBO198912-199409

main04493-10140iEP8#..(4FC,5F)..(GT,SOLL,XLTD)199005-199409

sub04493-18010

main04493-10160iEP82,NP80..DSL,EFI199409-199601

main04493-10170iEP82,NP80..DSL,EFI199409-199601

main04493-16030iEP82..TBO198912-199005

sub04493-12180

main04493-16110iEP82..TBO199409-199601

sub04493-42020

main04493-18010iEP85199409-199601

sub04493-12180

main04493-20210iEP82..TBO199201-199409

sub04493-16110

main04493-42010iEP85;EP82..TBO199409-199601

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-10130iEP82,NP80..CBR,DSL,EFI198912-199005

sub47201-16180

main47201-10140iEP82..TBO198912-199005

sub47201-18010

main47201-10150iEP82,NP80..DSL,EFI198912-199405

main47201-10160iEP85;EP82..TBO198912-199405

main47201-10190iEP82,NP80..DSL,EFI199405-199601

sub47201-10180

main47201-10200iEP85;EP82..TBO199405-199601

main47201-16180iEP82,NP80..CBR,DSL,EFI199005-199601

main47201-16190iEP82..TBO199201-199601

main47201-18010iEP82..TBO199005-199601

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47203-10010iEP8#,NP80198912-199409

main47220-10010iEP8#,NP80199409-199601

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iEP8#,NP80198912-199601

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06077iEP8#,NP80198912-199601

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-16010iEP8#,NP80198912-199601

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010iEP8#,NP80198912-199601

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-16020iEP8#,NP80199201-199601

main47264-20040iEP8#,NP80198912-199201

47265BOOT, MASTER CYLINDER

main47265-20050iEP8#,NP80198912-199405

47275GASKET, BRAKE MASTER CYLINDER

main47275-14010iEP8#,NP80198912-199601

sub47275-26010

main47275-32010iEP85;EP82..CANSI,GI,GT,S,SI,X198912-199405

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-16010iEP8#,NP80198912-199601

8271510070BRACKET,WIRING HARNESS CLAMP

main82715-10070

9014940006

main90149-40006

9017908146

main90179-08146

9017910065

main90179-10065

9165140614

main91651-40614

9615102200

main96151-02200

9615102500

main96151-02500

18 parts on this diagram · 1 diagram in section
