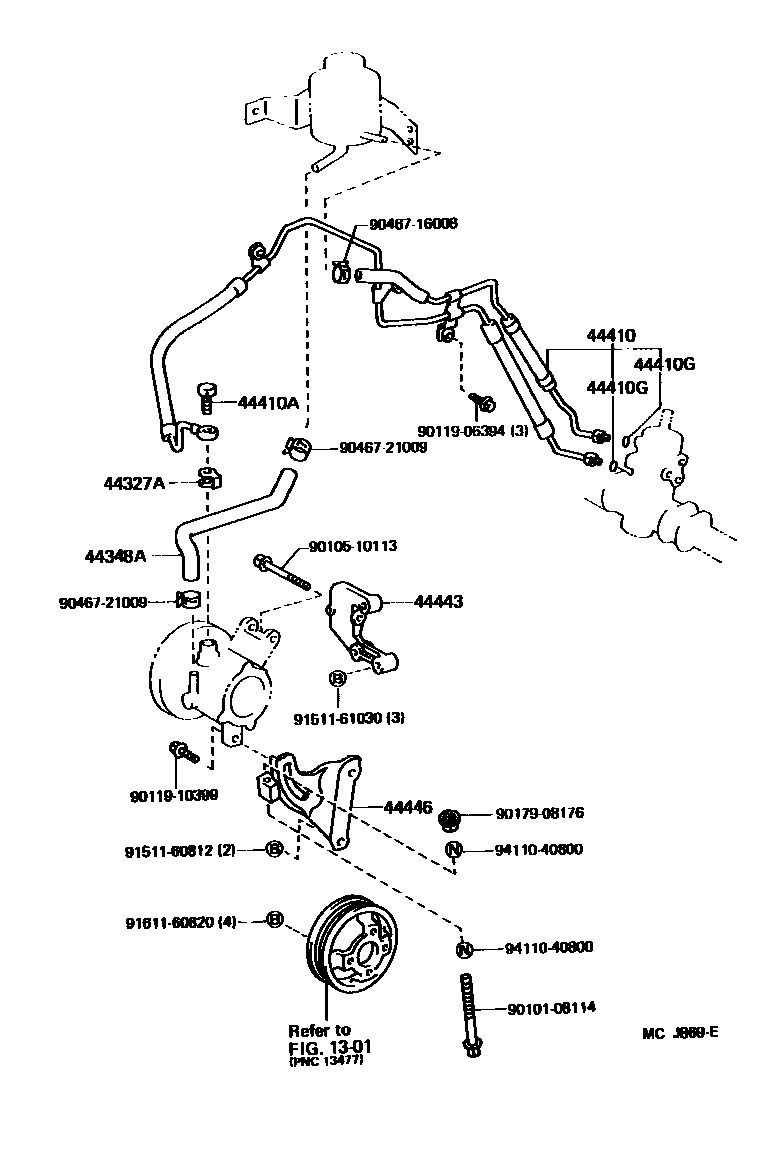

POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

1301CRANKSHAFT & PISTON

→ Go to FIG 13-01

44327AGASKET, PRESSURE PORT, NO.1

main44327-12010iEP8#,NP80198912-199601

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-10050iEP85..4FC;EP82..CBR,EFI198912-199405

main44348-10060iEP82..TBO198912-199601

main44348-10070iNP80198912-199405

main44348-10071iNP80199405-199509

main44348-10080iEP85..5F199008-199405

main44348-10110iEP8#..EFI199405-199601

44410TUBE ASSY, PRESSURE FEED

main44410-10030iEP8#..(3FC,4F,4FC)..(SOLL,XLTD); EP82..CAN,CANSI,GI,S,SI,SOL,X199009-199011

main44410-10031iEP8#..(3FC,4F,4FC)..(SOLL,XLTD); EP82..CAN,CANSI,GI,S,SI,SOL,X199011-199110

main44410-10032iEP8#..(3FC,4F,4FC)..(SOLL,XLTD); EP82..CAN,CANSI,GI,S,SI,SOL,X199110-199201

main44410-10050iEP82..TBO198912-199011

main44410-10051iEP82..TBO199012-199110

main44410-10052iEP82..TBO199110-199201

main44410-10060iNP80198912-199011

main44410-10061iNP80199011-199108

main44410-10062iNP80199108-199110

main44410-10063iNP80199110-199201

main44410-10070iEP85..4FC199008-199009

main44410-10071iEP82..CANSI,GI,S,SI,X; EP85..4FC;EP82..CAN,SOL199011-199012

main44410-10072iEP82..CBR,EFI; EP85..4FC199110-199201

main44410-10080iEP82..TBO198912-199011

main44410-10081iEP82..TBO199011-199110

main44410-10082iEP82..TBO199110-199201

main44410-10090iEP85..5F199008-199011

main44410-10091iEP85..5F199011-199110

main44410-10092iEP85..5F199110-199201

main44410-10101iEP85..5F199008-199011

main44410-10102iEP85..5F199011-199110

main44410-10103iEP85..5F199110-199201

main44410-10110iEP82..SOL; EP85..4FC;EP82..CAN,GI,S,SOLL,XLTD199201-199405

main44410-10111iEP8#..EFI199405-199601

main44410-10120iEP82..SOL; EP85..4FC;EP82..CAN,GI,S,SOLL,XLTD199201-199405

main44410-10130iEP82..TBO199201-199601

main44410-10140iEP82..TBO199201-199405

main44410-10141iEP82..TBO199405-199601

main44410-10150iNP80..SOL; NP80..XLTD199201-199405

main44410-10151iNP80199405-199509

main44410-10160iNP80..SOL; NP80..XLTD199201-199301

main44410-10170iEP85..5F199201-199405

main44410-10180iEP85..5F199201-199405

main44410-16142iNP80..SOL; NP80..XLTD199301-199405

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main90401-16008iEP8#,NP80198912-199601

44410GRING, O(FOR PRESSURE FEED TUBE)

main90301-07009×2iEP8#,NP80198912-199601

44443BRACKET, PUMP

main44443-10030iEP8#198912-199601

main44443-16030iNP80198912-199509

44446STRUT, ADJUSTING

main44446-10030iEP82..TBO198912-199201

main44446-10040iEP8#..CBR,EFI198912-199201

main44446-10050iEP8#..EFI199201-199601

main44446-10060iEP82..TBO199201-199601

9010108114

main90101-08114

9010510113

main90105-10113

9011906394

main90119-06394

9011910399

main90119-10399

9017908176

main90179-08176

9046716008

main90467-16008

9046721009

main90467-21009

9151160812

main91511-60812

9151161030

main91511-61030

9161160820

main91611-60820

9411040800

main94110-40800

19 parts on this diagram · 6 diagrams in section
