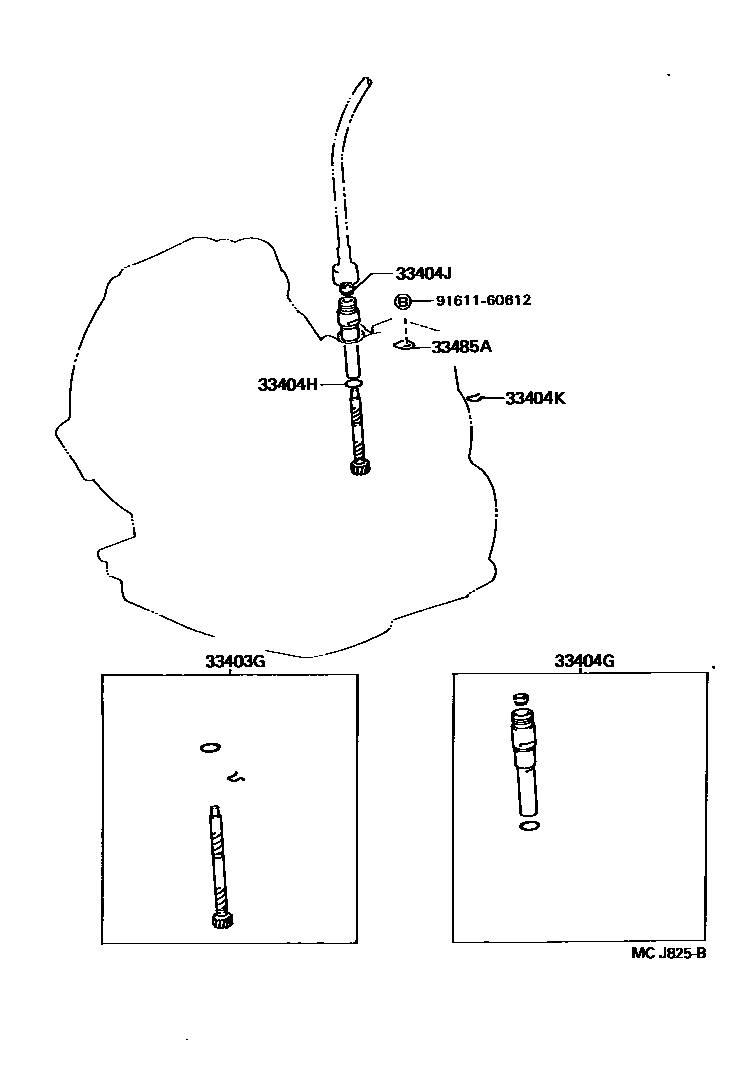

SPEEDOMETER DRIVEN GEAR (ATM)

0001 1 0002 1

33403GGEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33403-19305iEP82..3FC..SOLL199201-199601

main33403-19355iEP82,NP80..4FC198912-199601

main33403-19375iEP82..3FC..CBR;EP82..3FC..SOL..EFI198912-199601

main33403-19435iEP85..4FC..CBR;EP85..4FC..SOLL..EFI199008-199601

main33403-19565iEP85..4FC..(S,XLTD)199201-199601

33404GSLEEVE SUB-ASSY, SPEEDOMETER SHAFT (ATM)

main33404-12030iEP82,NP80..4FC198912-199601

main33404-12040iEP85..4FC199205-199601

main33404-32010iEP82..3FC198912-199601

main33404-35010iEP85..4FC199008-199205

33404HRING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90301-18018iEP85..4FC199008-199601

main96711-24018iEP82..3FC198912-199601

main96711-24030iEP82,NP80..4FC198912-199601

33404JSEAL, OIL (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iEP8#,NP80..ATM198912-199601

33404KCLIP (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iEP8#,NP80..ATM198912-199601

33485APLATE, SPEEDOMETER SLEEVE LOCK (ATM)

main33485-12020iEP85..4FC199008-199601

main33485-14010iEP82..3FC198912-199601

main33485-30020iEP82,NP80..4FC198912-199601

9161160612

main91611-60612

7 parts on this diagram · 2 diagrams in section
