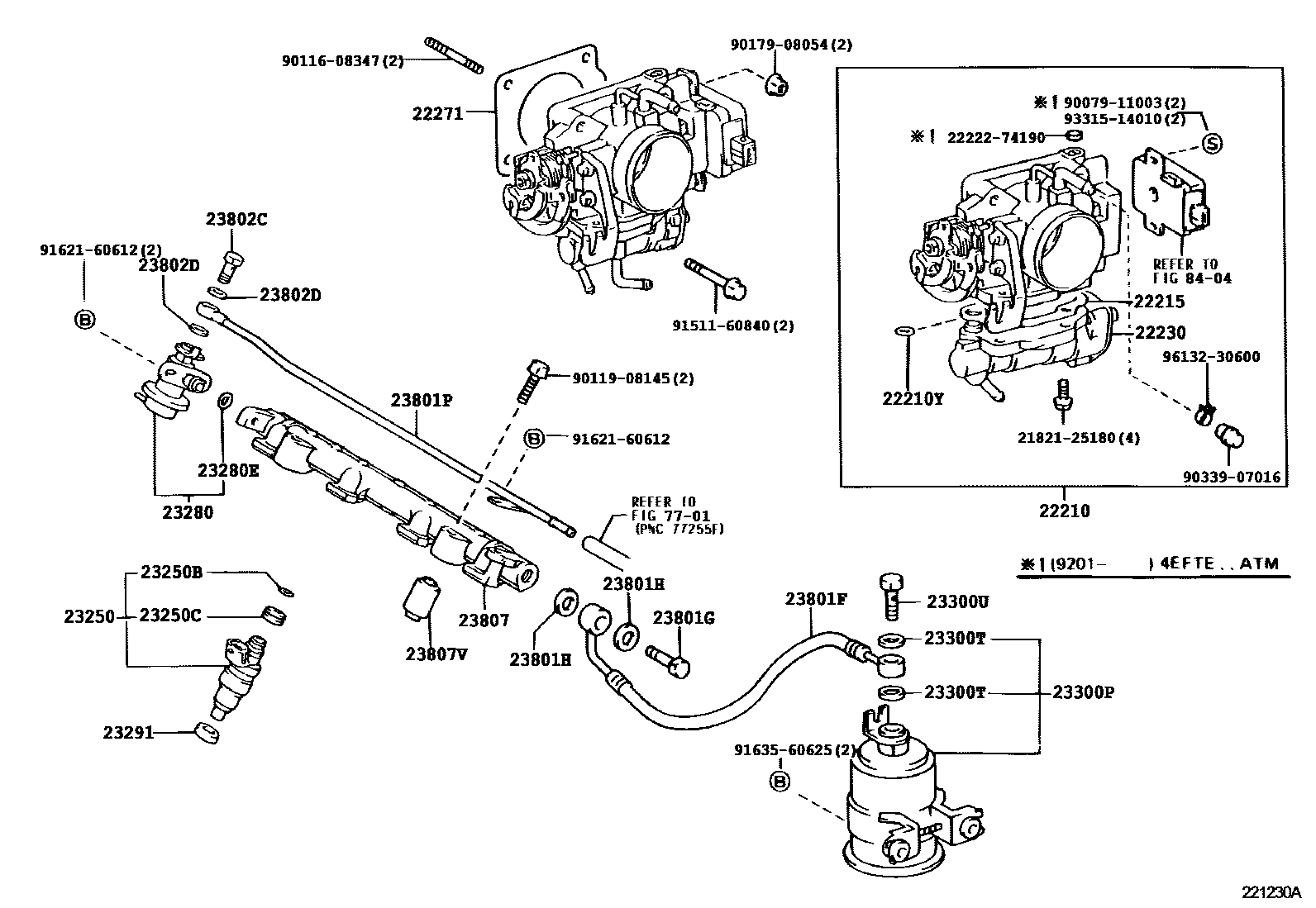

FUEL INJECTION SYSTEM

0001 1 0002 1 0004 1

22210BODY ASSY, THROTTLE

main22210-11110i4EFE,4EFTE..EP82..4FC198912-199201

main22210-11130i4EFE,4EFTE..EP82..5F198912-199201

main22210-11270i4EF#..EP8#..MTM199201-199601

main22210-11280i4EFE..EP8#..ATM199201-199601

main22210-11330i4EFTE..EP82..4FC199201-199601

22210YRING, O(FOR AIR TUBE)

main96711-19009i4EFE,4EFTE..EP8#198912-199601

22215GASKET, THROTTLE BODY COVER

main22215-11110i4EFE,4EFTE..EP8#198912-199601

22230VALVE ASSY, AUXILIARY AIR

main22230-11080i4EFE,4EFTE..EP8#..ATM198912-199601

main22230-11100i4EFE,4EFTE..EP8#..MTM198912-199601

22271GASKET, THROTTLE BODY

main22271-11020i4EFE,4EFTE..EP8#198912-199407

main22271-11030i4EF#..EP8#199407-199601

23250INJECTOR ASSY, FUEL

main23209-11050×4i4EFE..EP8#198912-199601

main23209-11060×4i4EFTE..EP82198912-199601

23250BRING, O(FOR FUEL INJECTOR)

main90301-07001×4i4EFE,4EFTE..EP8#198912-199601

23250CGROMMET(FOR FUEL INJECTOR)

main90480-13005×4i4EFE,4EFTE..EP8#198912-199601

23280REGULATOR ASSY, FUEL PRESSURE

main23280-11040i4EFE,4EFTE..EP8#198912-199601

23280ERING, O(FOR FUEL PRESSURE REGULATOR)

main90301-07001i4EFE,4EFTE..EP8#198912-199601

23291INSULATOR, INJECTOR VIBRATION

main23291-41010×4i4EFE,4EFTE..EP8#198912-199601

23300PFILTER, FUEL(FOR EFI)

main23300-19255i4EFE,4EFTE..EP8#198912-199405

main23300-19395i4EF#..EP8#199405-199601

23300TGASKET(FOR FUEL FILTER)

main90430-12005×2i4EFE,4EFTE..EP8#198912-199405

main90430-12026×2i4EF#..EP8#199405-199601

23300UBOLT, UNION(FOR FUEL FILTER)

main90401-12097i4EFE,4EFTE..EP8#198912-199601

23801FHOSE, FUEL, NO.1

main90923-01372i4EFE,4EFTE..EP8#198912-199601

23801GBOLT, UNION(FOR FUEL PIPE)

main90401-12029i4EFE,4EFTE..EP8#198912-199601

23801HGASKET(FOR FUEL PIPE)

main90430-12005×2i4EFE,4EFTE..EP82198912-199201

main90430-12026×2i4EF#..EP8#199201-199601

23801PPIPE SUB-ASSY, FUEL, NO.1

main23801-11050i4EFE,4EFTE..EP8#198912-199308

main23801-11080i4EF#..EP8#199308-199601

23802CBOLT, UNION(FOR FUEL PIPE NO.2)

main90401-08004i4EF#..EP8#199305-199601

main90401-08010i4EFE,4EFTE..EP8#198912-199305

23802DGASKET(FOR FUEL PIPE NO.2)

main90430-08005×2i4EFE,4EFTE..EP82198912-199201

main90430-08012×2i4EF#..EP8#199201-199305

main90430-08014×2i4EF#..EP8#199305-199601

23807PIPE SUB-ASSY, FUEL DELIVERY

main23814-11030i4EFE,4EFTE..EP8#198912-199601

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main23890-11010×2i4EFE,4EFTE..EP8#198912-199601

7701FUEL TANK & TUBE

→ Go to FIG 77-01

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

2182125180SCREW, 2ND THROTTLE VALVE SET

main21821-25180

2222274190GASKET, INTAKE AIR CONTROL VALVE, NO.2

main22222-74190

9007911003

main90079-11003

9011608347

main90116-08347

9011908145

main90119-08145

9017908054

main90179-08054

9033907016

main90339-07016

9151160840

main91511-60840

9162160612

main91621-60612

9163560625

main91635-60625

9331514010

main93315-14010

9613230600

main96132-30600

36 parts on this diagram · 3 diagrams in section
