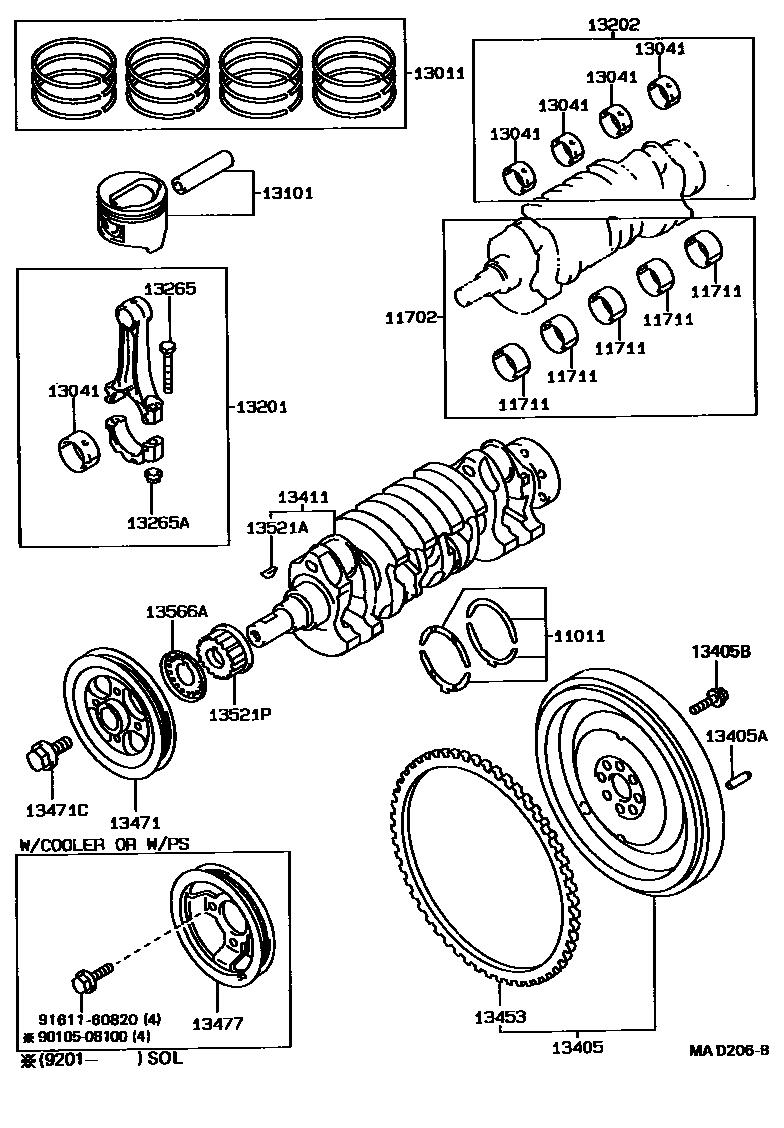

CRANKSHAFT & PISTON

0001 1 0003 1

11011WASHER SET, CRANKSHAFT THRUST

main11011-10010i4EF#..EP8#198912-199601

main11011-22011i1N..NP80198912-199509

main11012-10020i4EF#..EP8#198912-199601

main11012-22011i1N..NP80198912-199509

main11013-22011i1N..NP80198912-199509

11702BEARING SET, CRANKSHAFT

main11704-10011i4EF#..EP8#198912-199601

main11704-55020i1N..NP80198912-199509

main11705-55020i1N..NP80198912-199509

11711BEARING, CRANKSHAFT

main11701-10011-01×5i4EF#..EP8#198912-199601

MARK 1

main11701-10011-02×5i4EF#..EP8#198912-199601

MARK 2

main11701-10011-03×5i4EF#..EP8#198912-199601

MARK 3

main11701-55020-01×5i1N..NP80198912-199509

MARK 1

main11701-55020-02×5i1N..NP80198912-199509

MARK 2

main11701-55020-03×5i1N..NP80198912-199509

MARK 3

13011RING SET, PISTON

main13011-11120i4EF,4EFE..EP8#198912-199009

main13011-11121i4EF,4EFE..EP8#199009-199302

main13011-11122i4EFE..EP8#199302-199601

main13011-11130i4EFTE..EP82198912-199009

main13011-11131i4EFTE..EP82199009-199302

main13011-11132i4EFTE..EP82199302-199601

main13011-55010i1N..NP80198912-199004

main13011-55011i1N..NP80199004-199509

main13013-55010i1N..NP80198912-199004

main13013-55011i1N..NP80199004-199509

13041BEARING, CONNECTING ROD

main13041-10020-01×4i4EF,4EFE..EP8#198912-199601

MARK 1

main13041-10020-02×4i4EF,4EFE..EP8#198912-199601

MARK 2

main13041-10020-03×4i4EF,4EFE..EP8#198912-199601

MARK 3

main13041-11030-01×4i4EFTE..EP82198912-199601

MARK 1

main13041-11030-02×4i4EFTE..EP82198912-199601

MARK 2

main13041-11030-03×4i4EFTE..EP82198912-199601

MARK 3

main13041-55020-01×4i1N..NP80198912-199509

MARK 1

main13041-55020-02×4i1N..NP80198912-199509

MARK 2

main13041-55020-03×4i1N..NP80198912-199509

MARK 3

13101PISTON SUB-ASSY, W/PIN

main13101-11100-01×4i4EF,4EFE..EP8#198912-199601

main13101-11100-02×4i4EF,4EFE..EP8#198912-199601

main13101-11100-03×4i4EF,4EFE..EP8#198912-199601

main13101-11110-01×4i4EFTE..EP82198912-199601

main13101-11110-02×4i4EFTE..EP82198912-199601

main13101-11110-03×4i4EFTE..EP82198912-199601

main13101-55020-01×4i1N..NP80198912-199509

main13101-55020-02×4i1N..NP80198912-199509

main13101-55020-03×4i1N..NP80198912-199509

main13103-55020×4i1N..NP80198912-199509

13201ROD SUB-ASSY, CONNECTING

main13201-19075×4i4EF,4EFE..EP8#198912-199512

main13201-19076×4i4EFE..EP8#199512-199601

main13201-19105×4i4EFTE..EP82198912-199512

main13201-19106×4i4EFTE..EP82199512-199601

main13201-59075×4i1N..NP80198912-199509

13202BEARING SET, CONNECTING ROD

main13204-10020i4EF,4EFE..EP8#198912-199601

main13204-11030i4EFTE..EP82198912-199601

13265BOLT, CONNECTING ROD

main13265-10020×2i4EF#..EP8#198912-199201

main13265-10022×8i4EFE..EP8#..GI,S,SOL,SOLL,XLTD199504-199405

main13265-55011×8i1N..NP80198912-199509

13265ANUT, HEXAGON(FOR CONNECTING ROD BOLT)

main90179-08014×8i4EF#..EP8#199201-199601

main90179-08118×16i1N..NP80198912-199509

13405FLYWHEEL SUB-ASSY

main13405-11031i4EF,4EFE..EP82..MTM198912-199601

main13405-11060i4EFE..EP85..5F;4EF,4EFTE..EP8#..5F..(GT,SOLL,XLTD)198912-199601

main13405-55010i1N..NP80..5F198912-199105

main13405-55011i1N..NP80..5F199105-199509

13405APIN, STRAIGHT(FOR FLYWHEEL)

main90250-08120×3i1N..NP80..5F; 4EF#..EP8#..MTM198912-199601

13405BBOLT, FLYWHEEL SETTING

main90105-10071×6i1N..NP80..5F198912-199509

main90105-10138×6i4EF#..EP8#..MTM198912-199601

13411CRANKSHAFT

main13401-11050i4EF,4EFE..EP8#198912-199601

main13401-11060i4EFTE..EP82198912-199601

main13411-55900i1N..NP80198912-199509

13453GEAR, FLYWHEEL RING

main13453-10030i4EF#..EP8#..MTM198912-199601

main13453-55010i1N..NP80..5F198912-199509

13471PULLEY, CRANKSHAFT

main13407-11030i4EFTE..EP82198912-199601

main13408-11012i4EF,4EFE..EP8#198912-199601

main13408-55010i1N..NP80198912-199509

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90105-12051i4EF,4EFE..EP8#198912-199601

main90105-12060i1N..NP80198912-199509

main90109-12050i4EFTE..EP82198912-199601

13477PULLEY, CRANKSHAFT, NO.2

main44319-10011i4EF,4EFE..EP82..CANSI,GI,S,SI,X; 4EF..EP82..CAN,SOL198912-199009

main88358-10011i4EF,4EFE..EP82..GI,S,SI; 4EF..EP82..X; 4EFE..EP82..CANSI198912-199201

13521AKEY(FOR CRANKSHAFT TIMING GEAR)

main90280-05005i4EF#..EP8#199202-199601

main95161-20519i4EF#..EP8#198912-199202

13521PPULLEY, CRANKSHAFT TIMING

main13521-11020i4EF#..EP8#198912-199601

main13521-55010i1N..NP80198912-199509

13566AGUIDE, TIMING BELT

main13566-11020i4EF#..EP8#198912-199601

main13566-55010i1N..NP80198912-199509

9010508100

main90105-08100

9161160820

main91611-60820

23 parts on this diagram · 2 diagrams in section
