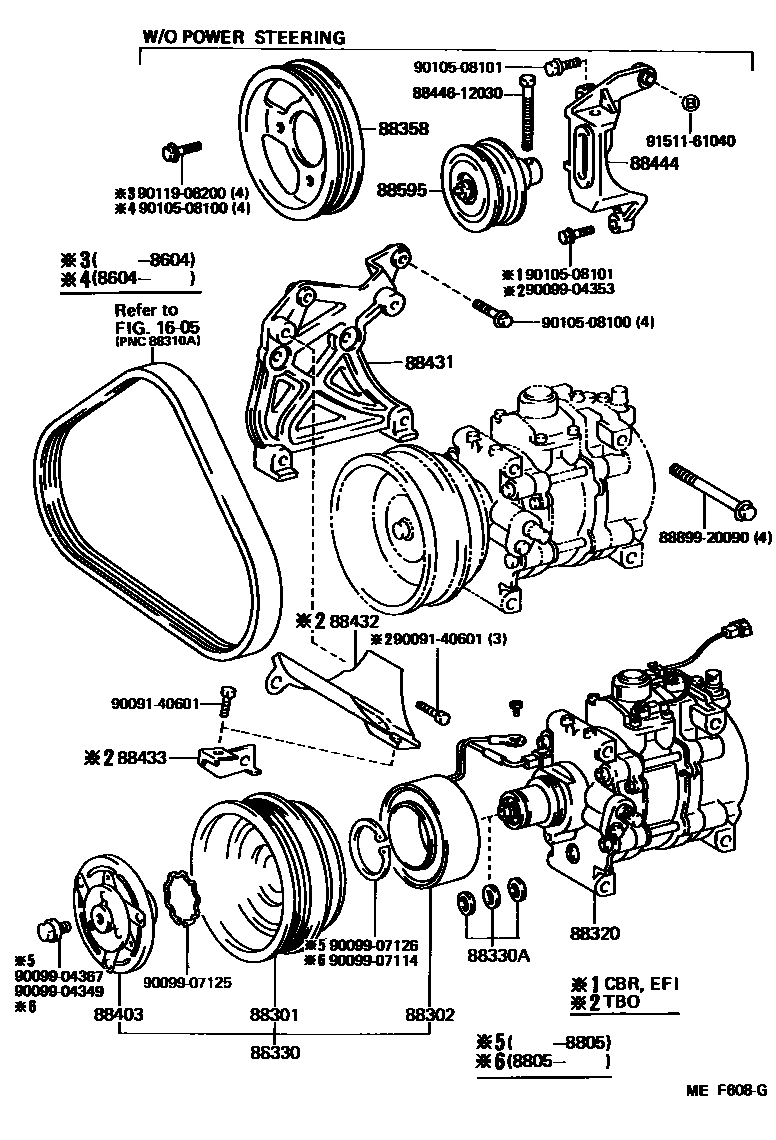

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1

1605V-BELT

→ Go to FIG 16-05

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-10010iEP7#198410-198508

W/O POWER STEERING

main88412-10011iEP7#198508-198612

W/O POWER STEERING

main88412-10020iEP71..DX,SE,XL198410-198508

W/POWER STEERING

main88412-10021iEP71..DX,SE,TBS,TOR,XL198508-198612

W/POWER STEERING

main88412-10060iEP7#198612-198612

W/O POWER STEERING

main88412-10080iEP71..DX,SE,SI,TBS,TOR,XL198612-198805

W/POWER STEERING

main88412-10090iNP7#198612-198805

main88412-10130iEP71..DX,SE,SI,TBS,TOR,XL198805-198912

W/POWER STEERING

main88412-10140iEP7#..CD,CS,DX,RI,SI,STD,TBS,TOR,XL198805-198912

W/O POWER STEERING

main88412-20090iNP7#198805-198912

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-10010iEP7#198410-198612

main88411-10030iEP7#,NP7#198612-198805

main88411-16021iEP7#,NP7#..CD,CS,DX,RI,SI,STD,TBS,TOR,XL198805-198912

main88411-16030iEP71..DX,SE,SI,TBS,TOR,XL198805-198912

W/POWER STEERING

88320COMPRESSOR ASSY, COOLER

main88320-10060iEP7#198410-198612

W/O POWER STEERING

main88320-10070iEP71..DX,SE,XL198410-198612

W/POWER STEERING

main88320-10080iEP71..TBO198601-198612

W/POWER STEERING

main88320-10090iEP7#,NP7#..CD,CS,DX,RI,SI,STD,TBS,TOR,XL198612-198805

W/O POWER STEERING

main88320-10100iEP71,NP70..DX,SE,SI,TBS,TOR,XL198612-198805

W/POWER STEERING

main88320-10170iEP71,NP70..DX,SE,SI,TBS,TOR,XL198805-198912

W/POWER STEERING

main88320-10180iEP7#,NP7#..CD,CS,DX,RI,SI,STD,TBS,TOR,XL198805-198912

W/O POWER STEERING

88330CLUTCH ASSY, MAGNET

main88410-10020iEP7#198410-198508

W/O POWER STEERING

main88410-10021iEP7#198508-198612

W/O POWER STEERING

main88410-10022iEP7#198612-198612

W/O POWER STEERING

main88410-10030iEP71..DX,SE,XL198410-198508

W/POWER STEERING

main88410-10031iEP71..DX,SE,TBS,TOR,XL198508-198612

W/POWER STEERING

main88410-10032iEP71..DX,SE,SI,TBS,TOR,XL198612-198703

W/POWER STEERING

main88410-10060iNP7#198612-198703

main88410-10070iEP71..DX,SE,SI,TBS,TOR,XL198703-198805

W/POWER STEERING

main88410-10080iNP7#198703-198805

main88410-10120iEP71..DX,SE,SI,TBS,TOR,XL198805-198912

W/POWER STEERING

main88410-10130iEP7#..CD,CS,DX,RI,SI,STD,TBS,TOR,XL198805-198912

W/O POWER STEERING

main88410-16070iNP7#198805-198912

88330AWASHER (FOR MAGNET CLUTCH)

main88335-10030iEP7#,NP7#198612-198805

main88335-14020iEP7#,NP7#198805-198912

88358PULLEY, CRANKSHAFT TO COOLER COMPRESSOR DRIVE

main88358-10010iEP7#198410-198604

W/O POWER STEERING

main88358-10011iEP7#..CD,CS,DX,RI,SI,STD,TBS,TOR,XL198612-198912

W/O POWER STEERING

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-10010iEP7#,NP7#198410-198805

main88403-16011iEP7#,NP7#198805-198912

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-10040iEP7#..CBR,EFI198410-198604

main88431-10041iEP7#..CBR,EFI198604-198805

main88431-10050iEP71..TBO198601-198604

main88431-10051iEP71..TBO198604-198805

main88431-10052iEP71..TBO198805-198912

main88431-10060iNP7#198612-198805

main88431-10061iNP7#198805-198912

main88431-16060iEP7#..CBR,EFI198805-198912

88432BRACKET, COMPRESSOR MOUNTING, NO.2

main88688-10120iEP71..TBO198601-198611

main88688-10200iEP71..TBO198611-198912

88433BRACKET, COMPRESSOR MOUNTING, NO.3

main88688-10130iEP71..TBO198601-198912

88444BRACKET, IDLE PULLEY

main88444-10030iEP7#..CBR,EFI198410-198604

W/O POWER STEERING

main88444-10031iEP7#..CBR,EFI198604-198612

W/O POWER STEERING

main88444-10040iEP71..TBO198601-198604

W/O POWER STEERING

main88444-10041iEP71..TBO198604-198912

W/O POWER STEERING

88595PULLEY, COOLER COMPRESSOR IDLE

main88440-12170iNP7#198612-198912

main88440-17010iEP7#198410-198612

W/O POWER STEERING

8844612030BOLT, IDLE PULLEY

main88446-12030

8889920090COVER, EVAPORATOR

main88899-20090

9009140601

main90091-40601

9009904349

main90099-04349

9009904353

main90099-04353

9009904367

main90099-04367

9009907114

main90099-07114

9009907125

main90099-07125

9009907126

main90099-07126

9010508100

main90105-08100

9010508101

main90105-08101

9011908200

main90119-08200

9151161040

main91511-61040

26 parts on this diagram · 2 diagrams in section
