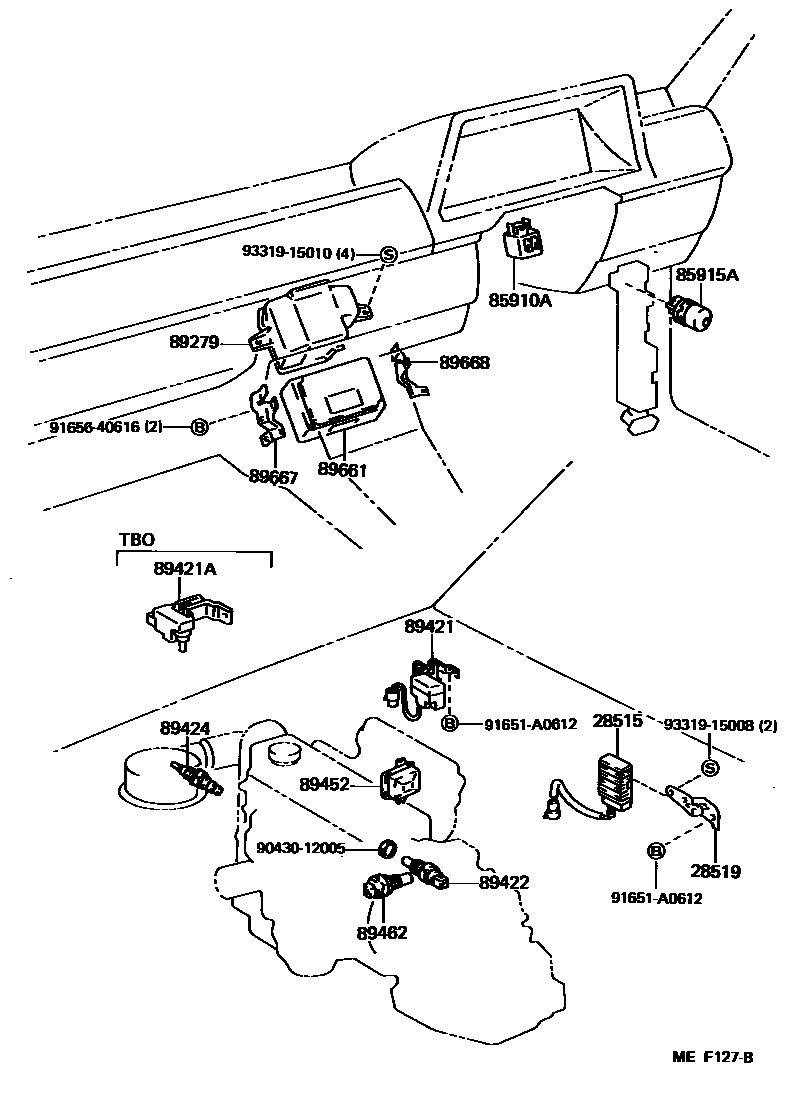

ELECTRONIC FUEL INJECTION SYSTEM

28515RESISTOR, SOLENOID

main28515-10010i2EELU..EP71198410-198912

main28515-10020i2ETELU..EP71198601-198912

28519BRACKET, SOLENOID RESISTOR

main28519-10010i2EELU..EP71198410-198912

main28519-10020i2ETELU..EP71198601-198912

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main85910-30050iEP71..EFI,TBO198410-198912

85915ARELAY, MAIN

main90987-02004iEP71..EFI,TBO198410-198912

89279COVER, ENGINE CONTROL COMPUTER

main89279-10010iEP71..EFI198410-198709

main89279-10020iEP71..TBO198601-198709

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-10010iEP71..EFI198410-198612

main89421-10030iEP71..EFI198612-198912

89421ASENSOR, TURBO PRESSURE

main89421-10020iEP71..TBO198601-198912

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-30020iEP71..EFI,TBO198410-198912

89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)

main89424-28010iEP71..EFI,TBO198410-198912

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-12010iEP71..EFI,TBO198410-198912

89462SWITCH, START INJECTOR TIME

main89462-30011iEP71..EFI,TBO198410-198912

89661COMPUTER, ENGINE CONTROL

main89661-10010iEP71..EFI198410-198505

main89661-10011iEP71..EFI198505-198612

main89661-10012iEP71..EFI198612-198912

main89661-10020iEP71..TBO198601-198604

main89661-10021iEP71..TBO198604-198610

main89661-10022iEP71..TBO198610-198703

main89661-10023iEP71..TBO198703-198712

main89661-10024iEP71..TBO198712-198806

main89661-10025iEP71..TBO198806-198912

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-10010iEP71..EFI,TBO198410-198912

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-10010iEP71..EFI,TBO198410-198912

9043012005

main90430-12005

91651A0612

main91651-A0612

9165640616

main91656-40616

9331915008

main93319-15008

9331915010

main93319-15010

19 parts on this diagram · 1 diagram in section
