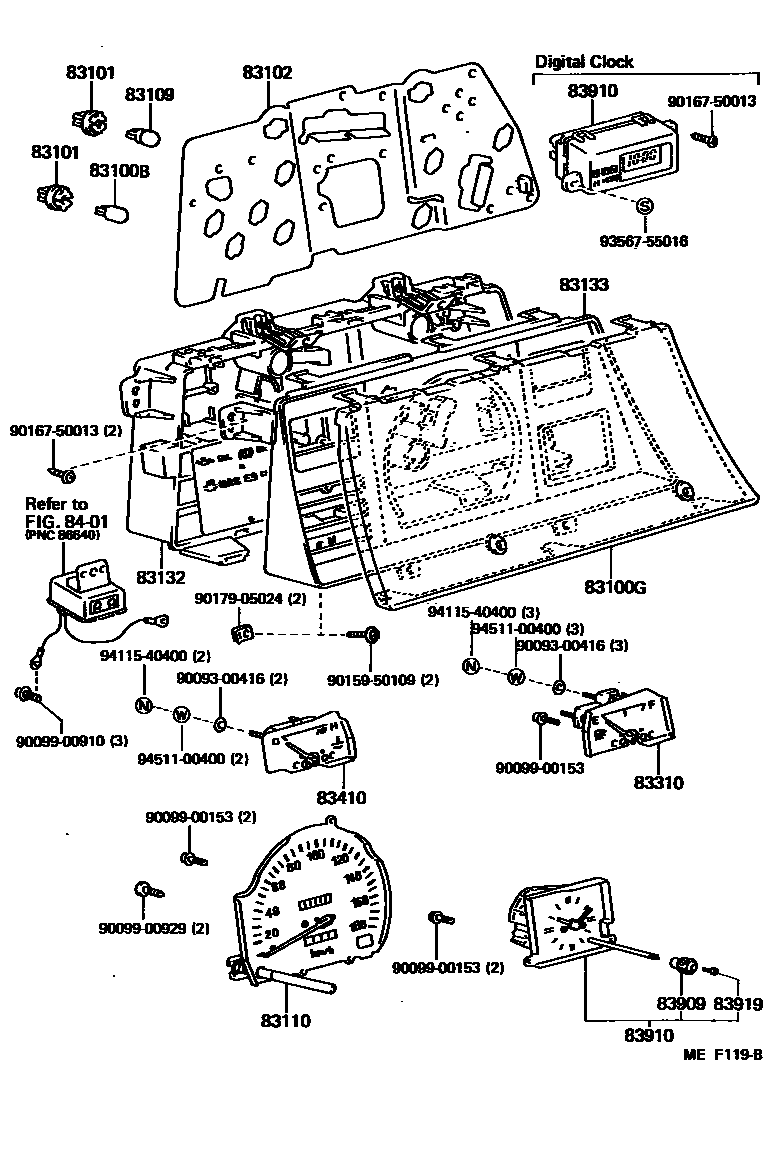

METER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

83100BBULB, COMBINATION METER, NO.1

main90981-11018×6iEP71..RI,SE,SI,TBS,TOR198410-198612

main99132-12034×7iEP7#,NP7#198410-198912

83100GGLASS, COMBINATION METER

main83138-10030iEP7#..CD,DX198410-198612

W/TRIP COUNTER

main83138-10050iEP71..RI,SE,SI,TBS,TOR198410-198612

main83138-10090iEP7#..CS,DX,STD198410-198612

main83138-10350iEP7#..CD,DX,XL198410-198612

W/TRIP COUNTER & ANALOG.CLOCK

main83138-10370iEP7#,NP70..CS,DX,STD198612-198912

main83138-10390iEP7#,NP7#..CD,DX; EP71,NP70..RI,SE,SI,TBS,TOR198612-198912

W/TRIP COUNTER

main83138-10410iEP71,NP70..XL; EP76..CD..05S198804-198912

W/TRIP COUNTER & ANALOG.CLOCK

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14030×10iEP7#,NP7#198410-198912

12V 3.4W

main83101-14040×6iEP71..RI,SE,SI,TBS,TOR198410-198612

12V 1.4W

83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1

main83247-10670iEP76198410-198612

main83247-10690iEP71..DX,STD198410-198612

main83247-10810iEP76..CD198410-198612

W/ANALOGUE CLOCK

main83247-10830iEP71..DX,XL198410-198612

W/ANALOGUE CLOCK

main83247-1C050iEP71..SE198410-198612

main83247-1C070iEP71..EFI198410-198612

main83247-1C290iEP71..5F..TBO198601-198612

main83247-1C310iEP71..4FC198601-198612

main83247-1C390iEP76198612-198912

main83247-1C410iEP76..CD198612-198804

W/ANALOGUE CLOCK

main83247-1C430iEP71..DX,STD198612-198912

main83247-1C450iEP71..DX,XL198612-198804

W/ANALOGUE CLOCK

main83247-1C470iNP7#..CD,CS,DX198612-198912

main83247-1C490iNP70..XL198804-198912

W/ANALOGUE CLOCK

main83247-1C730iEP71..SE198612-198912

main83247-1C750iEP71..5F..(EFI,TBO)198612-198912

main83247-1C770iEP71..4FC; EP71..TBS198612-198912

W/TEMS

main83247-1C790iNP70..5F..SE198612-198912

main83247-1C810iNP70..4FC..SE198612-198912

83109BULB, COMBINATION METER, NO.2

main83109-14030×3iEP71..TBO198601-198612

main83109-20030iEP71..TBO198601-198612

main83109-24030×4iEP7#,NP7#..CBR,DSL198612-198912

83110SPEEDOMETER ASSY

main83110-1C160iEP7#..CS,DX,STD198410-198612

W/O TRIP COUNTER

main83110-1C170iEP7#..CD,DX,XL198410-198612

W/TRIP COUNTER

main83110-1C180iEP71..SE198410-198612

main83110-1C190iEP71..EFI198410-198612

main83110-1C290iEP71..TBO198601-198612

main83110-1C300iEP71..SE198612-198912

main83110-1C310iNP70..SE198612-198912

main83110-1C320iEP71..EFI,TBO198612-198912

main83110-1C370iEP7#..CS,DX,STD198612-198912

W/O TRIP COUNTER

main83110-1C380iEP7#..CD,DX,XL198612-198912

W/TRIP COUNTER

main83110-1C390iNP7#..CS,DX198612-198912

W/O TRIP COUNTER

main83110-1C400iNP7#..CD,DX,XL198612-198912

W/TRIP COUNTER

83132CASE, COMBINATION METER

main83132-10430iEP76198410-198612

main83132-10450iEP71..DX,STD,XL198410-198612

main83132-10570iEP71..RI,SE,SI198410-198612

main83132-10650iEP71..TBO198601-198612

main83132-10670iEP76198612-198912

main83132-10690iEP71..DX,STD,XL198612-198912

main83132-10710iNP7#..CD,CS,DX,XL198612-198912

main83132-10830iEP71..RI,SE,SI,TBS,TOR198612-198912

main83132-10870iNP70..4FC..SE198612-198912

main83132-10890iNP70..5F..SE198612-198912

83133PLATE, COMBINATION METER, NO.1

main83133-10630iEP7#..CD,DX,XL198410-198612

W/TRIP COUNTER & ANALOG.CLOCK

main83133-10650iEP7#..CS,DX,STD198410-198612

main83133-10670iEP7#..CD,DX198410-198612

W/TRIP COUNTER

main83133-10690iEP71..RI,SE,SI,TBS,TOR198410-198612

main83133-10710iEP7#,NP70..CS,DX,STD198612-198912

main83133-10730iEP7#,NP7#..CD,DX198612-198912

W/TRIP COUNTER

main83133-10750iEP71,NP70..XL; EP76..CD..05S198804-198912

W/TRIP COUNTER & ANALOG.CLOCK

main83133-10770iEP71,NP70..RI,SE,SI,TBS,TOR198612-198912

83310GAGE ASSY, FUEL RECEIVER

main83243-10230iEP7#..CD,CS,DX,STD,XL198410-198612

main83243-10250iEP71..SE198410-198612

main83243-10270iEP71..EFI,TBO198410-198612

main83243-10310iEP7#,NP7#..CD,CS,DX,STD,XL198612-198808

main83243-10330iEP71..SE198808-198912

main83243-10350iEP71..EFI,TBO198612-198912

main83243-10390iNP7#..CD,CS,DX,XL198808-198912

main83243-10410iNP70..SE198808-198912

83410GAGE ASSY, WATER TEMPERATURE RECEIVER

main83244-10150iEP7#..CD,CS,DX,STD,XL198410-198612

main83244-10190iEP71..SE198410-198612

main83244-10210iEP71..EFI,TBO198410-198612

83909KNOB, CLOCK

main83909-14012iEP7#,NP7#..CD,DX,XL198612-198912

ANALOGUE

83910CLOCK ASSY

main83910-10130iEP7#..CD,DX,XL198410-198612

ANALOGUE

main83910-10140iEP7#..CD,CS,DX,SE,STD198410-198612

DIGITAL

main83910-10141iEP7#,NP7#..CD,CS,DX,SE,STD,TOR198612-198912

DIGITAL

main83910-10150iEP71..EFI,TBO198410-198612

DIGITAL

main83910-10151iEP71..SI,TBS198612-198912

DIGITAL

main83910-10160iEP7#,NP7#..CD,DX,XL198612-198912

ANALOGUE

83919SCREW, CLOCK

main83919-14012iEP71,NP70..XL; EP76..CD..05S198804-198912

ANALOGUE

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9009300416

main90093-00416

9009900153

main90099-00153

9009900910

main90099-00910

9009900929

main90099-00929

9015950109

main90159-50109

9016750013

main90167-50013

9017905024

main90179-05024

9356755016

main93567-55016

9411540400

main94115-40400

9451100400

main94511-00400

24 parts on this diagram · 6 diagrams in section
