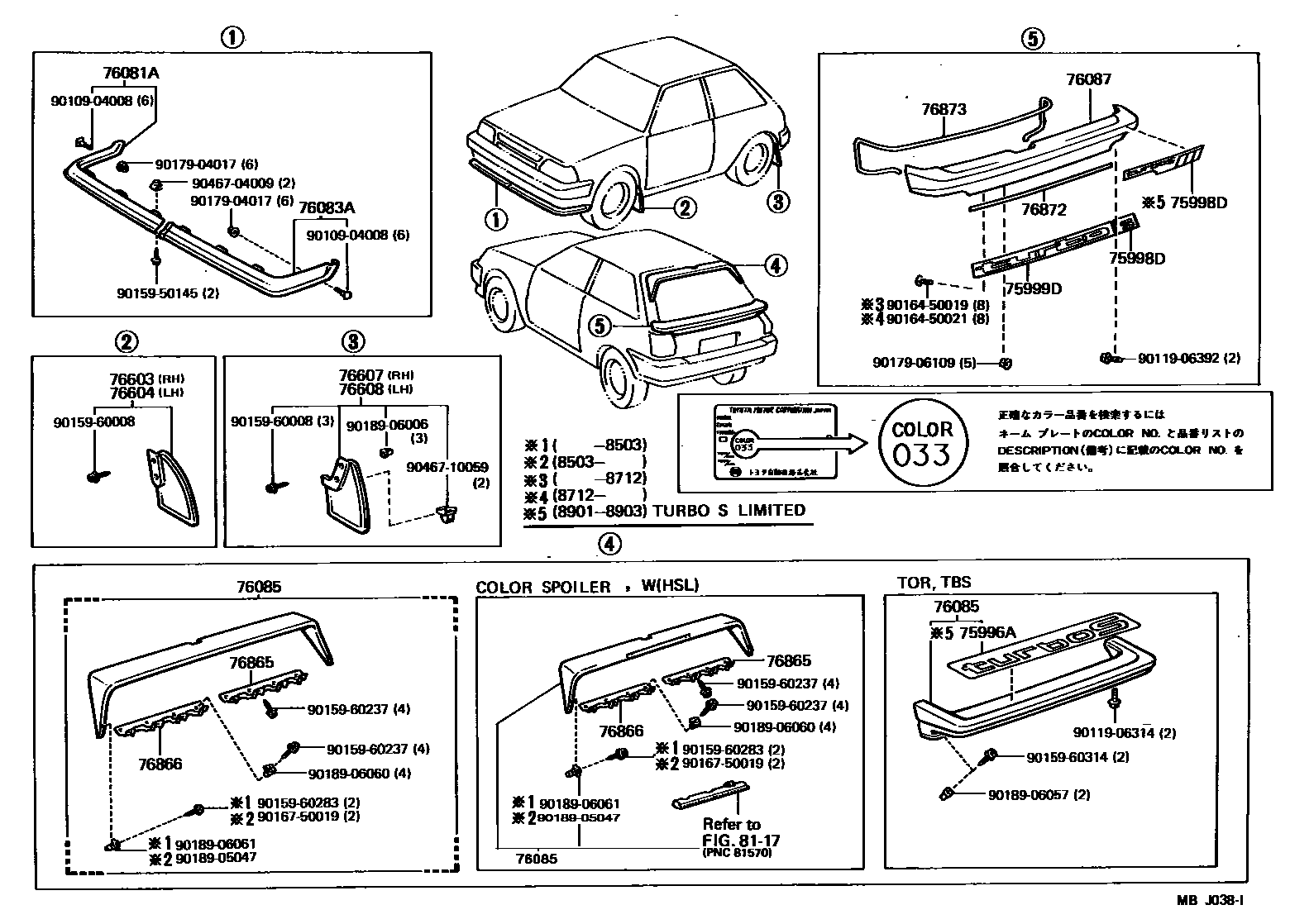

MUDGUARD & SPOILER

75996ASTRIPE, REAR SPOILER, UPPER

main75996-10010-03iEP71..3D..TBS198901-198903

TURBO S LIMITED,GRAY M,GRAY M,041

main75996-10010-04iEP71..3D..TBS198901-198903

TURBO S LIMITED,BLUE,BLUE,157

75998DSTRIPE, REAR SPOILER, REAR RH

main75998-10070iEP71..TBO198712-198912

main75998-10080-03iEP71..3D..TBS198901-198903

TURBO S LIMITED,LIGHT GRAY,LIGHT GRAY,041

main75998-10080-13iEP71..3D..TBS198901-198903

TURBO S LIMITED,SILVER,SILVER,157

75999DSTRIPE, REAR SPOILER, REAR LH

main75999-10070iEP71..TBO198712-198912

76081ASPOILER SUB-ASSY, FRONT RH

main76081-10010iEP71..EFI198410-198612

RH

main76081-10020iEP71..3D..SI198508-198612

SI WHITE LIMITED,RH

main76081-10030-02iEP71..SI198612-198912

RH,RED,RED,3E6

main76081-10030-03iEP71..SI198612-198912

RH,MEDIUM GRAY-M,MEDIUM GRAY METALLIC,27D

main76081-10030-08iEP71..SI198612-198912

RH,WHITE,WHITE,041

main76081-10040iEP71..EFI198612-198912

RH,BLACK

76083ASPOILER SUB-ASSY, FRONT LH

main76083-10010iEP71..EFI198410-198612

LH

main76083-10020iEP71..3D..SI198508-198612

SI WHITE LIMITED,LH

main76083-10030-02iEP71..SI198612-198912

LH,RED,RED,3E6

main76083-10030-03iEP71..SI198612-198912

LH,MEDIUM GRAY-M,MEDIUM GRAY METALLIC,27D ,157

main76083-10030-08iEP71..SI198612-198912

LH,WHITE,WHITE,041

main76083-10040iEP71..EFI198612-198912

LH,BLACK

76085SPOILER SUB-ASSY, REAR

main76085-10040iEP71..TOR198601-198912

main76085-10050-01iEP71..TBS198601-198712

BLACK,BLACK METALLIC,6A5

main76085-10050-03iEP71..TBS198601-198912

SILVER-M,SILVER METALLIC,148

main76085-10050-07iEP71..TBS198712-198912

DARK GREEN-M,DARK GREEN M,6K2

main76085-10050-08iEP71..TBS198601-198912

WHITE,WHITE,041

main76085-10060-01iEP71..SI198612-198912

BLACK,BLACK,27D

main76085-10060-02iEP71..SI198612-198912

RED,RED,3E6

main76085-10060-03iEP71..SI198612-198912

MEDIUM GRAY-M,MEDIUM GRAY METALLIC,157

main76085-10060-08iEP71..SI198612-198912

WHITE,WHITE,041

main76085-10070-11iEP71..TBS198612-198912

GRAY-M/BLACK-M,GRAY M/BLACK M,27D

main76085-10080-03iEP71..3D..TBS198901-198903

TURBO S LIMITED,SILVER M,SILVER M,157

main76085-10080-07iEP71..TBS198804-198912

*HSL,DARK GREEN-M,DARK GREEN M,6K2

main76085-10080-08iEP71..3D..TBS198901-198903

TURBO S LIMITED,WHITE,WHITE,041

main76085-10090-01iEP71..TBS198804-198912

*HSL,GRAY-M/BLACK-M,GRAY M/BLAK M,27D

main76085-19025iEP71..EFI198410-198503

W/RR WIPER

main76085-19026iEP71..EFI198503-198912

W/RR WIPER

main76085-19035iEP71..RI198410-198503

main76085-19036iEP71..RI198503-198912

76087SPOILER SUB-ASSY, REAR NO.1

main76087-10900iEP71..TBO198712-198912

76603MUDGUARD SUB-ASSY, FRONT FENDER, RH

main76603-19135iEP7#,NP7#..(CD,DX,RI,SE,SI,TOR,XL)..05S198410-198912

76604MUDGUARD SUB-ASSY, FRONT FENDER, LH

main76604-19135iEP7#,NP7#..(CD,DX,RI,SE,SI,TOR,XL)..05S198410-198912

76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH

main76607-10040iEP71..3D..SI198508-198612

SI WHITE LIMITED

main76607-19245iEP7#..(CD,DX,RI,SE,SI,XL)..05S198410-198612

main76607-19425iEP71..3D..SI198612-198912

RED

main76607-19435iEP71..3D..SI198612-198912

GRAY

main76607-19445iEP71..3D..SI198612-198912

WHITE

main76607-19455iEP7#,NP7#..(CD,DX,RI,SE,SI,XL)..05S198612-198912

BLACK

76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH

main76608-10040iEP71..3D..SI198508-198612

SI WHITE LIMITED

main76608-19245iEP7#..(CD,DX,RI,SE,SI,XL)..05S198410-198612

main76608-19425iEP71..3D..SI198612-198912

RED

main76608-19435iEP71..3D..SI198612-198912

GRAY

main76608-19445iEP71..3D..SI198612-198912

WHITE

main76608-19455iEP7#,NP7#..(CD,DX,RI,SE,SI,XL)..05S198612-198912

BLACK

76865RETAINER, REAR SPOILER, NO.1

main76865-10010iEP71..EFI198410-198912

76866RETAINER, REAR SPOILER, NO.2

main76866-10010iEP71..EFI198410-198912

76872PROTECTOR, REAR SPOILER, NO.1

main76872-10030iEP71..TBO198712-198912

76873PROTECTOR, REAR SPOILER, NO.2

main76873-10030iEP71..TBO198712-198912

8117CENTER STOP LAMP

→ Go to FIG 81-17

9010904008

main90109-04008

9011906314

main90119-06314

9011906392

main90119-06392

9015950145

main90159-50145

9015960008

main90159-60008

9015960237

main90159-60237

9015960283

main90159-60283

9015960314

main90159-60314

9016450019

main90164-50019

9016450021

main90164-50021

9016750019

main90167-50019

9017904017

main90179-04017

9017906109

main90179-06109

9018905047

main90189-05047

9018906006

main90189-06006

9018906057

main90189-06057

9018906060

main90189-06060

9018906061

main90189-06061

9046704009

main90467-04009

9046710059

main90467-10059

36 parts on this diagram · 1 diagram in section
