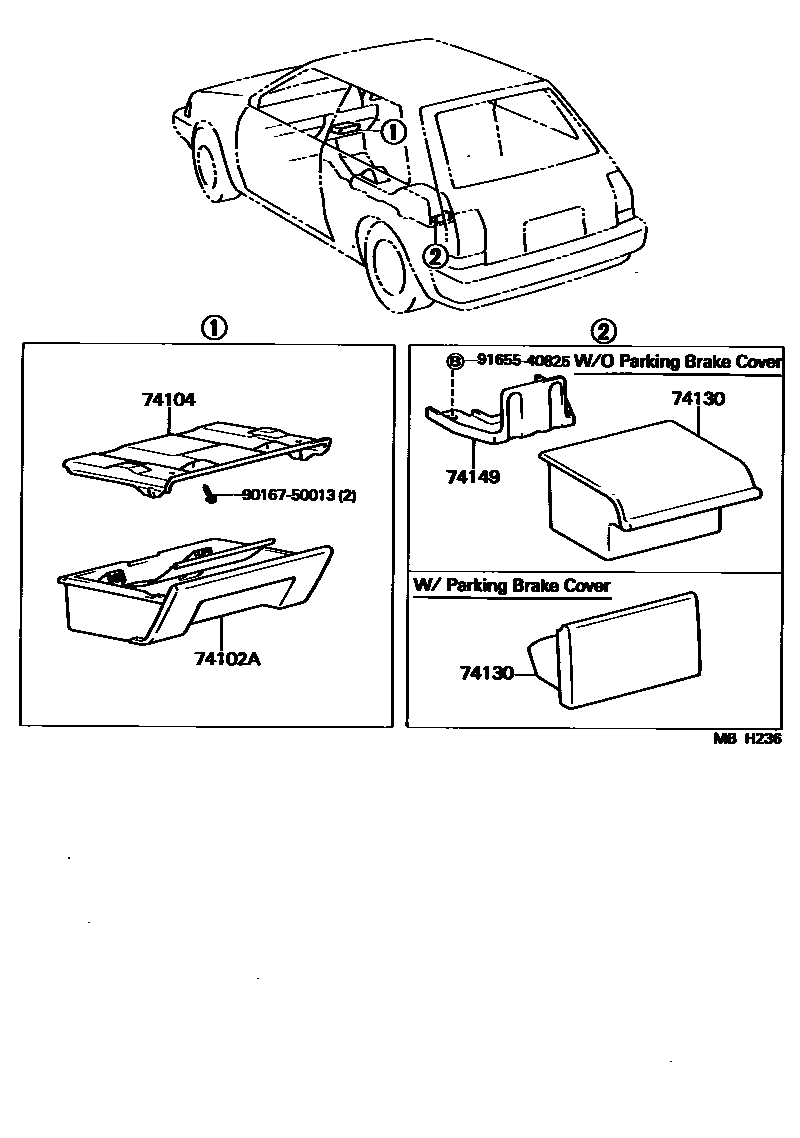

ASH RECEPTACLE

74102ARECEPTACLE ASSY, FRONT ASH

main74102-10030iEP7#,NP7#198410-198912

74104RETAINER SUB-ASSY, ASH RECEPTACLE, NO.1

main74104-10060iEP7#,NP7#198410-198912

74130RECEPTACLE ASSY, REAR ASH

main74130-12040-14iEP7#..(CD,SE,XL)..05S198410-198612

BLUE,BLUE,TRIM8#

main74130-12040-22iEP71..XL198410-198612

LISSE,MAROON,RED/MAROON,TRIM3#

main74130-12040-23iEP7#,NP7#..(CD,SE,SI,TBS,TOR,XL)..05S198410-198912

GRAY,GRAY,TRIM1#

main74130-12040-36iEP71,NP70..SE,XL198612-198912

BROWN,BROWN,TRIM4#

main74130-20060-01iEP71,NP70..DX198410-198912

BLACK,BLACK

74149SUPPORT, REAR ASH RECEPTACLE

main74149-10010iEP71,NP70..DX198410-198912

9016750013

main90167-50013

9165540825

main91655-40825

6 parts on this diagram · 1 diagram in section
