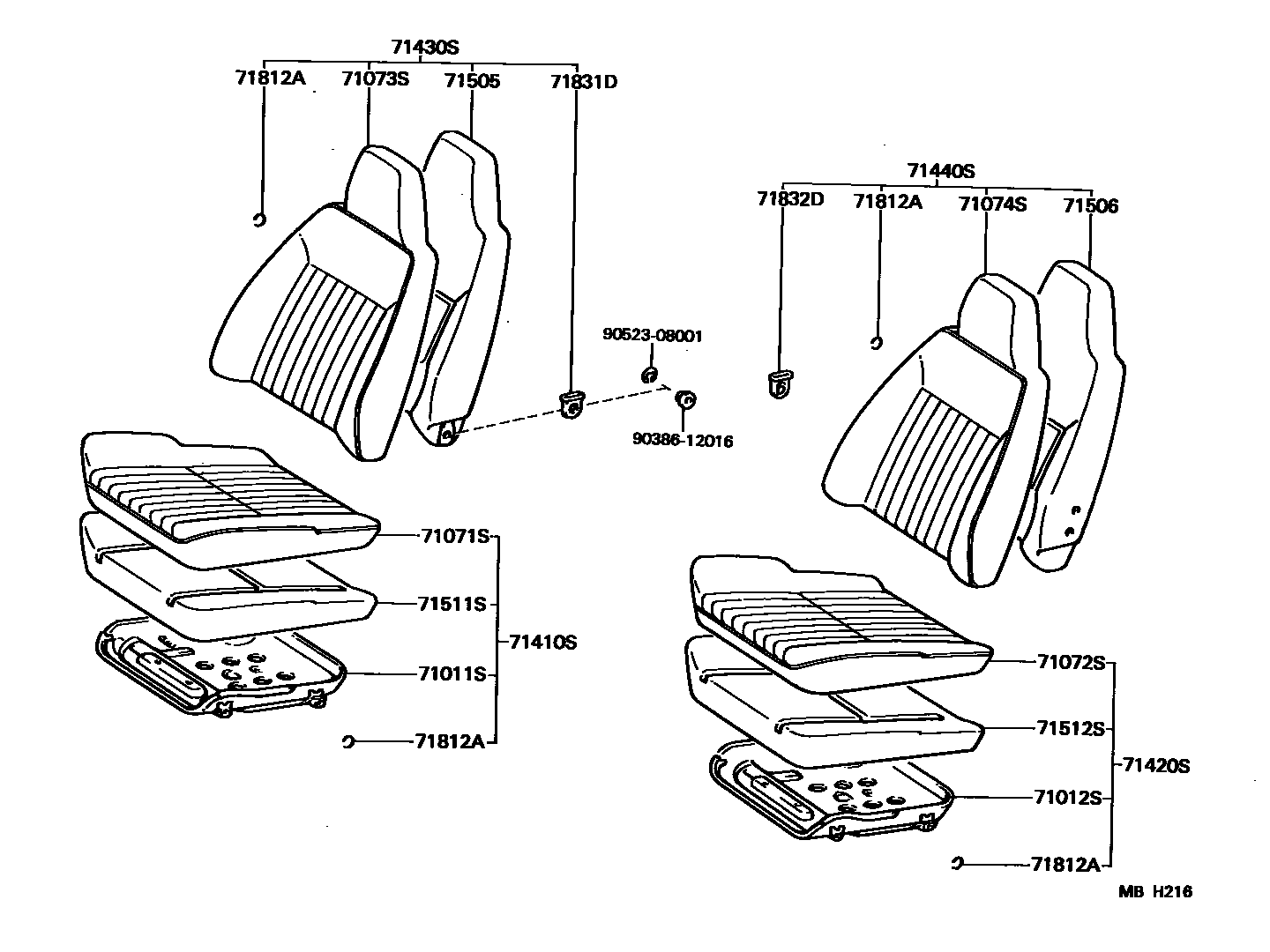

FRONT SEAT & SEAT TRACK

0001 1HIGHT BACK SEAT 0002 1LOW BACK SEAT 0003 1SPORTS SEAT 0004 1

71011SFRAME SUB-ASSY, FRONT SEAT CUSHION, RH

main71011-10080iEP7#,NP7#198612-198912

main71011-10120iEP7#..CD,CS,DX,RI,SI,STD,TBS,TOR,XL198410-198612

main71011-10130iEP71..SE,SI198410-198601

W/LIFTER

main71011-10131iEP71..SE198602-198612

W/LIFTER

71012SFRAME SUB-ASSY, FRONT SEAT CUSHION, LH

main71012-10010iEP7#,NP7#198612-198912

main71012-10040iEP7#198410-198612

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-10480-03iEP7#..CD,XL198601-198612

FULL FB,GRAY,GRAY,TRIM1#

main71071-10480-04iEP7#..CD,XL198601-198612

FULL FB,BLUE,BLUE,TRIM8#

main71071-10510-03iEP7#,NP76..CS,STD198612-198912

VL,GRAY,GRAY,TRIM1#

main71071-10520-03iEP7#,NP7#..CD,DX198612-198912

SEMI FB,GRAY,GRAY,TRIM1#

main71071-10520-06iEP71,NP70..DX198612-198912

SEMI FB,BROWN,BROWN,TRIM4#

main71071-10530-03iEP7#,NP7#..CD,XL198612-198912

FULL FB,GRAY,GRAY,TRIM1#

main71071-10530-06iEP71,NP70..XL198612-198912

FULL FB,BROWN,BROWN,TRIM4#

main71071-10620-03iEP7#..CS,STD198410-198612

VL,GRAY,GRAY,TRIM1#

main71071-10630-03iEP7#..CD,XL198410-198601

FULL FB,GRAY,GRAY,TRIM1#

main71071-10630-04iEP7#..CD,XL198410-198601

FULL FB,BLUE,BLUE,TRIM8#

main71071-10640-02iEP71..RI198410-198612

FULL FB,RED,RED,TRIM1#

main71071-10640-03iEP71..RI198410-198612

FULL FB,GRAY,GRAY,TRIM1#

main71071-10650-02iEP71..XL198410-198601

LISSE,FULL FB,MAROON,MAROON,TRIM3#

main71071-10650-04iEP71..XL198410-198601

LISSE,FULL FB,BLUE,BLUE,TRIM8#

main71071-10650-12iEP71..XL198601-198612

LISSE,FULL FB,MAROON,GRAY,TRIM3#

main71071-10660-02iEP71..SI198410-198612

FULL FB,RED,RED,TRIM1#

main71071-10660-03iEP71..SI198410-198612

FULL FB,GRAY,GRAY,TRIM1#

main71071-10670-02iEP71..SI198410-198601

W/LIFTER,FULL FB,RED,RED,TRIM1#

main71071-10670-03iEP71..SI198410-198601

W/LIFTER,FULL FB,GRAY,GRAY,TRIM1#

main71071-10690-03iEP71..SE198410-198612

FULL FB,GRAY,GRAY,TRIM1#

main71071-10690-04iEP71..SE198410-198612

FULL FB,BLUE,BLUE,TRIM8#

main71071-10700-03iEP7#..CD,DX198410-198612

SEMI FB,GRAY,GRAY,TRIM1#

main71071-10700-04iEP7#..CD,DX198410-198612

SEMI FB,BLUE,BLUE,TRIM8#

main71071-10730-03iEP71..DX198501-198612

DX-A,SOLEIL,SEMI FB,GRAY,GRAY,TRIM1#

main71071-10730-04iEP71..DX198501-198612

DX-A,SOLEIL,SEMI FB,BLUE,BLUE,TRIM8#

main71071-10740-03iEP71..TBO198601-198612

FULL FB,GRAY,GRAY,TRIM1#

main71071-10760-02iEP71..DX198601-198612

SOLEIL-L,SEMI FB,MAROON,MAROON,TRIM3#

main71071-10770-03iEP71..XL198612-198912

LISSE,FULL FB,GRAY,GRAY,TRIM1#

main71071-10770-06iEP71..XL198612-198912

LISSE,FULL FB,BROWN,BROWN,TRIM4#

main71071-10780-03iEP71,NP70..SE198612-198912

FULL FB,GRAY,GRAY,TRIM1#

main71071-10780-06iEP71,NP70..SE198612-198912

FULL FB,BROWN,BROWN,TRIM4#

main71071-10790-03iEP71..RI198612-198912

FULL FB,GRAY,GRAY,TRIM1#

main71071-10800-03iEP71..SI198612-198912

FULL FB,GRAY,GRAY,TRIM1#

main71071-10860-03iEP71,NP70..DX198612-198912

SOLEIL,SEMI FB,GRAY,GRAY,TRIM1#

main71071-10870-03iEP71..TBO198612-198712

FULL FB,GRAY,GRAY,TRIM1#

main71071-10871-03iEP71..TBO198712-198912

FULL FB,GRAY,GRAY,TRIM1#

main71071-1C010-03iEP71..DX198612-198712

SOLEIL-L,SEMI FB,GRAY,GRAY,TRIM1#

main71071-1C010-13iEP71..DX198712-198912

SOLEIL-L,SEMI FB,GRAY & RED,GRAY,TRIM1#

main71071-1C010-23iEP71..DX198712-198912

SOLEIL-L,SEMI FB,GRAY & BLUE,GRAY,TRIM1#

main71071-1C020-03iEP71..3D..TBS198701-198703

TURBO S LIMITED,FULL FB,GRAY,GRAY,TRIM1#

main71071-1C040-03iEP71..3D..TBS198708-198709

TURBO S LIMITED,FULL FB,GRAY,GRAY,TRIM1#

main71071-1C050-03iEP71..3D..DX198804-198912

SOLEIL,W/CANVAS TOP,GRAY,GRAY,TRIM1#

main71071-1C060-03iEP71..3D..SI198804-198912

W/CANVAS TOP,GRAY,GRAY,TRIM1#

main71071-1C080-03iEP71..DX198812-198912

SOLEIL-L EXTRA, SEMI FB,GRAY,GRAY,TRIM1#

main71071-1C090-03iEP71..3D..TBS198901-198903

TURBO S LIMITED,FULL FB,GRAY,GRAY,TRIM1#

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71071-10480-03iEP7#..CD,XL198601-198612

FULL FB,GRAY,GRAY,TRIM1#

main71071-10480-04iEP7#..CD,XL198601-198612

FULL FB,BLUE,BLUE,TRIM8#

main71071-10510-03iEP7#,NP76..CS,STD198612-198912

VL,GRAY,GRAY,TRIM1#

main71071-10520-03iEP7#,NP7#..CD,DX198612-198912

SEMI FB,GRAY,GRAY,TRIM1#

main71071-10520-06iEP71,NP70..DX198612-198912

SEMI FB,BROWN,BROWN,TRIM4#

main71071-10530-03iEP7#,NP7#..CD,XL198612-198912

FULL FB,GRAY,GRAY,TRIM1#

main71071-10530-06iEP71,NP70..XL198612-198912

FULL FB,BROWN,BROWN,TRIM4#

main71071-10620-03iEP7#..CS,STD198410-198612

VL,GRAY,GRAY,TRIM1#

main71071-10630-03iEP7#..CD,XL198410-198601

FULL FB,GRAY,GRAY,TRIM1#

main71071-10630-04iEP7#..CD,XL198410-198601

FULL FB,BLUE,BLUE,TRIM8#

main71071-10640-02iEP71..RI198410-198612

FULL FB,RED,RED,TRIM1#

main71071-10640-03iEP71..RI198410-198612

FULL FB,GRAY,GRAY,TRIM1#

main71071-10650-02iEP71..XL198410-198601

LISSE,FULL FB,MAROON,MAROON,TRIM3#

main71071-10650-04iEP71..XL198410-198601

LISSE,FULL FB,BLUE,BLUE,TRIM8#

main71071-10650-12iEP71..XL198601-198612

LISSE,FULL FB,MAROON,GRAY,TRIM3#

main71071-10660-02iEP71..SI198410-198612

FULL FB,RED,RED,TRIM1#

main71071-10660-03iEP71..SI198410-198612

FULL FB,GRAY,GRAY,TRIM1#

main71071-10680-03iEP71..SE198410-198612

FULL FB,GRAY,GRAY,TRIM1#

main71071-10680-04iEP71..SE198410-198612

FULL FB,BLUE,BLUE,TRIM8#

main71071-10700-03iEP7#..CD,DX198410-198612

SEMI FB,GRAY,GRAY,TRIM1#

main71071-10700-04iEP7#..CD,DX198410-198612

SEMI FB,BLUE,BLUE,TRIM8#

main71071-10730-03iEP71..DX198501-198612

DX-A,SOLEIL,SEMI FB,GRAY,GRAY,TRIM1#

main71071-10730-04iEP71..DX198501-198612

DX-A,SOLEIL,SEMI FB,BLUE,BLUE,TRIM8#

main71071-10740-03iEP71..TBO198601-198612

FULL FB,GRAY,GRAY,TRIM1#

main71071-10760-02iEP71..DX198601-198612

SOLEIL-L,SEMI FB,MAROON,MAROON,TRIM3#

main71071-10770-03iEP71..XL198612-198912

LISSE,FULL FB,GRAY,GRAY,TRIM1#

main71071-10770-06iEP71..XL198612-198912

LISSE,FULL FB,BROWN,BROWN,TRIM4#

main71071-10780-03iEP71,NP70..SE198612-198912

FULL FB,GRAY,GRAY,TRIM1#

main71071-10780-06iEP71,NP70..SE198612-198912

FULL FB,BROWN,BROWN,TRIM4#

main71071-10790-03iEP71..RI198612-198912

FULL FB,GRAY,GRAY,TRIM1#

main71071-10800-03iEP71..SI198612-198912

FULL FB,GRAY,GRAY,TRIM1#

main71071-10860-03iEP71,NP70..DX198612-198912

SOLEIL,SEMI FB,GRAY,GRAY,TRIM1#

main71071-10870-03iEP71..TBO198612-198712

FULL FB,GRAY,GRAY,TRIM1#

main71071-10871-03iEP71..TBO198712-198912

FULL FB,GRAY,GRAY,TRIM1#

main71071-1C010-03iEP71..DX198612-198712

SOLEIL-L,SEMI FB,GRAY,GRAY,TRIM1#

main71071-1C010-13iEP71..DX198712-198912

SOLEIL-L,SEMI FB,GRAY & RED,GRAY,TRIM1#

main71071-1C010-23iEP71..DX198712-198912

SOLEIL-L,SEMI FB,GRAY & BLUE,GRAY,TRIM1#

main71071-1C020-03iEP71..3D..TBS198701-198703

TURBO S LIMITED,FULL FB,GRAY,GRAY,TRIM1#

main71071-1C040-03iEP71..3D..TBS198708-198709

TURBO S LIMITED,FULL FB,GRAY,GRAY,TRIM1#

main71071-1C050-03iEP71..3D..DX198804-198912

SOLEIL,W/CANVAS TOP,GRAY,GRAY,TRIM1#

main71071-1C060-03iEP71..3D..SI198804-198912

W/CANVAS TOP,GRAY,GRAY,TRIM1#

main71071-1C080-03iEP71..DX198812-198912

SOLEIL-L EXTRA, SEMI FB,GRAY,GRAY,TRIM1#

main71071-1C090-03iEP71..3D..TBS198901-198903

TURBO S LIMITED,FULL FB,GRAY,GRAY,TRIM1#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-10490-03iEP7#..CD,XL198601-198612

FULL FB,GRAY,GRAY,TRIM1#

main71073-10490-04iEP7#..CD,XL198601-198612

FULL FB,BLUE,BLUE,TRIM8#

main71073-10500-02iEP71..XL198601-198612

LISSE,FULL FB,MAROON,MAROON,TRIM3#

main71073-10520-03iEP7#,NP7#..CD,XL198612-198912

FULL FB,GRAY,GRAY,TRIM1#

main71073-10520-06iEP71,NP70..XL198612-198912

FULL FB,BROWN,BROWN,TRIM4#

main71073-10590-03iEP7#,NP7#..CD,DX198410-198912

SEMI FB,GRAY,GRAY,TRIM1#

main71073-10590-04iEP7#..CD,DX198410-198612

SEMI FB,BLUE,BLUE,TRIM8#

main71073-10590-06iEP71,NP70..DX198612-198912

SEMI FB,BROWN,BROWN,TRIM4#

main71073-10600-02iEP71..RI198410-198612

FULL FB,RED,RED,TRIM1#

main71073-10600-03iEP71..RI198410-198912

FULL FB,GRAY,GRAY,TRIM1#

main71073-10630-03iEP7#,NP76..CS,STD198410-198912

VL,GRAY,GRAY,TRIM1#

main71073-10640-03iEP7#..CD,XL198410-198601

FULL FB,GRAY,GRAY,TRIM1#

main71073-10640-04iEP7#..CD,XL198410-198601

FULL FB,BLUE,BLUE,TRIM8#

main71073-10650-02iEP71..XL198410-198601

LISSE,FULL FB,MAROON,MAROON,TRIM3#

main71073-10650-04iEP71..XL198410-198601

LISSE,FULL FB,BLUE,BLUE,TRIM8#

main71073-10660-02iEP71..SI198410-198612

FULL FB,RED,RED,TRIM1#

main71073-10660-03iEP71..SI198410-198612

FULL FB,GRAY,GRAY,TRIM1#

main71073-10670-02iEP71..SI198410-198601

W/LIFTER,FULL FB,RED,RED,TRIM1#

main71073-10670-03iEP71..SI198410-198601

W/LIFTER,FULL FB,GRAY,GRAY,TRIM1#

main71073-10680-03iEP71..SE198410-198612

FULL FB,GRAY,GRAY,TRIM1#

main71073-10680-04iEP71..SE198410-198612

FULL FB,BLUE,BLUE,TRIM8#

main71073-10690-02iEP71..RI198410-198612

W/BODY SONIC,FULL FB,RED,RED,TRIM1#

main71073-10690-03iEP71..RI198410-198612

W/BODY SONIC,FULL FB,GRAY,GRAY,TRIM1#

main71073-10700-02iEP71..SI198410-198612

W/BODY SONIC,FULL FB,RED,RED,TRIM1#

main71073-10700-03iEP71..SI198410-198612

W/BODY SONIC,FULL FB,GRAY,GRAY,TRIM1#

main71073-10720-03iEP71..DX198501-198612

DX-A,SOLEIL,SEMI FB,GRAY,GRAY,TRIM1#

main71073-10720-04iEP71..DX198501-198612

DX-A,SOLEIL,SEMI FB,BLUE,BLUE,TRIM8#

main71073-10730-03iEP71..TBO198601-198712

FULL FB,GRAY,GRAY,TRIM1#

main71073-10731-03iEP71..TBO198712-198912

FULL FB,GRAY,GRAY,TRIM1#

main71073-10740-03iEP71..TBO198601-198712

W/BODY SONIC,FULL FB,GRAY,GRAY,TRIM1#

main71073-10741-03iEP71..TBO198712-198912

W/BODY SONIC,FULL FB,GRAY,GRAY,TRIM1#

main71073-10760-02iEP71..DX198601-198612

SOLEIL-L,SEMI FB,MAROON,MAROON,TRIM3#

main71073-10770-03iEP71..XL198612-198912

LISSE,FULL FB,GRAY,GRAY,TRIM1#

main71073-10770-06iEP71..XL198612-198912

LISSE,FULL FB,BROWN,BROWN,TRIM4#

main71073-10780-03iEP71,NP70..SE198612-198912

FULL FB,GRAY,GRAY,TRIM1#

main71073-10780-06iEP71,NP70..SE198612-198912

FULL FB,BROWN,BROWN,TRIM4#

main71073-10790-03iEP71..SI198612-198912

FULL FB,GRAY,GRAY,TRIM1#

main71073-10800-03iEP71..SI198612-198912

W/BODY SONIC,FULL FB,GRAY,GRAY,TRIM1#

main71073-10850-03iEP71,NP70..DX198612-198912

SOLEIL,SEMI FB,GRAY,GRAY,TRIM1#

main71073-10870-03iEP71..DX198612-198712

SOLEIL-L,SEMI FB,GRAY,GRAY,TRIM1#

main71073-10870-13iEP71..DX198712-198912

SOLEIL-L,SEMI FB,GRAY & RED,GRAY,TRIM1#

main71073-10870-23iEP71..DX198712-198912

SOLEIL-L,SEMI FB,GRAY & BLUE,GRAY,TRIM1#

main71073-10880-03iEP71..3D..TBS198701-198703

TURBO S LIMITED,FULL FB,GRAY,GRAY,TRIM1#

main71073-1C010-03iEP71..3D..TBS198708-198709

TURBO S LIMITED,FULL FB,GRAY,GRAY,TRIM1#

main71073-1C020-03iEP71..3D..DX198804-198912

SOLEIL,W/CANVAS TOP,GRAY,GRAY,TRIM1#

main71073-1C030-03iEP71..3D..SI198804-198912

W/CANVAS TOP,GRAY,GRAY,TRIM1#

main71073-1C040-03iEP71..3D..SI198804-198912

W/CANVAS TOP & BODY SONIC,GRAY,GRAY,TRIM1#

main71073-1C060-03iEP71..DX198812-198912

SOLEIL-L EXTRA, SEMI FB,GRAY,GRAY,TRIM1#

main71073-1C070-03iEP71..3D..TBS198901-198903

TURBO S LIMITED,FULL FB,GRAY,GRAY,TRIM1#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-10070-03iEP71..SE198410-198612

FULL FB,GRAY,GRAY,TRIM1#

main71074-10070-04iEP71..SE198410-198612

FULL FB,BLUE,BLUE,TRIM8#

main71074-10090-03iEP7#,NP7#..CD,DX198410-198912

SEMI FB,GRAY,GRAY,TRIM1#

main71074-10090-04iEP7#..CD,DX198410-198612

SEMI FB,BLUE,BLUE,TRIM8#

main71074-10090-06iEP71,NP70..DX198612-198912

SEMI FB,BROWN,BROWN,TRIM4#

main71074-10100-02iEP71..RI198410-198612

FULL FB,RED,RED,TRIM1#

main71074-10100-03iEP71..RI198410-198912

FULL FB,GRAY,GRAY,TRIM1#

main71074-10130-03iEP7#..CS,STD198410-198912

VL,GRAY,GRAY,TRIM1#

main71074-10140-03iEP7#..CD,XL198410-198601

FULL FB,GRAY,GRAY,TRIM1#

main71074-10140-04iEP7#..CD,XL198410-198601

FULL FB,BLUE,BLUE,TRIM8#

main71074-10150-02iEP71..XL198410-198601

LISSE,FULL FB,MAROON,MAROON,TRIM3#

main71074-10150-04iEP71..XL198410-198601

LISSE,FULL FB,BLUE,BLUE,TRIM8#

main71074-10160-02iEP71..RI198410-198612

W/BODY SONIC,FULL FB,RED,RED,TRIM1#

main71074-10160-03iEP71..RI198410-198612

W/BODY SONIC,FULL FB,GRAY,GRAY,TRIM1#

main71074-10170-02iEP71..SI198410-198612

FULL FB,RED,RED,TRIM1#

main71074-10170-03iEP71..SI198410-198612

FULL FB,GRAY,GRAY,TRIM1#

main71074-10180-02iEP71..SI198410-198612

W/BODY SONIC,FULL FB,RED,RED,TRIM1#

main71074-10180-03iEP71..SI198410-198612

W/BODY SONIC,FULL FB,GRAY,GRAY,TRIM1#

main71074-10200-03iEP71..DX198501-198612

DX-A,SOLEIL,SEMI FB,GRAY,GRAY,TRIM1#

main71074-10200-04iEP71..DX198501-198612

DX-A,SOLEIL,SEMI FB,BLUE,BLUE,TRIM8#

main71074-10210-03iEP71..TBO198601-198712

FULL FB,GRAY,GRAY,TRIM1#

main71074-10211-03iEP71..TBO198712-198912

FULL FB,GRAY,GRAY,TRIM1#

main71074-10220-03iEP71..TBO198601-198712

W/BODY SONIC,FULL FB,GRAY,GRAY,TRIM1#

main71074-10221-03iEP71..TBO198712-198912

W/BODY SONIC,FULL FB,GRAY,GRAY,TRIM1#

main71074-10230-02iEP71..DX198601-198612

SOLEIL-L,SEMI FB,MAROON,MAROON,TRIM3#

main71074-10240-03iEP7#..CD,XL198601-198612

FULL FB,GRAY,GRAY,TRIM1#

main71074-10240-04iEP7#..CD,XL198601-198612

FULL FB,BLUE,BLUE,TRIM8#

main71074-10250-02iEP71..XL198601-198612

LISSE,FULL FB,MAROON,MAROON,TRIM3#

main71074-10270-03iEP7#,NP7#..CD,XL198612-198912

FULL FB,GRAY,GRAY,TRIM1#

main71074-10270-06iEP71,NP70..XL198612-198912

FULL FB,BROWN,BROWN,TRIM4#

main71074-10280-03iEP71..XL198612-198912

LISSE,FULL FB,GRAY,GRAY,TRIM1#

main71074-10280-06iEP71..XL198612-198912

LISSE,FULL FB,BROWN,BROWN,TRIM4#

main71074-10290-03iEP71..SE198612-198912

FULL FB,GRAY,GRAY,TRIM1#

main71074-10290-06iEP71..SE198612-198912

FULL FB,BROWN,BROWN,TRIM4#

main71074-10300-03iEP71..SI198612-198912

FULL FB,GRAY,GRAY,TRIM1#

main71074-10310-03iEP71..SI198612-198912

W/BODY SONIC,FULL FB,GRAY,GRAY,TRIM1#

main71074-10350-03iEP71,NP70..DX198612-198912

SOLEIL,SEMI FB,GRAY,GRAY,TRIM1#

main71074-10360-03iEP71..3D..DX198804-198912

SOLEIL,W/CANVAS TOP,GRAY,GRAY,TRIM1#

main71074-10380-03iEP71..DX198612-198712

SOLEIL-L,SEMI FB,GRAY,GRAY,TRIM1#

main71074-10380-13iEP71..DX198712-198912

SOLEIL-L,SEMI FB,GRAY & RED,GRAY,TRIM1#

main71074-10380-23iEP71..DX198712-198912

SOLEIL-L,SEMI FB,GRAY & BLUE,GRAY,TRIM1#

main71074-10390-03iEP71..3D..TBS198701-198703

TURBO S LIMITED,FULL FB,GRAY,GRAY,TRIM1#

main71074-10410-03iEP71..3D..TBS198708-198709

TURBO S LIMITED,FULL FB,GRAY,GRAY,TRIM1#

main71074-10420-03iEP71..3D..SI198804-198912

W/CANVAS TOP,GRAY,GRAY,TRIM1#

main71074-10430-03iEP71..3D..SI198804-198912

W/CANVAS TOP & BODY SONIC,GRAY,GRAY,TRIM1#

main71074-10450-03iEP71..DX198812-198912

SOLEIL-L EXTRA, SEMI FB,GRAY,GRAY,TRIM1#

main71074-10460-03iEP71..3D..TBS198901-198903

TURBO S LIMITED,FULL FB,GRAY,GRAY,TRIM1#

71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71410-10610-03iEP7#..CD,XL198601-198612

FULL FB,GRAY,GRAY,TRIM1#

main71410-10610-04iEP7#..CD,XL198601-198612

FULL FB,BLUE,BLUE,TRIM8#

main71410-10640-03iEP7#,NP76..CS,STD198612-198912

VL,GRAY,GRAY,TRIM1#

main71410-10650-03iEP7#,NP7#..CD,DX198612-198912

SEMI FB,GRAY,GRAY,TRIM1#

main71410-10650-06iEP71,NP70..DX198612-198912

SEMI FB,BROWN,BROWN,TRIM4#

main71410-10670-03iEP7#,NP7#..CD,XL198612-198912

FULL FB,GRAY,GRAY,TRIM1#

main71410-10670-06iEP71,NP70..XL198612-198912

FULL FB,BROWN,BROWN,TRIM4#

main71410-10680-03iEP71..XL198612-198912

LISSE,FULL FB,GRAY,GRAY,TRIM1#

main71410-10680-06iEP71..XL198612-198912

LISSE,FULL FB,BROWN,BROWN,TRIM4#

main71410-10750-02iEP71..XL198410-198601

LISSE,FULL FB,MAROON,MAROON,TRIM3#

main71410-10750-04iEP71..XL198410-198601

LISSE,FULL FB,BLUE,BLUE,TRIM8#

main71410-10750-12iEP71..XL198601-198612

LISSE,FULL FB,MAROON,GRAY,TRIM3#

main71410-10760-02iEP71..SI198410-198612

FULL FB,RED,RED,TRIM1#

main71410-10760-03iEP71..SI198410-198612

FULL FB,GRAY,GRAY,TRIM1#

main71410-10770-03iEP7#..CS,STD198410-198612

VL,GRAY,GRAY,TRIM1#

main71410-10780-03iEP7#..CD,XL198410-198601

FULL FB,GRAY,GRAY,TRIM1#

main71410-10780-04iEP7#..CD,XL198410-198601

FULL FB,BLUE,BLUE,TRIM8#

main71410-10790-03iEP71..SE198410-198602

FULL FB,GRAY,GRAY,TRIM1#

main71410-10790-04iEP71..SE198410-198602

FULL FB,BLUE,BLUE,TRIM8#

main71410-10791-03iEP71..SE198602-198612

FULL FB,GRAY,GRAY,TRIM1#

main71410-10791-04iEP71..SE198602-198612

FULL FB,BLUE,BLUE,TRIM8#

main71410-10800-03iEP7#..CD,DX198410-198612

SEMI FB,GRAY,GRAY,TRIM1#

main71410-10800-04iEP7#..CD,DX198410-198612

SEMI FB,BLUE,BLUE,TRIM8#

main71410-10810-02iEP71..RI198410-198612

FULL FB,RED,RED,TRIM1#

main71410-10810-03iEP71..RI198410-198612

FULL FB,GRAY,GRAY,TRIM1#

main71410-10820-02iEP71..SI198410-198601

W/LIFTER,FULL FB,RED,RED,TRIM1#

main71410-10820-03iEP71..SI198410-198601

W/LIFTER,FULL FB,GRAY,GRAY,TRIM1#

main71410-10870-03iEP71..DX198501-198612

DX-A,SOLEIL,SEMI FB,GRAY,GRAY,TRIM1#

main71410-10870-04iEP71..DX198501-198612

DX-A,SOLEIL,SEMI FB,BLUE,BLUE,TRIM8#

main71410-10880-03iEP71..TBO198601-198612

FULL FB,GRAY,GRAY,TRIM1#

main71410-1C020-03iEP71,NP70..SE198612-198912

FULL FB,GRAY,GRAY,TRIM1#

main71410-1C020-06iEP71,NP70..SE198612-198912

FULL FB,BROWN,BROWN,TRIM4#

main71410-1C030-03iEP71..RI198612-198912

FULL FB,GRAY,GRAY,TRIM1#

main71410-1C040-03iEP71..SI198612-198912

FULL FB,GRAY,GRAY,TRIM1#

main71410-1C050-03iEP71..TBO198612-198712

FULL FB,GRAY,GRAY,TRIM1#

main71410-1C051-03iEP71..TBO198712-198912

FULL FB,GRAY,GRAY,TRIM1#

main71410-1C170-03iEP71..DX198612-198712

SOLEIL-L,SEMI FB,GRAY,GRAY,TRIM1#

main71410-1C170-13iEP71..DX198712-198912

SOLEIL-L,SEMI FB,GRAY & RED,GRAY,TRIM1#

main71410-1C170-23iEP71..DX198712-198912

SOLEIL-L,SEMI FB,GRAY & BLUE,GRAY,TRIM1#

main71410-1C200-03iEP71..3D..DX198804-198912

SOLEIL,W/CANVAS TOP,GRAY,GRAY,TRIM1#

main71410-1C210-03iEP71..3D..SI198804-198912

W/CANVAS TOP,GRAY,GRAY,TRIM1#

main71410-1C230-03iEP71..DX198812-198912

SOLEIL-L EXTRA, SEMI FB,GRAY,GRAY,TRIM1#

71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

main71420-10440-03iEP7#..CD,XL198601-198612

FULL FB,GRAY,GRAY,TRIM1#

main71420-10440-04iEP7#..CD,XL198601-198612

FULL FB,BLUE,BLUE,TRIM8#

main71420-10470-03iEP7#,NP76..CS,STD198612-198912

VL,GRAY,GRAY,TRIM1#

main71420-10480-03iEP7#,NP7#..CD,DX198612-198912

SEMI FB,GRAY,GRAY,TRIM1#

main71420-10480-06iEP71,NP70..DX198612-198912

SEMI FB,BROWN,BROWN,TRIM4#

main71420-10490-03iEP71,NP70..DX198612-198912

SOLEIL,SEMI FB,GRAY,GRAY,TRIM1#

main71420-10500-03iEP7#,NP7#..CD,XL198612-198912

FULL FB,GRAY,GRAY,TRIM1#

main71420-10500-06iEP71,NP70..XL198612-198912

FULL FB,BROWN,BROWN,TRIM4#

main71420-10510-03iEP71..XL198612-198912

LISSE,FULL FB,GRAY,GRAY,TRIM1#

main71420-10510-06iEP71..XL198612-198912

LISSE,FULL FB,BROWN,BROWN,TRIM4#

main71420-10520-03iEP71..SE198612-198912

FULL FB,GRAY,GRAY,TRIM1#

main71420-10520-06iEP71..SE198612-198912

FULL FB,BROWN,BROWN,TRIM4#

main71420-10530-03iEP71..RI198612-198912

FULL FB,GRAY,GRAY,TRIM1#

main71420-10540-03iEP71..SI198612-198912

FULL FB,GRAY,GRAY,TRIM1#

main71420-10590-02iEP71..XL198410-198601

LISSE,FULL FB,MAROON,MAROON,TRIM3#

main71420-10590-04iEP71..XL198410-198601

LISSE,FULL FB,BLUE,BLUE,TRIM8#

main71420-10590-12iEP71..XL198601-198612

LISSE,FULL FB,MAROON,GRAY,TRIM3#

main71420-10600-02iEP71..SI198410-198612

FULL FB,RED,RED,TRIM1#

main71420-10600-03iEP71..SI198410-198612

FULL FB,GRAY,GRAY,TRIM1#

main71420-10610-03iEP7#..CS,STD198410-198612

VL,GRAY,GRAY,TRIM1#

main71420-10620-03iEP7#..CD,XL198410-198601

FULL FB,GRAY,GRAY,TRIM1#

main71420-10620-04iEP7#..CD,XL198410-198601

FULL FB,BLUE,BLUE,TRIM8#

main71420-10630-03iEP71..SE198410-198612

FULL FB,GRAY,GRAY,TRIM1#

main71420-10630-04iEP71..SE198410-198612

FULL FB,BLUE,BLUE,TRIM8#

main71420-10640-03iEP7#..CD,DX198410-198612

SEMI FB,GRAY,GRAY,TRIM1#

main71420-10640-04iEP7#..CD,DX198410-198612

SEMI FB,BLUE,BLUE,TRIM8#

main71420-10650-02iEP71..RI198410-198612

FULL FB,RED,RED,TRIM1#

main71420-10650-03iEP71..RI198410-198612

FULL FB,GRAY,GRAY,TRIM1#

main71420-10700-03iEP71..DX198501-198612

DX-A,SOLEIL,SEMI FB,GRAY,GRAY,TRIM1#

main71420-10700-04iEP71..DX198501-198612

DX-A,SOLEIL,SEMI FB,BLUE,BLUE,TRIM8#

main71420-10710-03iEP71..TBO198601-198612

FULL FB,GRAY,GRAY,TRIM1#

main71420-10730-03iEP71..TBO198612-198712

FULL FB,GRAY,GRAY,TRIM1#

main71420-10731-03iEP71..TBO198712-198912

FULL FB,GRAY,GRAY,TRIM1#

main71420-10740-03iEP71..3D..DX198804-198912

SOLEIL,W/CANVAS TOP,GRAY,GRAY,TRIM1#

main71420-10860-03iEP71..DX198612-198712

SOLEIL-L,SEMI FB,GRAY,GRAY,TRIM1#

main71420-10860-13iEP71..DX198712-198912

SOLEIL-L,SEMI FB,GRAY & RED,GRAY,TRIM1#

main71420-10860-23iEP71..DX198712-198912

SOLEIL-L,SEMI FB,GRAY & BLUE,GRAY,TRIM1#

main71420-10890-03iEP71..3D..SI198804-198912

W/CANVAS TOP,GRAY,GRAY,TRIM1#

main71420-1C020-03iEP71..DX198812-198912

SOLEIL-L EXTRA, SEMI FB,GRAY,GRAY,TRIM1#

71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71430-10570-03iEP7#..CD,XL198601-198612

FULL FB,GRAY,GRAY,TRIM1#

main71430-10570-04iEP7#..CD,XL198601-198612

FULL FB,BLUE,BLUE,TRIM1#

main71430-10580-02iEP71..XL198601-198612

LISSE,FULL FB,MAROON,MAROON,TRIM1#

main71430-10600-03iEP71,NP70..DX198612-198912

SOLEIL,SEMI FB,GRAY,GRAY,TRIM1#

main71430-10660-02iEP71..XL198410-198601

LISSE,FULL FB,MAROON,MAROON,TRIM3#

main71430-10660-04iEP71..XL198410-198601

LISSE,FULL FB,BLUE,BLUE,TRIM8#

main71430-10670-03iEP71..DX198501-198612

DX-A,SOLEIL,SEMI FB,GRAY,GRAY,TRIM1#

main71430-10670-04iEP71..DX198501-198612

DX-A,SOLEIL,SEMI FB,BLUE,BLUE,TRIM1#

main71430-10680-03iEP7#,NP76..CS,STD198410-198912

VL,GRAY,GRAY,TRIM1#

main71430-10690-03iEP7#..CD,XL198410-198601

FULL FB,GRAY,GRAY,TRIM1#

main71430-10690-04iEP7#..CD,XL198410-198601

FULL FB,BLUE,BLUE,TRIM8#

main71430-10700-02iEP71..SI198410-198612

W/BODY SONIC,FULL FB,RED,RED,TRIM1#

main71430-10700-03iEP71..SI198410-198612

W/BODY SONIC,FULL FB,GRAY,GRAY,TRIM1#

main71430-10710-02iEP71..SI198410-198612

FULL FB,RED,RED,TRIM1#

main71430-10710-03iEP71..SI198410-198612

FULL FB,GRAY,GRAY,TRIM1#

main71430-10720-03iEP71..SE198410-198612

FULL FB,GRAY,GRAY,TRIM1#

main71430-10720-04iEP71..SE198410-198612

FULL FB,BLUE,BLUE,TRIM8#

main71430-10730-03iEP7#,NP7#..CD,DX198410-198912

SEMI FB,GRAY,GRAY,TRIM1#

main71430-10730-04iEP7#..CD,DX198410-198612

SEMI FB,BLUE,BLUE,TRIM8#

main71430-10730-06iEP71,NP70..DX198612-198912

SEMI FB,BROWN,BROWN,TRIM4#

main71430-10740-02iEP71..RI198410-198612

FULL FB,RED,RED,TRIM1#

main71430-10740-03iEP71..RI198410-198912

FULL FB,GRAY,GRAY,TRIM1#

main71430-10750-02iEP71..RI198410-198612

W/BODY SONIC,FULL FB,RED,RED,TRIM1#

main71430-10750-03iEP71..RI198410-198612

W/BODY SONIC,FULL FB,GRAY,GRAY,TRIM1#

main71430-10760-02iEP71..SI198410-198601

W/LIFTER,FULL FB,RED,RED,TRIM1#

main71430-10760-03iEP71..SI198410-198601

W/LIFTER,FULL FB,GRAY,GRAY,TRIM1#

main71430-10820-03iEP71..TBO198601-198712

FULL FB,GRAY,GRAY,TRIM1#

main71430-10821-03iEP71..TBO198712-198912

FULL FB,GRAY,GRAY,TRIM1#

main71430-10830-03iEP71..TBO198601-198712

W/BODY SONIC,FULL FB,GRAY,GRAY,TRIM1#

main71430-10831-03iEP71..TBO198712-198912

W/BODY SONIC,FULL FB,GRAY,GRAY,TRIM1#

main71430-10860-03iEP7#,NP7#..CD,XL198612-198912

FULL FB,GRAY,GRAY,TRIM1#

main71430-10860-06iEP71,NP70..XL198612-198912

FULL FB,BROWN,BROWN,TRIM4#

main71430-10870-03iEP71..XL198612-198912

LISSE,FULL FB,GRAY,GRAY,TRIM1#

main71430-10870-06iEP71..XL198612-198912

LISSE,FULL FB,BROWN,BROWN,TRIM4#

main71430-10880-03iEP71,NP70..SE198612-198912

FULL FB,GRAY,GRAY,TRIM1#

main71430-10880-06iEP71,NP70..SE198612-198912

FULL FB,BROWN,BROWN,TRIM4#

main71430-10890-03iEP71..SI198612-198912

FULL FB,GRAY,GRAY,TRIM1#

main71430-1C010-03iEP71..SI198612-198912

W/BODY SONIC,FULL FB,GRAY,GRAY,TRIM1#

main71430-1C080-03iEP71..DX198612-198712

SOLEIL-L,SEMI FB,GRAY,GRAY,TRIM1#

main71430-1C080-13iEP71..DX198712-198912

SOLEIL-L,SEMI FB,GRAY & RED,GRAY,TRIM1#

main71430-1C080-23iEP71..DX198712-198912

SOLEIL-L,SEMI FB,GRAY & BLUE,GRAY,TRIM1#

main71430-1C120-03iEP71..3D..DX198804-198912

SOLEIL,W/CANVAS TOP,GRAY,GRAY,TRIM1#

main71430-1C130-03iEP71..3D..SI198804-198912

W/CANVAS TOP,GRAY,GRAY,TRIM1#

main71430-1C140-03iEP71..3D..SI198804-198912

W/CANVAS TOP & BODY SONIC,GRAY,GRAY,TRIM1#

main71430-1C160-03iEP71..DX198812-198912

SOLEIL-L EXTRA, SEMI FB,GRAY,GRAY,TRIM1#

71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

main71440-10350-03iEP71..DX198612-198712

SOLEIL-L,SEMI FB,GRAY,GRAY,TRIM1#

main71440-10350-13iEP71..DX198712-198912

SOLEIL-L,SEMI FB,GRAY & RED,GRAY,TRIM1#

main71440-10350-23iEP71..DX198712-198912

SOLEIL-L,SEMI FB,GRAY & BLUE,GRAY,TRIM1#

main71440-10580-03iEP7#..CD,XL198601-198612

FULL FB,GRAY,GRAY,TRIM1#

main71440-10580-04iEP7#..CD,XL198601-198612

FULL FB,BLUE,BLUE,TRIM8#

main71440-10590-02iEP71..XL198601-198612

LISSE,FULL FB,MAROON,MAROON,TRIM3#

main71440-10660-02iEP71..XL198410-198601

LISSE,FULL FB,MAROON,MAROON,TRIM3#

main71440-10660-04iEP71..XL198410-198601

LISSE,FULL FB,BLUE,BLUE,TRIM8#

main71440-10670-03iEP71..DX198501-198612

DX-A,SOLEIL,SEMI FB,GRAY,GRAY,TRIM1#

main71440-10670-04iEP71..DX198501-198612

DX-A,SOLEIL,SEMI FB,BLUE,BLUE,TRIM8#

main71440-10680-03iEP7#,NP76..CS,STD198410-198912

VL,GRAY,GRAY,TRIM1#

main71440-10690-03iEP7#..CD,XL198410-198601

FULL FB,GRAY,GRAY,TRIM1#

main71440-10690-04iEP7#..CD,XL198410-198601

FULL FB,BLUE,BLUE,TRIM8#

main71440-10700-02iEP71..SI198410-198612

W/BODY SONIC,FULL FB,RED,RED,TRIM1#

main71440-10700-03iEP71..SI198410-198612

W/BODY SONIC,FULL FB,GRAY,GRAY,TRIM1#

main71440-10710-02iEP71..SI198410-198612

FULL FB,RED,RED,TRIM1#

main71440-10710-03iEP71..SI198410-198612

FULL FB,GRAY,GRAY,TRIM1#

main71440-10720-03iEP71..SE198410-198612

FULL FB,GRAY,GRAY,TRIM1#

main71440-10720-04iEP71..SE198410-198612

FULL FB,BLUE,BLUE,TRIM8#

main71440-10730-03iEP7#,NP7#..CD,DX198410-198912

SEMI FB,GRAY,GRAY,TRIM1#

main71440-10730-04iEP7#..CD,DX198410-198612

SEMI FB,BLUE,BLUE,TRIM8#

main71440-10730-06iEP71,NP70..DX198612-198912

SEMI FB,BROWN,BROWN,TRIM4#

main71440-10740-02iEP71..RI198410-198612

FULL FB,RED,RED,TRIM1#

main71440-10740-03iEP71..RI198410-198912

FULL FB,GRAY,GRAY,TRIM1#

main71440-10750-02iEP71..RI198410-198612

W/BODY SONIC,FULL FB,RED,RED,TRIM1#

main71440-10750-03iEP71..RI198410-198612

W/BODY SONIC,FULL FB,GRAY,GRAY,TRIM1#

main71440-10810-03iEP71..TBO198601-198712

FULL FB,GRAY,GRAY,TRIM1#

main71440-10811-03iEP71..TBO198712-198912

FULL FB,GRAY,GRAY,TRIM1#

main71440-10820-03iEP71..TBO198601-198712

W/BODY SONIC,FULL FB,GRAY,GRAY,TRIM1#

main71440-10821-03iEP71..TBO198712-198912

W/BODY SONIC,FULL FB,GRAY,GRAY,TRIM1#

main71440-10840-03iEP71,NP70..DX198612-198912

SOLEIL,SEMI FB,GRAY,GRAY,TRIM1#

main71440-10850-03iEP7#,NP7#..CD,XL198612-198912

FULL FB,GRAY,GRAY,TRIM1#

main71440-10850-06iEP71,NP70..XL198612-198912

FULL FB,BROWN,BROWN,TRIM4#

main71440-10860-03iEP71..XL198612-198912

LISSE,FULL FB,GRAY,GRAY,TRIM1#

main71440-10860-06iEP71..XL198612-198912

LISSE,FULL FB,BROWN,BROWN,TRIM4#

main71440-10870-03iEP71..SE198612-198912

FULL FB,GRAY,GRAY,TRIM1#

main71440-10870-06iEP71..SE198612-198912

FULL FB,BROWN,BROWN,TRIM4#

main71440-10880-03iEP71..SI198612-198912

SEMI FB,GRAY,GRAY,TRIM1#

main71440-1C090-03iEP71..3D..DX198804-198912

SOLEIL,W/CANVAS TOP,GRAY,GRAY,TRIM1#

main71440-1C100-03iEP71..3D..SI198804-198912

W/CANVAS TOP,GRAY,GRAY,TRIM1#

main71440-1C110-03iEP71..3D..SI198804-198912

W/CANVAS TOP & BODY SONIC,GRAY,GRAY,TRIM1#

main71440-1C130-03iEP71..DX198812-198912

SOLEIL-L EXTRA, SEMI FB,GRAY,GRAY,TRIM1#

71505PAD SUB-ASSY, FRONT SEATBACK W/FRAME, RH

main71505-10010iEP7#,NP7#..CD,CS,DX,STD,XL198410-198912

main71505-10020iEP71..SE; EP71..XL198410-198612

LISSE

main71505-10030iEP71..EFI,TBO198410-198912

main71505-10040iEP71,NP70..SE; EP71..XL198612-198912

LISSE

71506PAD SUB-ASSY, FRONT SEATBACK W/FRAME, LH

main71506-10010iEP7#,NP7#..CD,CS,DX,STD,XL198410-198912

main71506-10020iEP71..SE; EP71..XL198410-198612

LISSE

main71506-10030iEP71..EFI,TBO198410-198912

main71506-10040iEP71,NP70..SE; EP71..XL198612-198912

LISSE

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71511-10120iEP7#,NP7#198612-198912

main71511-10180iEP7#..CBR198410-198612

main71511-10200iEP71..EFI,TBO198410-198612

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71511-10120iEP7#,NP7#198612-198912

main71511-10180iEP7#..CBR198410-198612

main71511-10200iEP71..EFI,TBO198410-198612

71812ARING, HOG, SMALL (FOR FRONT SEAT)

main90468-18071iEP7#,NP7#198410-198912

71831DCOVER, FRONT SEAT HINGE, RH

main71831-10010iEP7#,NP7#198410-198912

71832DCOVER, FRONT SEAT HINGE, LH

main71831-10010iEP7#,NP7#198410-198912

9038612016

main90386-12016

9052308001

main90523-08001

19 parts on this diagram · 4 diagrams in section
