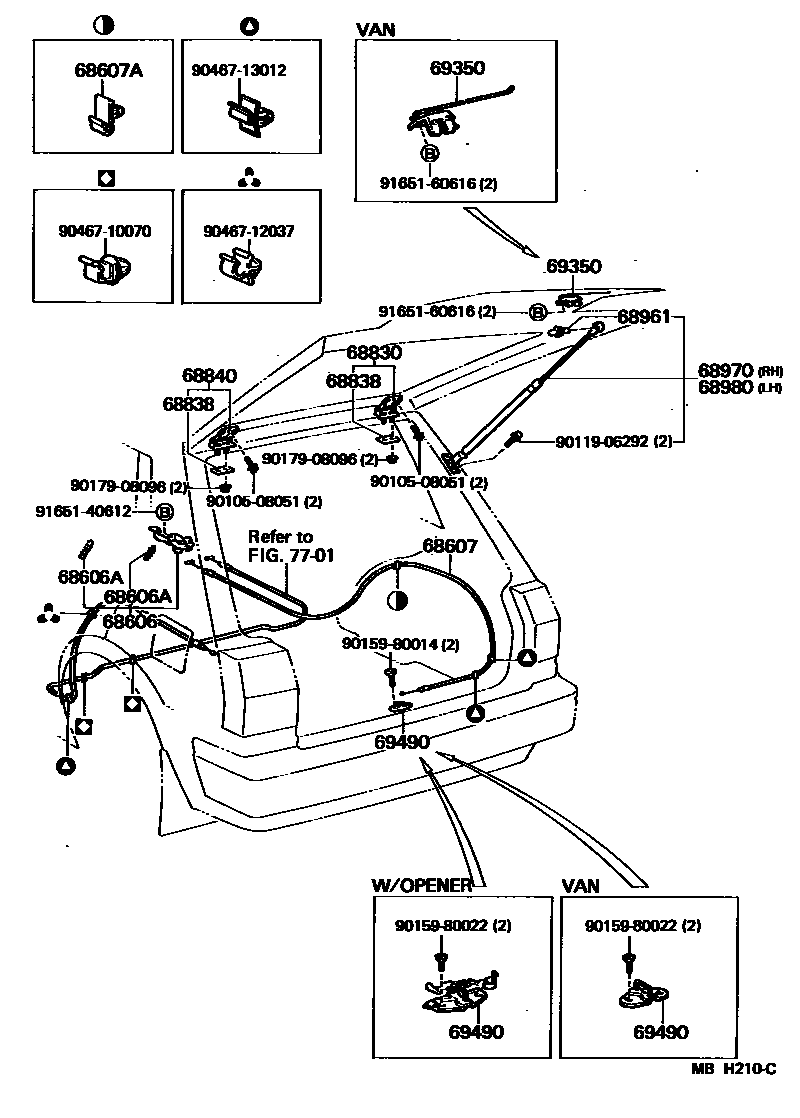

BACK DOOR LOCK & HANDLE

68606LEVER SUB-ASSY, BACK DOOR LOCK OPEN

main64606-10060iEP71..SE,SI,XL198410-198601

main64606-12060iEP71,NP70..SE,SI,TBS,XL198601-198912

68606ASPRING, TENSION(FOR BACK DOOR LOCK OPEN LEVER)

main90506-09034iEP71..SE,SI,XL198410-198601

68607CABLE SUB-ASSY, BACK DOOR LOCK CONTROL

main64607-10060iEP71,NP70..SE,SI,TBS,XL198410-198912

68607ACLAMP, NO.1(FOR BACK DOOR LOCK CONTROL CABLE)

main69749-12010iEP71,NP70..SE,SI,TBS,XL198410-198907

main69749-30020iEP71,NP70..SE,SI,TBS,XL; EP71..DX198907-198912

W/FUEL LID OPENER

68830HINGE ASSY, BACK DOOR, RH

main68801-10020iEP7#,NP7#198410-198808

main68801-10021iEP7#,NP7#198808-198912

68838PAD, BACK DOOR HINGE, NO.1

main68838-10010×2iEP7#,NP7#198410-198808

main68838-10011×2iEP7#,NP7#198808-198912

68840HINGE ASSY, BACK DOOR, LH

main68801-10020iEP7#,NP7#198410-198808

main68801-10021iEP7#,NP7#198808-198912

68961BOLT, BACK DOOR STAY

main68961-10030×2iEP7#,NP7#198410-198912

68970STAY ASSY, BACK DOOR, RH

main68950-19515iEP7#,NP7#198410-198807

main68950-19516iEP7#,NP7#198807-198912

main68950-19635iEP71..TBO198712-198807

W/RR LOWER SPOILER

main68950-19636iEP71..TBO198807-198912

W/RR LOWER SPOILER

68980STAY ASSY, BACK DOOR

main68960-19245iEP7#,NP7#198410-198807

main68960-19246iEP7#,NP7#198807-198912

main68960-19325iEP71..TBO198712-198807

W/RR LOWER SPOILER

main68960-19326iEP71..TBO198807-198912

W/RR LOWER SPOILER

69350LOCK ASSY, BACK DOOR

main69350-10060iEP71,NP70198410-198912

main69350-10080iEP76,NP76198410-198912

69490STRIKER ASSY, BACK DOOR LOCK

main69430-10040iEP71,NP70..DX,RI,STD,TOR198410-198912

main69430-10050iEP71..SE,SI,XL198410-198601

main69430-10051iEP71,NP70..SE,SI,TBS,XL198601-198912

main69430-10080iEP76,NP76198410-198912

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9010508051

main90105-08051

9011906292

main90119-06292

9015980014

main90159-80014

9015980022

main90159-80022

9017908096

main90179-08096

9046710070

main90467-10070

9046712037

main90467-12037

9046713012

main90467-13012

9165140612

main91651-40612

9165160616

main91651-60616

23 parts on this diagram · 1 diagram in section
