INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

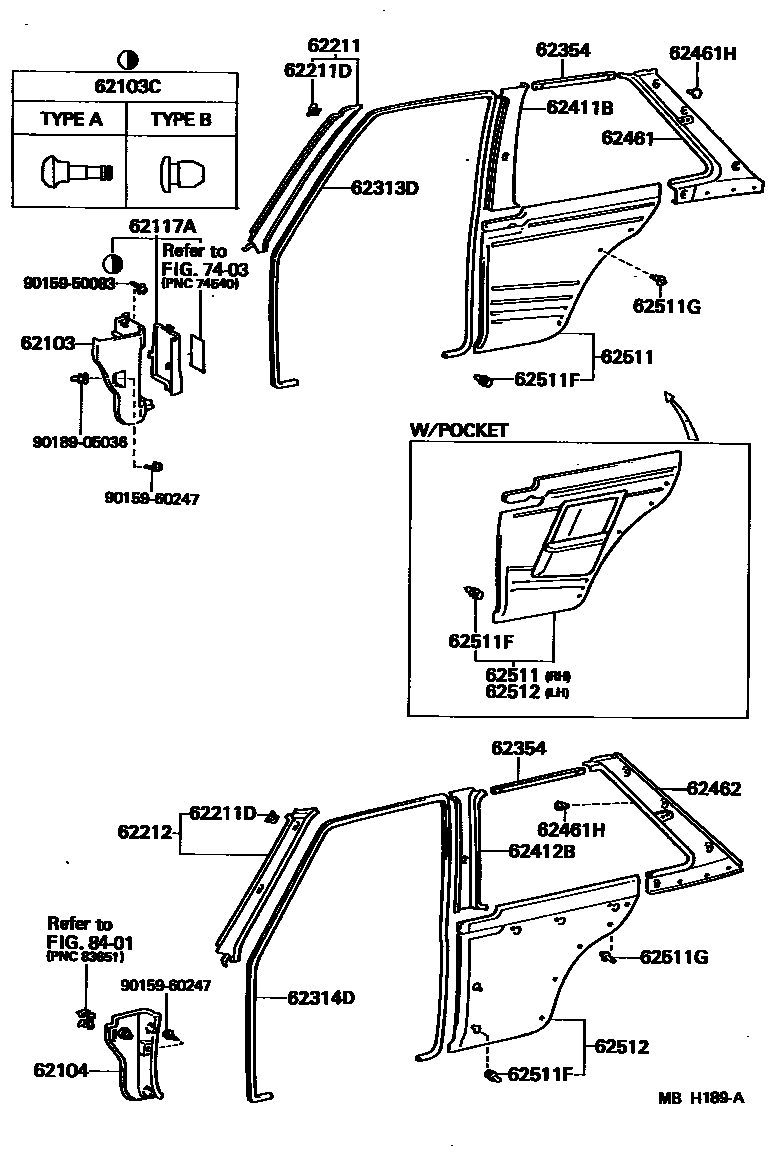

Parts diagram
62103BOARD SUB-ASSY, COWL SIDE TRIM, RH
main62111-10060-02i198410-198612
LISSE,MAROON,MAROON,TRIM3#
main62111-10060-03i198410-198912
GRAY,GRAY,TRIM1#
main62111-10060-04i198410-198612
BLUE,BLUE,TRIM8#
main62111-10060-06i198612-198912
BROWN,BROWN,TRIM4#
62103CCLIP, COWL SIDE TRIM BOARD SET
main90467-05015-03i198410-198912
TYPE A,GRAY,GRAY,TRIM1#
main90467-05015-14i198410-198612
TYPE A,BLUE,BLUE,TRIM8#
main90467-05015-22i198410-198612
TYPE A,LISSE,MAROON,MAROON,TRIM3#
main90467-05015-26i198612-198912
BROWN,BROWN,TRIM4#
main90467-08031-03i198410-198912
TYPE B,GRAY,GRAY,TRIM1#
main90467-08031-14i198410-198612
TYPE B,BLUE,BLUE,TRIM8#
main90467-08031-22i198410-198612
TYPE B,LISSE,MAROON,MAROON,TRIM3#
main90467-08031-26i198612-198912
BROWN,BROWN,TRIM4#
62104BOARD SUB-ASSY, COWL SIDE TRIM, LH
main62112-10060-02i198601-198612
SOLEIL-L,MAROON,MAROON,TRIM3#
main62112-10060-03i198410-198912
GRAY,GRAY,TRIM1#
main62112-10060-04i198410-198612
BLUE,BLUE,TRIM8#
main62112-10060-06i198612-198912
BROWN,BROWN,TRIM4#
62117ACOVER, COWL SIDE TRIM SERVICE HOLE
main55545-10020-02i198601-198612
SOLEIL-L,MAROON,MAROON,TRIM3#
main55545-10020-03i198410-198612
GRAY,GRAY,TRIM1#
main55545-10020-04i198410-198612
BLUE,BLUE,TRIM8#
main55545-10021-03i198612-198912
GRAY,GRAY,TRIM1#
main55545-10021-06i198612-198912
BROWN,BROWN,TRIM4#
62211GARNISH, FRONT PILLAR, RH
main62211-10060-02i198410-198612
LISSE,MAROON,MAROON,TRIM3#
main62211-10060-03i198410-198912
GRAY,GRAY,TRIM1#
main62211-10060-04i198410-198612
BLUE,BLUE,TRIM8#
main62211-10060-06i198612-198912
BROWN,BROWN,TRIM4#
62211DCLIP(FOR FRONT BODY PILLAR GARNISH)
main90468-05011×4i198410-198912
62212GARNISH, FRONT PILLAR, LH
main62212-10060-02i198601-198612
SOLEIL-L,MAROON,MAROON,TRIM3#
main62212-10060-03i198410-198912
GRAY,GRAY,TRIM1#
main62212-10060-04i198410-198612
BLUE,BLUE,TRIM8#
main62212-10060-06i198612-198912
BROWN,BROWN,TRIM4#
62313DTRIM, FRONT DOOR OPENING, RH
main62313-10060-02i198410-198612
LISSE,MAROON,MAROON,TRIM3#
main62313-10060-03i198410-198912
GRAY,GRAY,TRIM1#
main62313-10060-04i198410-198612
BLUE,BLUE,TRIM8#
main62313-10060-06i198612-198912
BROWN,BROWN,TRIM4#
main62313-10070-02i198601-198612
SOLEIL-L,MAROON,MAROON,TRIM3#
main62313-10070-03i198410-198912
GRAY,GRAY,TRIM1#
main62313-10070-04i198410-198612
BLUE,BLUE,TRIM8#
main62313-10070-06i198612-198912
BROWN,BROWN,TRIM4#
62314DTRIM, FRONT DOOR OPENING, LH
main62313-10060-02i198410-198612
LISSE,MAROON,MAROON,TRIM3#
main62313-10060-03i198410-198912
GRAY,GRAY,TRIM1#
main62313-10060-04i198410-198612
BLUE,BLUE,TRIM8#
main62313-10060-06i198612-198912
BROWN,BROWN,TRIM4#
main62313-10070-02i198410-198612
LISSE,MAROON,MAROON,TRIM3#
main62313-10070-03i198410-198912
GRAY,GRAY,TRIM1#
main62313-10070-04i198410-198612
BLUE,BLUE,TRIM8#
main62313-10070-06i198612-198912
BROWN,BROWN,TRIM4#
62354TRIM, QUARTER WINDOW, INSIDE
main62305-10020-08×2i198410-198912
IVORY,IVORY
62411BGARNISH, CENTER PILLAR, UPPER RH
main62411-10050-02i198410-198612
LISSE,MAROON,MAROON,TRIM3#
main62411-10050-03i198410-198912
GRAY,GRAY,TRIM1#
main62411-10050-04i198410-198612
BLUE,BLUE,TRIM8#
main62411-10050-06i198612-198912
BROWN,BROWN,TRIM4#
main62411-10070-08i198410-198612
W/SUN ROOF,IVORY,IVORY
main62411-10070-18i198612-198912
W/SUN ROOF,IVORY,IVORY
62412BGARNISH, CENTER PILLAR, UPPER LH
main62412-10050-02i198410-198612
LISSE,MAROON,MAROON,TRIM3#
main62412-10050-03i198410-198912
GRAY,GRAY,TRIM1#
main62412-10050-04i198410-198612
BLUE,BLUE,TRIM8#
main62412-10050-06i198612-198912
BROWN,BROWN,TRIM4#
main62412-10070-08i198410-198612
W/SUN ROOF,IVORY,IVORY
main62412-10070-18i198612-198912
W/SUN ROOF,IVORY,IVORY
62461GARNISH, ROOF SIDE TRIM, RH
main62471-10090-02i198410-198612
LISSE,MAROON,MAROON,TRIM3#
main62471-10090-03i198410-198912
GRAY,GRAY,TRIM1#
main62471-10090-04i198410-198612
BLUE,BLUE,TRIM8#
main62471-10090-06i198612-198912
BROWN,BROWN,TRIM4#
main62471-10130-08i198410-198612
IVORY,IVORY
main62471-10130-18i198612-198912
IVORY,IVORY
62461HCLIP (FOR ROOF SIDE INNER GARNISH)
main90467-07053-02×8i198410-198612
LISSE,MAROON,MAROON,TRIM3#
main90467-07053-03×8i198410-198912
GRAY,GRAY,TRIM1#
main90467-07053-04×8i198410-198612
BLUE,BLUE,TRIM8#
main90467-07053-06i198612-198912
BROWN,BROWN,TRIM4#
main90467-07053-08×6i198410-198612
IVORY,IVORY
main90467-07053-18i198612-198912
IVORY,IVORY
62462GARNISH, ROOF SIDE TRIM, LH
main62472-10090-02i198410-198612
LISSE,MAROON,MAROON,TRIM3#
main62472-10090-03i198410-198912
GRAY,GRAY,TRIM1#
main62472-10090-04i198410-198612
BLUE,BLUE,TRIM8#
main62472-10090-06i198612-198912
BROWN,BROWN,TRIM4#
main62472-10130-08i198410-198612
IVORY,IVORY
main62472-10130-18i198612-198912
IVORY,IVORY
62511BOARD, QUARTER INSIDE TRIM, RH
main62510-10330-03i198410-198612
GRAY,GRAY,TRIM1#
main62510-10330-04i198410-198612
BLUE,BLUE,TRIM8#
main62510-10330-08i198601-198612
SOLEIL-L,IVORY,IVORY,TRIM3#
main62510-10340-03i198410-198612
GRAY,GRAY,TRIM1#
main62510-10340-04i198410-198612
BLUE,BLUE,TRIM8#
main62510-10350-02i198410-198601
LISSE,MAROON,MAROON,TRIM3#
main62510-10350-04i198410-198601
LISSE,BLUE,BLUE,TRIM8#
main62510-10350-12i198601-198612
LISSE,MAROON,MAROON,TRIM3#
main62510-10360-02i198410-198612
RED,RED,TRIM1#
main62510-10360-03i198410-198612
GRAY,GRAY,TRIM1#
main62510-10480-03i198601-198912
GRAY,GRAY,TRIM1#
main62510-10490-03i198601-198712
GRAY,GRAY,TRIM1#
main62510-10491-03i198712-198912
GRAY,GRAY,TRIM1#
main62510-10510-03i198612-198912
GRAY,GRAY,TRIM1#
main62510-10510-06i198612-198912
BROWN,BROWN,TRIM4#
main62510-10520-03i198612-198912
GRAY,GRAY,TRIM1#
main62510-10520-06i198612-198912
BROWN,BROWN,TRIM4#
main62510-10530-03i198612-198912
LISSE,GRAY,GRAY,TRIM1#
main62510-10530-06i198612-198912
LISSE,BROWN,BROWN,TRIM4#
main62510-10540-03i198612-198912
GRAY,GRAY,TRIM1#
main62510-10690-03i198612-198712
SOLEIL-L,GRAY,GRAY,TRIM1#
main62510-10690-13i198712-198912
SOLEIL-L,GRAY & RED,LIGHT GRAY,TRIM1#
main62510-10690-23i198712-198912
SOLEIL-L,GRAY & BLUE,LIGHT GRAY,TRIM1#
main62510-10710-03i198708-198709
TURBO S LIMITED,GRAY,GRAY,TRIM1#
main62510-10720-03i198804-198912
W/CANVAS TOP,GRAY,GRAY,TRIM1#
main62510-10730-03i198804-198912
W/CANVAS TOP,GRAY,GRAY,TRIM1#
main62510-10760-03i198812-198912
SOLEIL-L EXTRA,GRAY,GRAY,TRIM1#
main62510-10770-03i198901-198903
TURBO S LIMITED,GRAY,GRAY,TRIM1#
main62510-11040-03i198410-198912
GRAY,GRAY,TRIM1#
main62510-11040-04i198410-198612
BLUE,BLUE,TRIM8#
main62510-11050-03i198410-198912
GRAY,GRAY,TRIM1#
main62510-11050-04i198410-198612
BLUE,BLUE,TRIM8#
62511FRETAINER (FOR QUARTER INSIDE TRIM BOARD)
main67771-12020×8i198506-198912
main67771-16080×8i198612-198912
main67771-22010×8i198410-198506
62511GCLIP (FOR QUARTER INSIDE TRIM BOARD)
main90467-07043-03×8i198612-198912
GRAY,SHADOW GRAY,TRIM1#
main90467-07043-06×8i198612-198912
BROWN,SEPIA BROWN,TRIM4#
main90467-07043-08×8i198410-198612
LISSE,IVORY,IVORY,TRIM3#
main90467-07043-14×8i198410-198612
BLUE,BLUE,TRIM8#
main90467-07043-26i198612-198912
LISSE,LIGHT BROWN,LIGHT BROWN,TRIM4#
main90467-07043-33×8i198612-198912
LISSE,SOLEIL-L,LIGHT GRAY,LIGHT GRAY,TRIM1#
62512BOARD, QUARTER INSIDE TRIM, LH
main62520-10320-03i198410-198612
GRAY,GRAY,TRIM1#
main62520-10320-04i198410-198612
BLUE,BLUE,TRIM8#
main62520-10320-08i198601-198612
SOLEIL-L,IVORY,IVORY,TRIM3#
main62520-10330-03i198410-198612
GRAY,GRAY,TRIM1#
main62520-10330-04i198410-198612
BLUE,BLUE,TRIM8#
main62520-10340-02i198410-198601
LISSE,MAROON,MAROON,TRIM3#
main62520-10340-04i198410-198601
LISSE,BLUE,BLUE,TRIM8#
main62520-10340-12i198601-198612
LISSE,MAROON,MAROON,TRIM3#
main62520-10350-02i198410-198612
RED,RED,TRIM1#
main62520-10350-03i198410-198612
GRAY,GRAY,TRIM1#
main62520-10470-03i198601-198912
GRAY,GRAY,TRIM1#
main62520-10480-03i198601-198712
GRAY,GRAY,TRIM1#
main62520-10481-03i198712-198912
GRAY,GRAY,TRIM1#
main62520-10500-03i198612-198912
GRAY,GRAY,TRIM1#
main62520-10500-06i198612-198912
BROWN,BROWN,TRIM4#
main62520-10510-03i198612-198912
GRAY,GRAY,TRIM1#
main62520-10510-06i198612-198912
BROWN,BROWN,TRIM4#
main62520-10520-03i198612-198912
LISSE,GRAY,GRAY,TRIM1#
main62520-10520-06i198612-198912
LISSE,BROWN,BROWN,TRIM4#
main62520-10530-03i198612-198912
GRAY,GRAY,TRIM1#
main62520-10680-03i198612-198712
SOLEIL-L,GRAY,GRAY,TRIM1#
main62520-10680-13i198712-198912
SOLEIL-L,GRAY & RED,LIGHT GRAY,TRIM1#
main62520-10680-23i198712-198912
SOLEIL-L,GRAY & BLUE,LIGHT GRAY,TRIM1#
main62520-10700-03i198708-198709
TURBO S LIMITED,GRAY,GRAY,TRIM1#
main62520-10710-03i198804-198912
W/CANVAS TOP,GRAY,GRAY,TRIM1#
main62520-10720-03i198804-198912
W/CANVAS TOP,GRAY,GRAY,TRIM1#
main62520-10750-03i198812-198912
SOLEIL-L EXTRA,GRAY,GRAY,TRIM1#
main62520-10760-03i198901-198903
TURBO S LIMITED,GRAY,GRAY,TRIM1#
main62520-11040-03i198410-198912
GRAY,GRAY,TRIM1#
main62520-11040-04i198410-198612
BLUE,BLUE,TRIM8#
main62520-11060-03i198410-198912
GRAY,GRAY,TRIM1#
main62520-11060-04i198410-198612
BLUE,BLUE,TRIM8#
7403CAUTION PLATE (EXTERIOR & INTERIOR)
→ Go to FIG 74-03
8401SWITCH & RELAY & COMPUTER
→ Go to FIG 84-01
9015950083
main90159-50083
9015960247
main90159-60247
9018905036
main90189-05036

24 parts on this diagram · 2 diagrams in section
