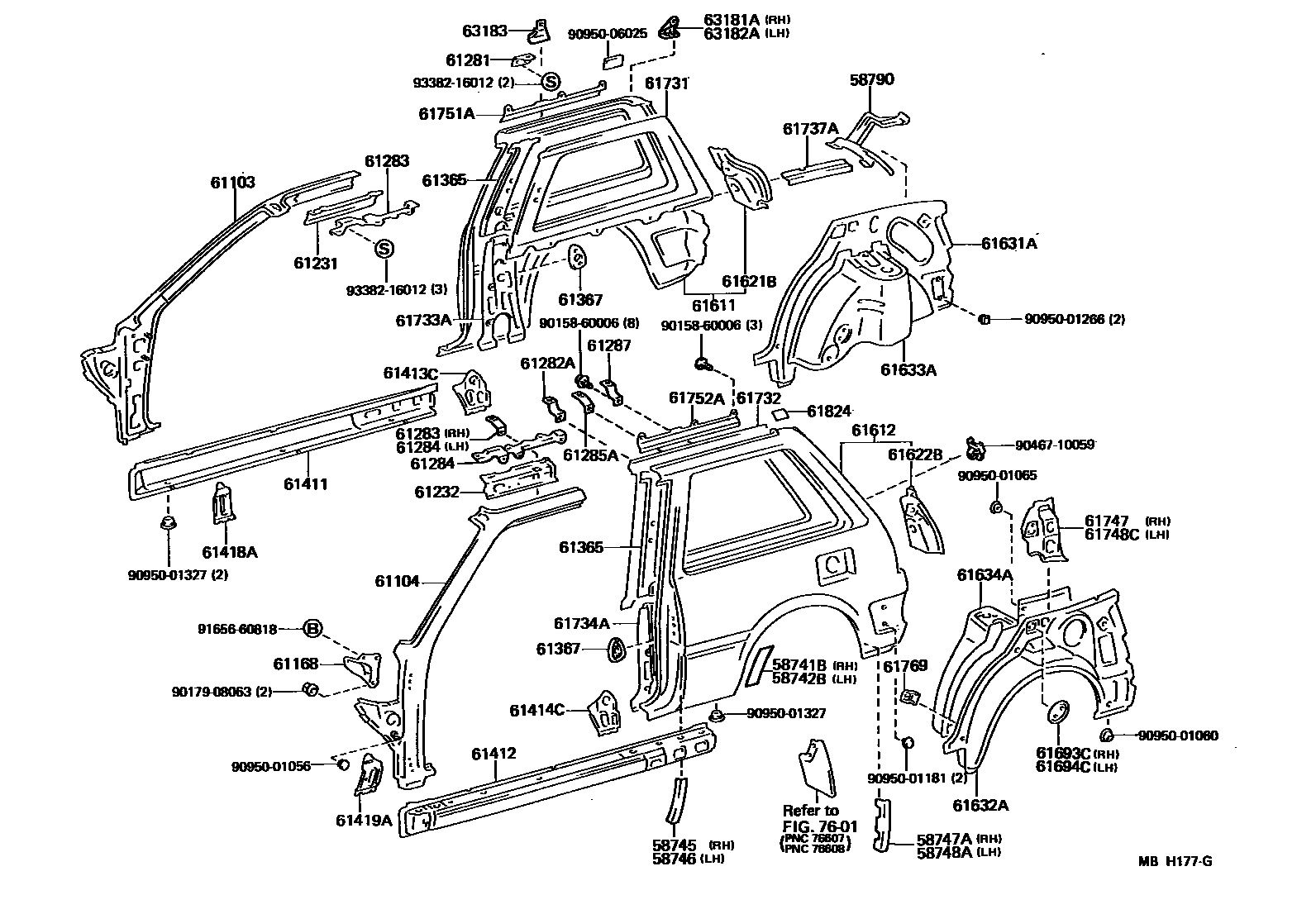

SIDE MEMBER

0001 1 0002 1 0003 1

58741BPROTECTOR, QUARTER PANEL, RH

main58741-10010iEP71,NP70..5D198410-198912

main58741-10020iEP7#,NP7#..2D,3D198809-198912

main58741-12060iEP7#,NP7#..2D,3D198801-198809

58742BPROTECTOR, QUARTER PANEL, LH

main58741-12060iEP7#,NP7#..2D,3D198801-198809

main58742-10010iEP71,NP70..5D198410-198912

main58742-10020iEP7#,NP7#..2D,3D198809-198912

58745PROTECTOR, QUARTER PANEL, FRONT RH

main58745-10010iEP7#,NP7#..2D,3D198809-198912

58746PROTECTOR, QUARTER PANEL, FRONT LH

main58746-10010iEP7#,NP7#..2D,3D198809-198912

58747APROTECTOR, QUARTER PANEL, REAR RH

main58747-10010iEP7#,NP7#198809-198912

58748APROTECTOR, QUARTER PANEL, REAR LH

main58748-10010iEP7#,NP7#198809-198912

58790CARRIER ASSY, JACK

main58790-10020iEP7#198410-198601

main58790-10030iEP7#,NP7#198601-198912

61103PILLAR SUB-ASSY, FRONT BODY, RH

main61021-10060iEP71,NP70..5D..(SE,SI,TBS,XL)198410-198912

W/*RC DOOR MIRROR

main61021-10070iEP71,NP70..5D198410-198912

main61021-10090iEP71..3D..(RI,SI,TBS,XL)198410-198912

W/*RC DOOR MIRROR

main61021-10100iEP7#,NP7#..2D,3D198410-198912

61104PILLAR SUB-ASSY, FRONT BODY, LH

main61022-10110iEP71,NP70..5D..(DX,XL)198410-198912

main61022-10130iEP71..3D..(RI,SI,TBS,XL)198410-198912

main61022-10150iEP7#,NP7#..(2D,3D)..(CD,CS,DX,RI,STD,TOR,XL)198410-198912

main61022-10160iEP7#,NP7#..(2D,3D)..(CD,CS,DX,RI,SI,TBS,TOR,XL)198410-198912

W/FENDER MIRROR

main61022-10180iEP71..5D198410-198912

W/RR WIPER

main61022-10200iEP71,NP70..5D..(SE,SI,TBS,XL)198410-198912

W/*RC DOOR MIRROR

61168BRACKET, INSTRUMENT PANEL TO COWL SIDE, LH

main61166-10030iEP7#,NP7#198410-198912

61231RAIL, ROOF SIDE, INNER RH

main61231-10090iEP7#,NP7#..2D,3D198410-198912

main61231-10110iEP71,NP70..5D198410-198912

61232RAIL, ROOF SIDE, INNER LH

main61232-10080iEP7#,NP7#..2D,3D198410-198912

main61232-10100iEP71,NP70..5D198410-198912

61281BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.1

main61281-10010×2iEP71,NP70..RI,SE,SI,TBS,TOR198410-198912

61282ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.2

main61282-10010×2iEP71..3D..(DX,SI)198804-198912

W/CANVAS TOP

61283BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 RH

main61283-10010iEP71,NP70..RI,SE,SI,TBS,TOR198410-198912

main61283-10020iEP71..3D..(DX,SI)198804-198912

W/CANVAS TOP

61284BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 LH

main61284-10010iEP71,NP70..RI,SE,SI,TBS,TOR198410-198912

main61284-10020iEP71..3D..(DX,SI)198804-198912

W/CANVAS TOP

61285ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.4

main61285-10010×2iEP71..3D..(DX,SI)198804-198912

W/CANVAS TOP

61287BRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.6

main61287-10010×2iEP71..3D..(DX,SI)198804-198912

W/CANVAS TOP

61365REINFORCEMENT, BELT ANCHOR TO CENTER PILLAR

main61347-10040iEP71..3D..DX198612-198912

DX-A,SOLEIL,SOLEIL-L,RH

main61347-10050iEP71,NP70..3D..(DX,SI,TBS,XL)198410-198912

RH

main61348-10040iEP7#,NP76..CD,CS,RI,STD,TOR198410-198912

LH

main61348-10050iEP71,NP70..3D..(DX,SI,TBS,XL)198410-198912

LH

61367REINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LOWER

main61367-14010×2iEP7#,NP7#..2D,3D198410-198912

61411PANEL, ROCKER, OUTER RH

main61411-10120iEP7#,NP7#..(2D,3D)..(CD,CS,DX,RI,SI,STD,TOR,XL)198410-198912

main61411-10130iEP71,NP70..5D198410-198912

main61411-10140iEP71..3D..(EFI,TBO)198410-198912

W/WHEEL MOULDING

61412PANEL, ROCKER, OUTER LH

main61412-10120iEP7#,NP7#..(2D,3D)..(CD,CS,DX,RI,SI,STD,TOR,XL)198410-198912

main61412-10130iEP71,NP70..5D198410-198912

main61412-10140iEP71..3D..(EFI,TBO)198410-198912

W/WHEEL MOULDING

61413CREINFORCEMENT, ROCKER PANEL, NO.2 RH

main61413-10010iEP7#,NP7#198410-198912

61414CREINFORCEMENT, ROCKER PANEL, NO.2 LH

main61414-10010iEP7#,NP7#198410-198912

61418AREINFORCEMENT, ROCKER PANEL, RH

main61418-10020iEP7#,NP7#198410-198912

61419AREINFORCEMENT, ROCKER PANEL, LH

main61419-10010iEP7#,NP7#198410-198912

61611PANEL, QUARTER, RH

main61601-10890iEP71..5D198410-198505

main61601-1C020iEP71..5D..(CBR,EFI)198505-198612

main61601-1C060iEP7#..2D,3D198410-198505

main61601-1C130iEP71..3D..EFI198410-198612

W/WHEEL MOULDING

main61601-1C150iEP7#..2D,3D198505-198601

main61601-1C180iEP71..TOR198601-198912

main61601-1C190iEP71..3D..TBO198601-198612

W/WHEEL MOULDING

main61601-1C191iEP71..3D..TBS; EP71..TOR198612-198912

W/SPOILER & LARGE BUMPER

main61601-1C200iEP71..5D..TBO198601-198912

main61601-1C210iEP71,NP70..5D..(CBR,DSL,EFI)198612-198807

main61601-1C220iEP7#,NP7#..(2D,3D)..(CBR,DSL,EFI)198612-198912

main61601-1C250iEP71,NP70..5D..(CBR,DSL,EFI)198807-198912

61612PANEL, QUARTER, LH

main61602-10860iEP71..5D198410-198505

main61602-10880iEP71..5D..DX198601-198612

main61602-1C030iEP7#..2D,3D198410-198505

main61602-1C100iEP71..RI198601-198612

W/WHEEL MOULDING

main61602-1C101iEP71..RI198612-198912

W/SPOILER

main61602-1C120iEP71..3D198505-198512

main61602-1C150iEP71..TOR198601-198912

main61602-1C160iEP71..TOR198601-198612

W/WHEEL MOULDING

main61602-1C161iEP71..TOR198612-198912

W/SPOILER & LARGE BUMPER

main61602-1C170iEP71..3D..TBS198601-198612

W/WHEEL MOULDING

main61602-1C171iEP71..3D..TBS198612-198912

main61602-1C180iEP71..5D..TBO198601-198912

main61602-1C190iEP71..3D..(SI,XL)198512-198612

main61602-1C200iEP71..5D..(SE,SI,XL)198601-198612

main61602-1C210iEP71..3D..SI198512-198612

W/WHEEL MOULDING

main61602-1C220iEP71,NP70..5D..DX198612-198807

main61602-1C230iEP71..5D..DX198812-198912

W/FUEL LID OPENER

main61602-1C260iEP7#,NP7#..(2D,3D)..(CD,CS,DX,RI,STD)198612-198912

main61602-1C270iEP71,NP70..3D..(SI,XL)198612-198912

main61602-1C310iEP71,NP70..5D..DX198807-198912

main61602-1C320iEP71,NP70..5D..(SE,SI,XL)198807-198912

61621BTROUGH, BACK DOOR OPENING, FRONT RH

main61621-10020iEP7#,NP7#198410-198912

61622BTROUGH, BACK DOOR OPENING, FRONT LH

main61622-10020iEP7#,NP7#198410-198912

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-10040iEP7#,NP7#198410-198912

61632APANEL, QUARTER WHEEL HOUSE, OUTER LH

main61632-10040iEP7#,NP7#198410-198912

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61607-10020iEP76,NP76198803-198912

main61607-10021iEP7#,NP7#198803-198912

61634APANEL, QUARTER WHEEL HOUSE, INNER LH

main61608-10020iEP7#,NP7#198410-198912

61693CRETAINER, REAR SEATBACK SET, RH

main61693-10030iEP71,NP70198410-198912

61694CRETAINER, REAR SEATBACK SET, LH

main61693-10030iEP71,NP70198410-198912

61731PANEL, ROOF SIDE, INNER UPPER RH

main61731-10300iEP76,NP76198410-198912

main61731-10310iEP71..STD198410-198612

main61731-10923iEP71..3D..4F..DX; EP71..3D..DX; EP71..RI,TOR198410-198612

DX-A; DX-A,W/PARTIAL LEAN SYSTEM

main61731-10928iEP71,NP70..3D..(SI,TBS,XL)198410-198912

main61731-10938iEP71,NP70..3D..DX198410-198912

main61731-10948iEP71,NP70..5D..DX198410-198912

main61731-10949iEP71,NP70..5D..(SE,SI,TBS,XL)198410-198912

61732PANEL, ROOF SIDE, INNER UPPER LH

main61732-10300iEP76,NP76198410-198912

main61732-10310iEP71..STD198410-198612

main61732-10923iEP71,NP70..5D..DX198410-198912

main61732-10924iEP71,NP70..5D..(SE,SI,TBS,XL)198410-198912

main61732-10926iEP71..3D..4F..DX; EP71..3D..DX; EP71..RI,TOR198410-198612

DX-A; DX-A,W/PARTIAL LEAN SYSTEM

main61732-10931iEP71,NP70..3D..(SI,TBS,XL)198410-198912

main61732-10941iEP71,NP70..3D..DX198410-198912

61733APANEL, ROOF SIDE, INNER FRONT RH

main61733-10030iEP7#,NP7#..2D,3D198410-198912

61734APANEL, ROOF SIDE, INNER FRONT LH

main61734-10030iEP7#,NP7#..2D,3D198410-198912

61737APLATE, ROOF SIDE INNER RAIN PROOF, RH

main61737-10040iEP7#,NP7#..2D,3D198410-198912

61747BRACE, ROOF SIDE INNER TO WHEEL HOUSE, RH

main61747-10020iEP7#,NP7#..2D,3D198410-198912

main61747-10030iEP71,NP70..5D198410-198912

61748CBRACE, ROOF SIDE INNER TO WHEEL HOUSE, LH

main61748-10020iEP7#,NP7#..2D,3D198410-198912

main61748-10030iEP71,NP70..5D198410-198912

61751ARETAINER, QUARTER TRIM, RH

main61751-10080iEP71,NP70..3D..(DX,SI,TBS,XL)198410-198912

61752ARETAINER, QUARTER TRIM, LH

main61752-10060iEP71,NP70..3D..(DX,SI,TBS,XL)198410-198912

61769RETAINER, QUARTER TRIM, LOWER

main61753-16010×6iEP7#,NP7#..2D,3D198410-198912

61824PLATE, NOISE CONTROL, NO.1

63181ABRACKET, ROOF CONSOLE, RH

main63181-10010iEP71..3D..(DX,SI)198804-198912

W/CANVAS TOP

63182ABRACKET, ROOF CONSOLE, LH

main63182-10010iEP71..3D..(DX,SI)198804-198912

W/CANVAS TOP

63183BRACKET, ROOF CONSOLE, FRONT

main63183-10010×2iEP71..3D..(DX,SI)198804-198912

W/CANVAS TOP

7601MUDGUARD & SPOILER

→ Go to FIG 76-01

9015860006

main90158-60006

9017908063

main90179-08063

9046710059

main90467-10059

9095001056

main90950-01056

9095001060

main90950-01060

9095001065

main90950-01065

9095001181

main90950-01181

9095001266

main90950-01266

9095001327

main90950-01327

9095006025

main90950-06025

9165660818

main91656-60818

9338216012

main93382-16012

63 parts on this diagram · 3 diagrams in section
