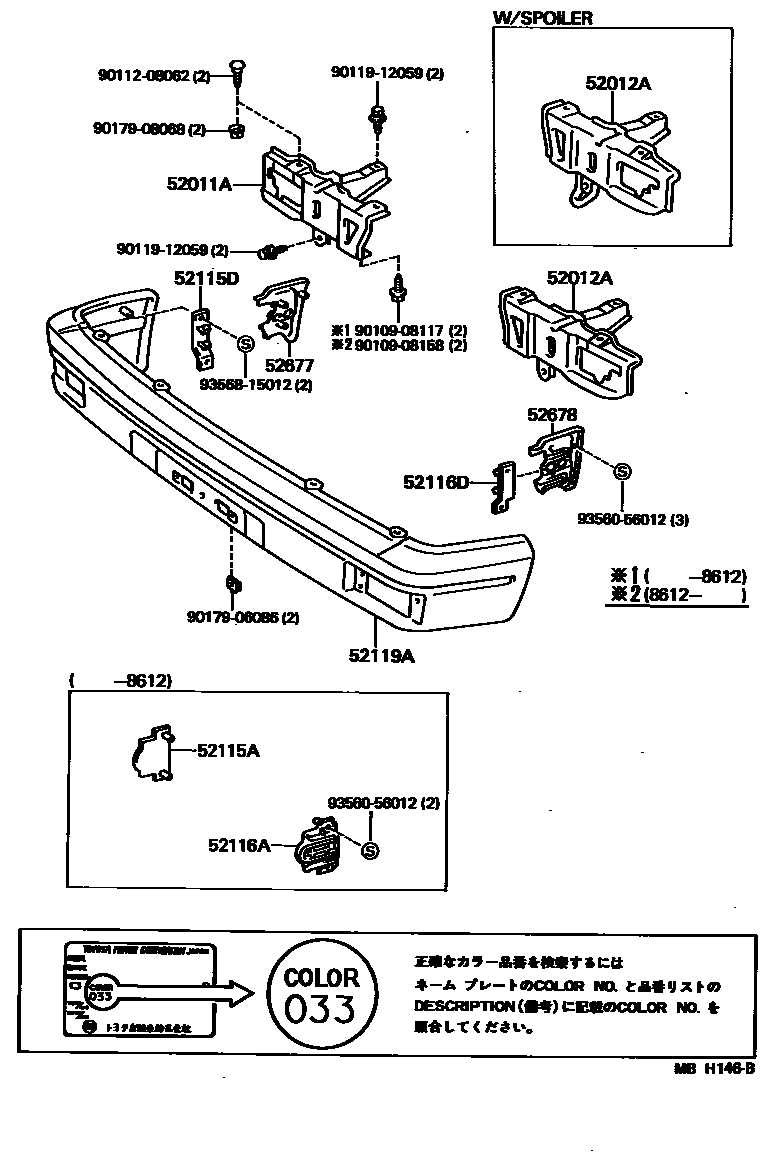

FRONT BUMPER & BUMPER STAY
52011AARM SUB-ASSY, FRONT BUMPER, RH
52012AARM SUB-ASSY, FRONT BUMPER, LH
W/SPOILER
W/SPOILER
52115ASUPPORT, FRONT BUMPER SIDE, RH
52115DSUPPORT, FRONT BUMPER SIDE, NO.2 RH
52116ASUPPORT, FRONT BUMPER SIDE, LH
52116DSUPPORT, FRONT BUMPER SIDE, NO.2 LH
52119ACOVER, FRONT BUMPER
BLACK-M,BLACK,6A5
SILVER-M,SILVER,148
WHITE,WHITE,041
MEDIUM GRAY-M,MEDIUM GRAY METALLIC,27D
SI WHITE LIMITED
BLACK
RED,RED,3E6; SOLEIL-L,RED,RED,3E6
MEDIUM GRAY-M,MEDIUM GRAY METALLIC,157; MEDIUM GRAY-M,MEDIUM GRAY METALLIC,27D ,157; SOLEIL-L,MEDIUM GRAY-M,MEDIUM GRAY METALLIC,157
SOLEIL-L,WHITE,WHITE,041; WHITE,WHITE,041
TURBO S LIMITED,WHITE ,GRAY
MEDIUM GRAY-M,MEDIUM GRAY M,27D
DARK GREEN-M,DARK GREEN M,6K2
WHITE,WHITE,041
TURBO S LIMITED,WHITE,GRAY,041
52677SUPPORT, FRONT BUMPER SIDE, NO.2, RH
52678SUPPORT, FRONT BUMPER SIDE, NO.2, LH
9010908117
main90109-08117
9010908158
main90109-08158
9011208062
main90112-08062
9011912059
main90119-12059
9017906086
main90179-06086
9017908068
main90179-08068
9356056012
main93560-56012
9356815012
main93568-15012
17 parts on this diagram · 2 diagrams in section
