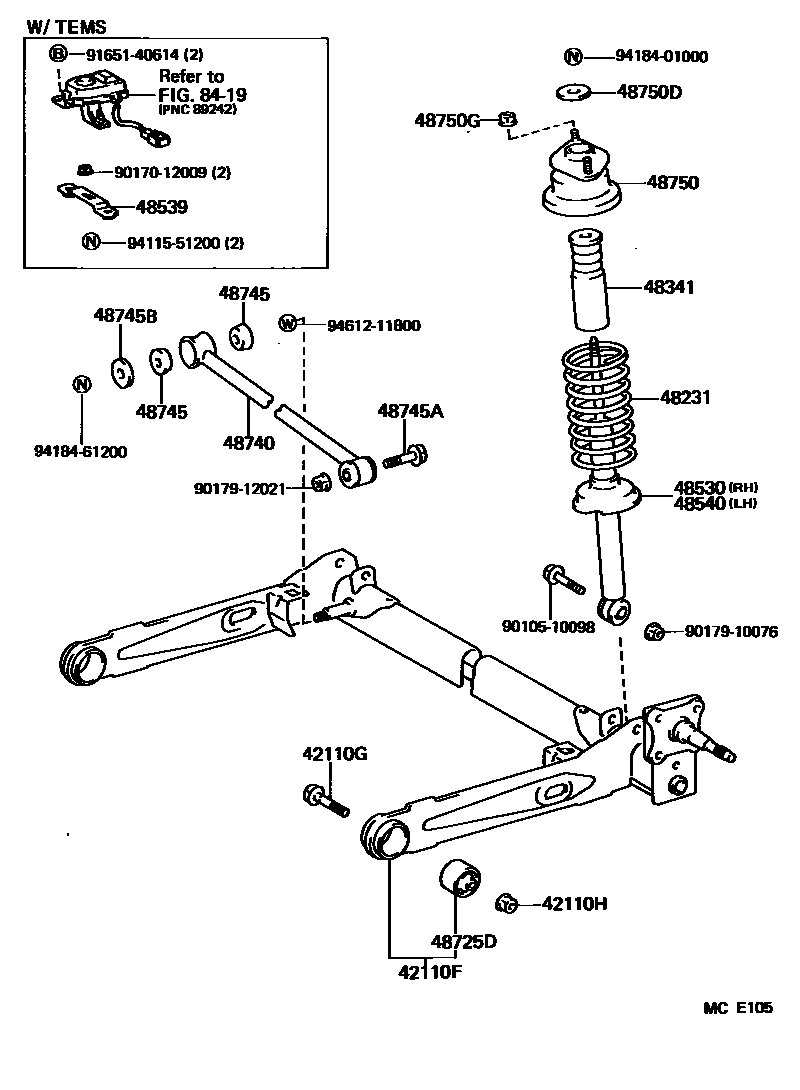

REAR SPRING & SHOCK ABSORBER

42110FBEAM ASSY, REAR AXLE

main42110-10030iEP7#198410-198612

main42110-10050iEP7#,NP7#198612-198912

42110GBOLT (FOR REAR AXLE BEAM)

main90105-12088×2iEP7#,NP7#198410-198912

42110HNUT (FOR REAR AXLE BEAM)

main90179-12041×2iEP7#,NP7#198410-198912

48231SPRING, COIL, REAR

main48231-10140×2iEP7#,NP7#..CBR,DSL198410-198912

main48231-10150×2iEP71..5F..EFI198410-198912

main48231-10190×2iEP71..4FC..EFI198612-198912

main48231-10200×2iEP71..TBO198712-198912

48341BUMPER, REAR SPRING

main48341-10070×2iEP71,NP70198410-198912

main48341-10080×2iEP76,NP76198410-198912

main48341-16040×2iEP71..TBS198612-198912

W/TEMS

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-10010iEP7#,NP7#..CBR,DSL198410-198912

main48530-10030iEP71..5F..EFI198410-198912

main48530-10050iEP71..TBO198601-198712

main48530-10051iEP71..4FC..EFI; EP71..TBO198712-198912

main48530-10060iEP71..TBS198612-198712

W/TEMS

main48530-10061iEP71..TBS198712-198912

W/TEMS

48539BRACKET, ACTUATOR SUPPORT, RR

main48539-16010×2iEP71..TBS198612-198912

W/TEMS

48540ABSORBER ASSY, SHOCK, REAR LH

main48530-10010iEP7#,NP7#..CBR,DSL198410-198912

main48530-10030iEP71..5F..EFI198410-198912

main48530-10050iEP71..TBO198601-198712

main48530-10051iEP71..4FC..EFI; EP71..TBO198712-198912

main48530-10060iEP71..TBS198612-198712

W/TEMS

main48530-10061iEP71..TBS198712-198912

W/TEMS

48725DBUSH, REAR SUSPENSION ARM, NO.3

main48725-10010×2iEP7#198410-198612

main48725-16110×2iEP7#,NP7#198612-198912

48740ROD ASSY, REAR LATERAL CONTROL

main48740-10010iEP7#,NP7#198410-198912

48745BUSH, LATERAL CONTROL ROD

main90385-18010×2iEP7#,NP7#198410-198912

48745ABOLT, HEXAGON(FOR LATERAL CONTROL ROD)

main90105-12037iEP7#,NP7#198410-198912

48745BWASHER, LATERAL CONTROL ROD CUSHION

main90201-12037iEP7#,NP7#198410-198912

48750SUPPORT ASSY, REAR SUSPENSION

main48750-10010×2iEP7#,NP7#198410-198912

main48750-16040×2iEP71..TBS198612-198912

W/TEMS

48750DRETAINER(FOR REAR SUPPORT TO REAR SHOCK ABSORBER)

main90948-02082×2iEP7#,NP7#198410-198912

main90948-02107×2iEP71..TBS198612-198912

W/TEMS

48750GNUT(FOR REAR SUSPENSION SUPPORT)

main90179-08087×4iEP7#,NP7#198410-198912

main90179-08095×4iEP71..TBS198612-198702

W/TEMS

8419ELECTRONIC MODULATED SUSPENSION

→ Go to FIG 84-19

9010510098

main90105-10098

9017012009

main90170-12009

9017910076

main90179-10076

9017912021

main90179-12021

9165140614

main91651-40614

9411551200

main94115-51200

9418401000

main94184-01000

9418461200

main94184-61200

9461211800

main94612-11800

26 parts on this diagram · 1 diagram in section
