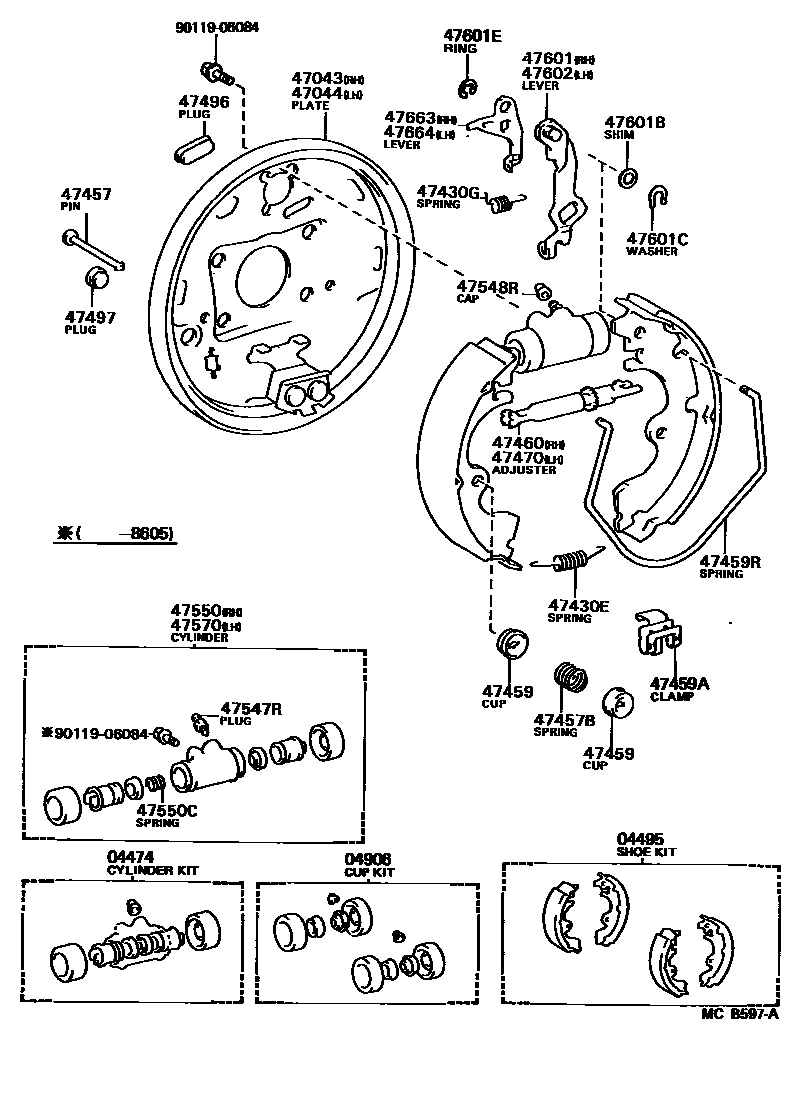

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

04474CYLINDER KIT, REAR WHEEL

main04474-16020×2iEP7#,NP7#198410-198912

04495SHOE KIT, REAR BRAKE

main04495-10070iEP7#,NP7#198410-198707

main04495-10080iEP7#,NP7#198707-198912

main04497-10070iEP7#,NP7#198410-198707

REBUILT

main04497-10080iEP7#,NP7#198707-198912

REBUILT

04906CUP KIT, REAR WHEEL CYLINDER

main04906-16020iEP7#,NP7#198410-198912

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-10040iEP7#,NP7#198410-198912

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-10040iEP7#,NP7#198410-198912

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-18014×2iEP7#,NP7#198410-198912

47430GSPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)

main90507-12020×2iEP7#,NP7#198410-198912

47457PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-30020×4iEP7#,NP7#198410-198912

47457BSPRING, COMPRESSION(FOR REAR SHOE HOLD DOWN SPRING PIN)

main90501-14086×4iEP7#,NP7#198410-198912

47459CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-30030×8iEP7#,NP7#198410-198912

47459ACLAMP(FOR SHOE RETURN SPRING)

main90468-05063×2iEP7#,NP7#198410-198912

47459RSPRING, SHOE RETURN(FOR REAR BRAKE)

main47459-16020×2iEP7#,NP7#198410-198912

47460ADJUSTER ASSY, SHOE, RH(FOR REAR BRAKE)

main47061-10020iEP7#,NP7#198811-198912

main47061-16020iEP7#,NP7#198410-198811

47470ADJUSTER ASSY, SHOE, LH(FOR REAR BRAKE)

main47062-10020iEP7#,NP7#198811-198912

main47062-16020iEP7#,NP7#198410-198811

47496PLUG, HOLE(FOR REAR BRAKE)

main47491-20011×2iEP7#,NP7#198410-198912

47497PLUG, HOLE NO.2(FOR REAR BRAKE)

main47492-32010×2iEP7#,NP7#198410-198912

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-20010×2iEP7#,NP7#198410-198912

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010×2iEP7#,NP7#198410-198912

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-16030iEP7#,NP7#198605-198912

main47550-19155iEP7#198410-198605

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main90501-07006×2iEP7#,NP7#198410-198912

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47570-16010iEP7#,NP7#198605-198912

main47570-19035iEP7#198410-198605

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47601-10010iEP7#,NP7#198410-198912

47601BSHIM, REAR PARKING BRAKE SHOE LEVER

main90564-08150×2iEP7#,NP7#198410-198912

main90564-08151×2iEP7#,NP7#198410-198912

main90564-08152×2iEP7#,NP7#198410-198912

main90564-08172×2iEP7#,NP7#198410-198912

main90564-08173×2iEP7#,NP7#198410-198912

main90564-08174×2iEP7#,NP7#198410-198912

47601CWASHER, C(FOR REAR BRAKE)

main90213-06013×2iEP7#,NP7#198410-198912

47601ERING, E(FOR REAR BRAKE)

main96160-00600×2iEP7#,NP7#198410-198912

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47602-10010iEP7#,NP7#198410-198912

47663LEVER, AUTOMATIC ADJUST, RH(FOR REAR BRAKE)

main47643-10020iEP7#,NP7#198410-198912

47664LEVER, AUTOMATIC ADJUST, LH(FOR REAR BRAKE)

main47644-10020iEP7#,NP7#198410-198912

9011906084

main90119-06084

29 parts on this diagram · 1 diagram in section
