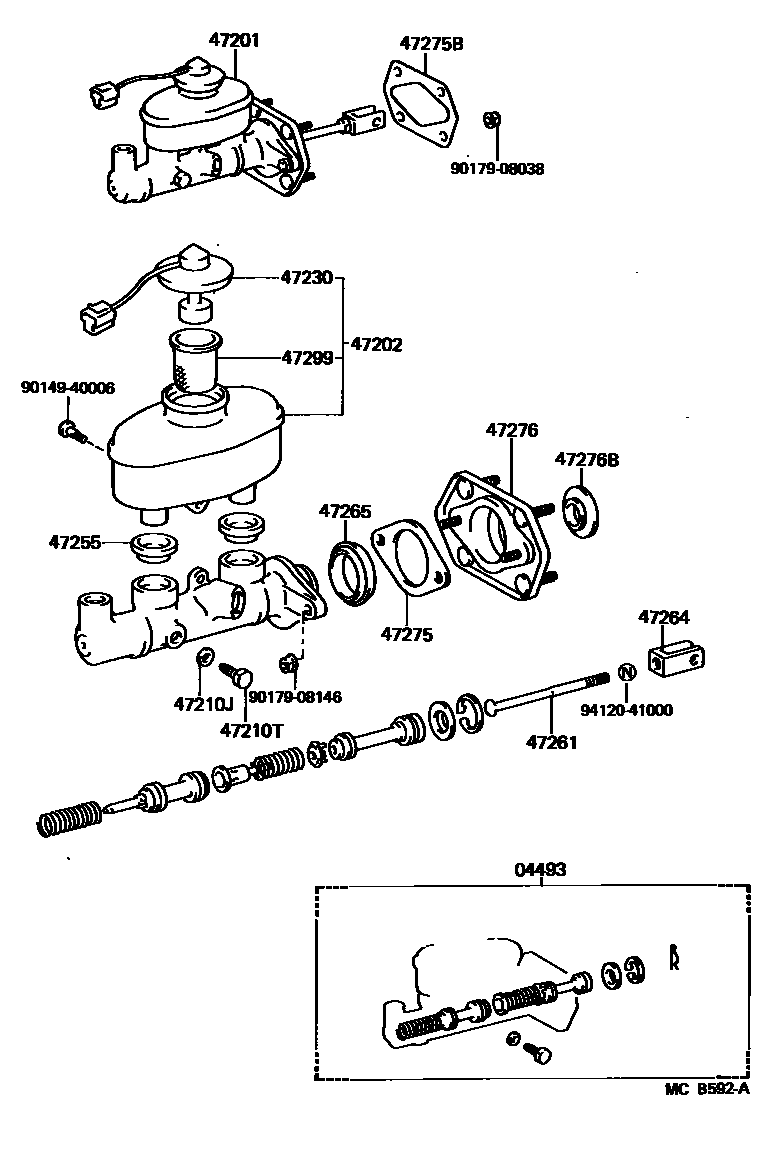

BRAKE MASTER CYLINDER

0001 1 0002 1

04493CYLINDER KIT, BRAKE MASTER

main04493-10090iEP7#,NP7#198410-198912

W/BOOSTER

main04493-10100iEP7#..CS,STD198410-198912

W/O BOOSTER

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47200-10270iEP7#..CS,STD198410-198912

main47201-10100iEP7#,NP7#198410-198912

W/BOOSTER

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47202-10050iEP7#,NP7#198410-198912

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iEP7#,NP7#198410-198912

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06077iEP7#,NP7#198410-198912

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main84460-10030iEP7#,NP7#198410-198912

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-10010iEP7#,NP7#198410-198912

47261ROD, MASTER CYLINDER PUSH

main47261-10040iEP7#..4F..(CD,CS,DX,STD)198410-198912

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-10080iEP71..5F..EFI198612-198912

5 OR 6 INCHES BOOSTER

main47264-10080iEP7#198410-198612

main47264-10080iEP71..5F..EFI198612-198912

6 INCHES BOOSTER

main47264-20040iEP71..4FC..EFI198612-198912

7 INCHES BOOSTER

47265BOOT, MASTER CYLINDER

main47265-20050iEP7#,NP7#198410-198912

47275GASKET, BRAKE MASTER CYLINDER

main47275-14010iEP7#,NP7#198410-198912

sub47275-26010

47275BGASKET, BRAKE MASTER CYLINDER, NO.2

main47275-10030iEP7#..4F..(CD,CS,DX,STD)198410-198912

47276BRACKET, BRAKE MASTER CYLINDER

main47276-10030iEP7#..4F..(CD,CS,DX,STD)198410-198912

47276BGROMMET(FOR BRAKE MASTER CYLINDER BRACKET)

main90480-22004iEP7#..4F..(CD,CS,DX,STD)198410-198912

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-32010iEP7#,NP7#198410-198912

9014940006

main90149-40006

9017908038

main90179-08038

9017908146

main90179-08146

9412041000

main94120-41000

19 parts on this diagram · 2 diagrams in section
